Steering Pad Switch Circuit: Wiring Diagram

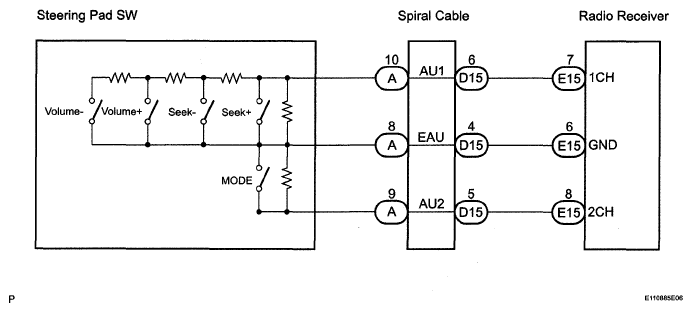

Fig 1: Steering Pad Switch Circuit Diagram

G05006217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
