Forward Clutch: Components

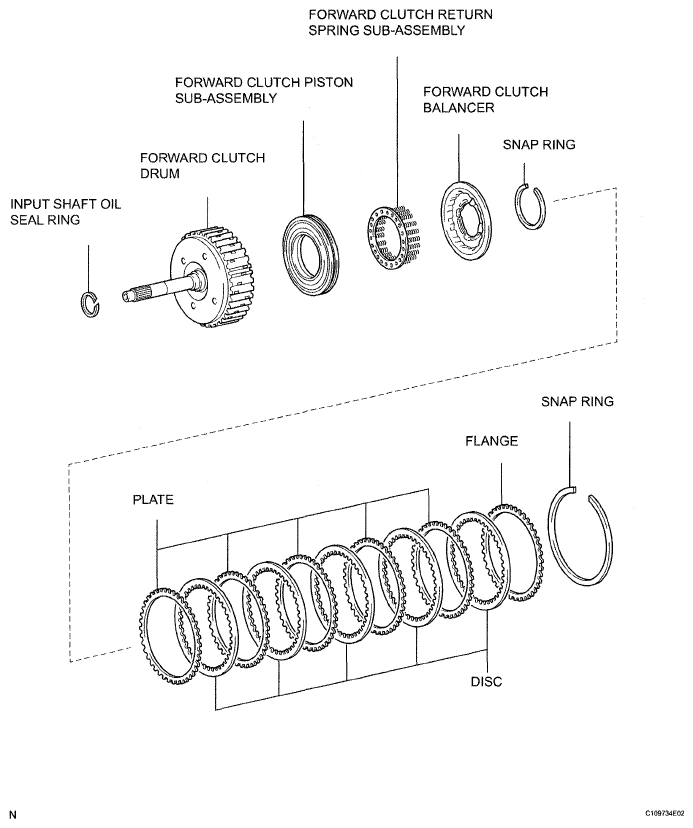

Fig 1: Identifying Forward Clutch Components
G05000989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
