Transmission Control Switch Circuit: Wiring Diagram

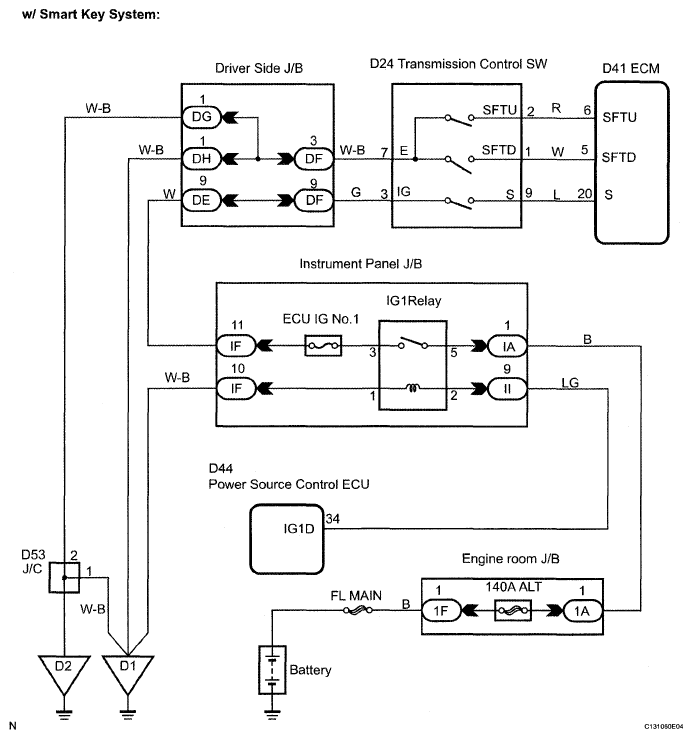

Fig 1: Transmission Control Switch Circuit - Wiring Diagram (1 Of 2)
G05000554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

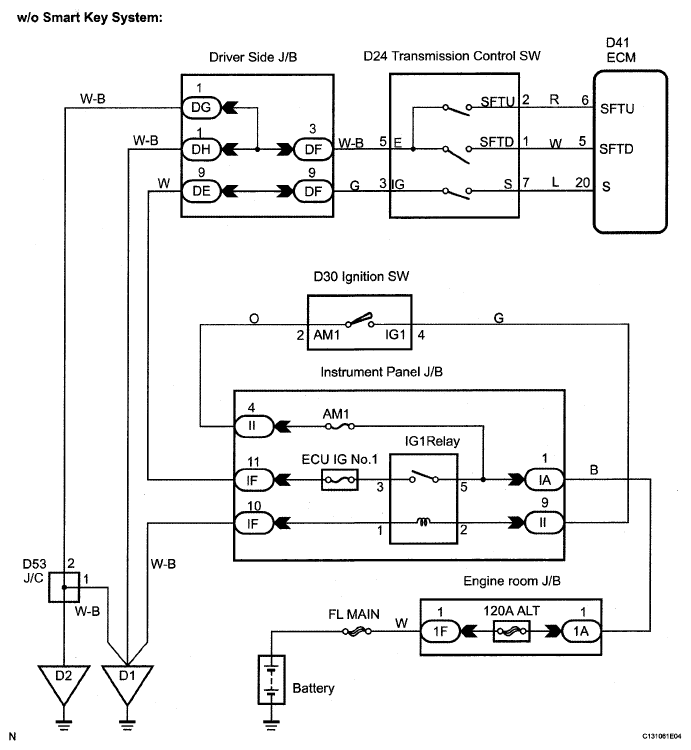

Fig 2: Transmission Control Switch Circuit - Wiring Diagram (2 Of 2)
G05000555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
