DTC B2278 Engine Switch Circuit Malfunction: Wiring Diagram

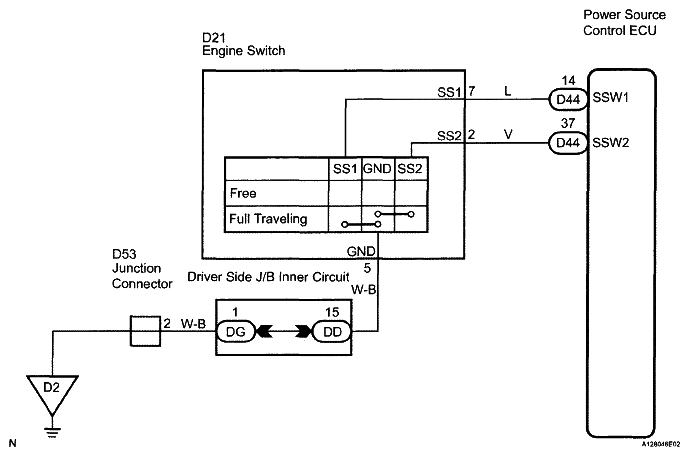

Fig 1: Engine Switch Circuit Malfunction - Wiring Diagram

G05000355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
