Water Pump: Components

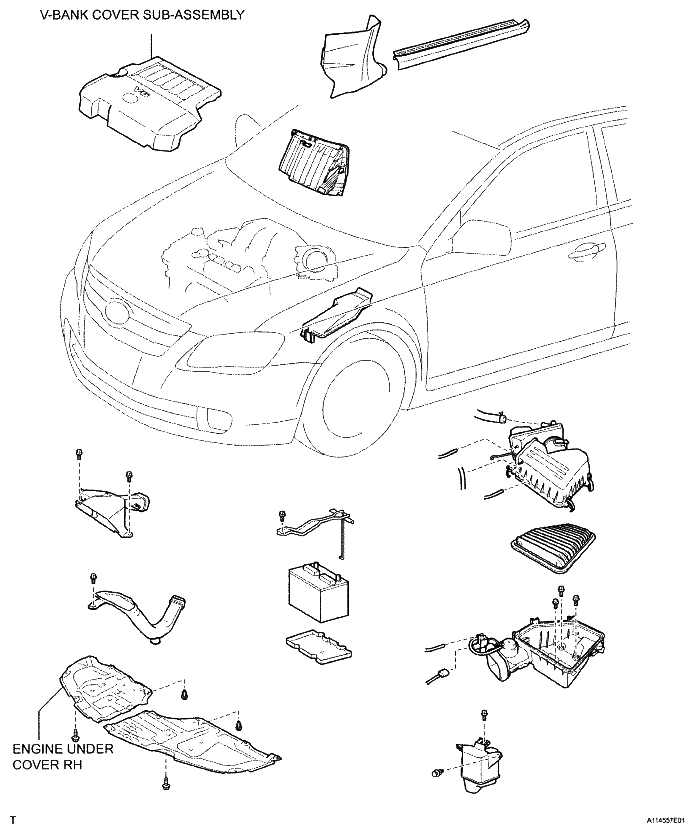

Fig 1: Identifying Water Pump Components (1 Of 7)
G05000190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

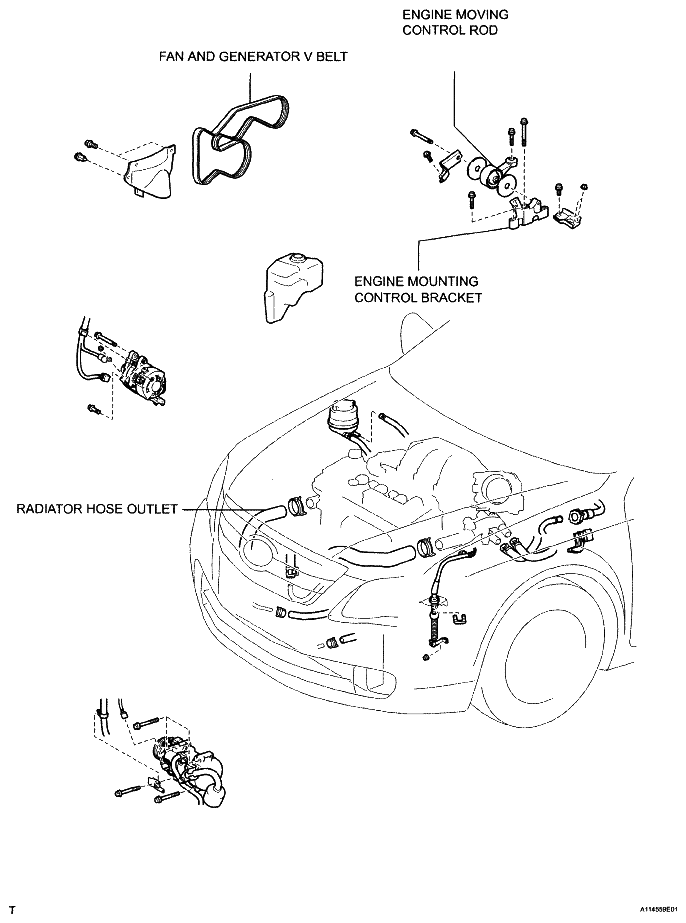

Fig 2: Identifying Water Pump Components (2 Of 7)
G05000191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

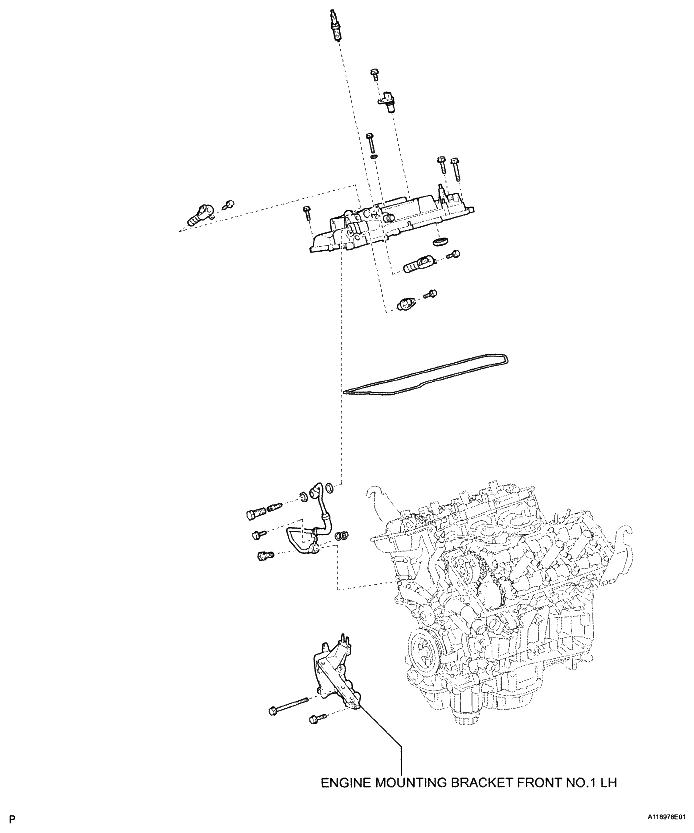

Fig 3: Identifying Water Pump Components (3 Of 7)
G05000192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

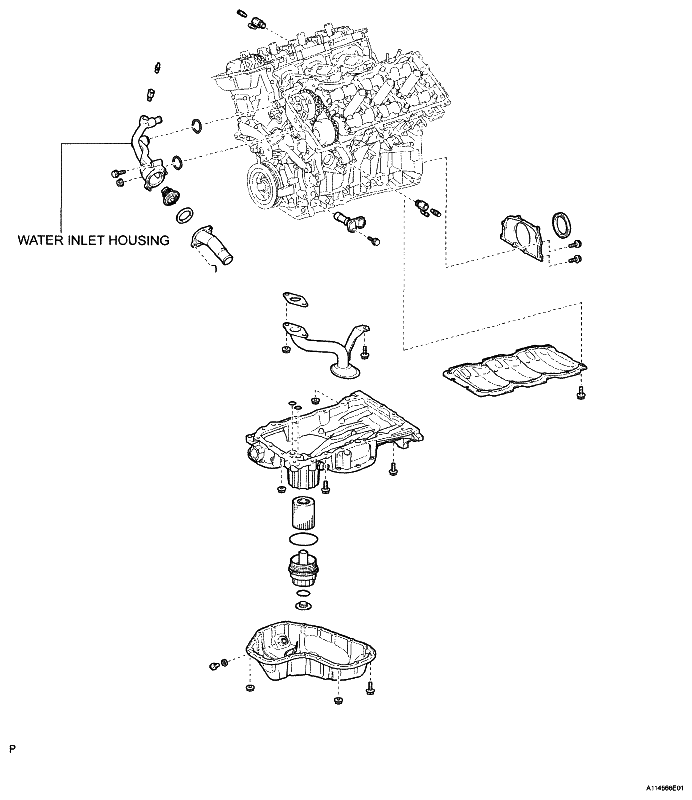

Fig 4: Identifying Water Pump Components (4 Of 7)
G05000193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

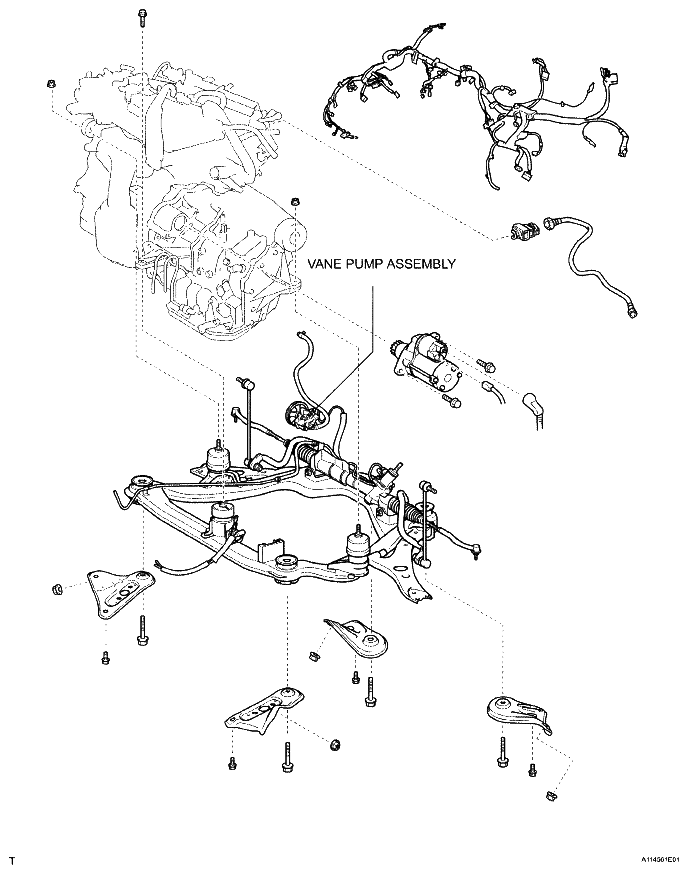

Fig 5: Identifying Water Pump Components (5 Of 7)
G05000194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

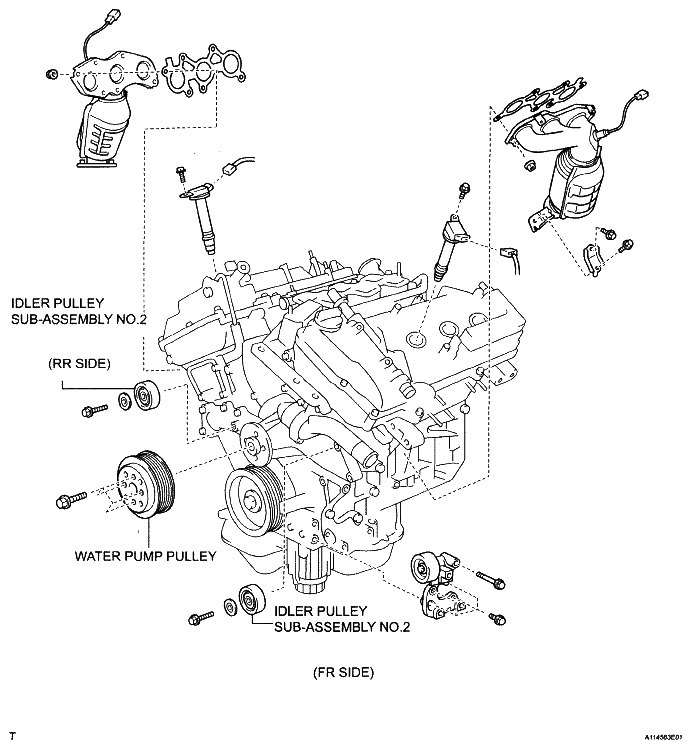

Fig 6: Identifying Water Pump Components (6 Of 7)
G05000195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

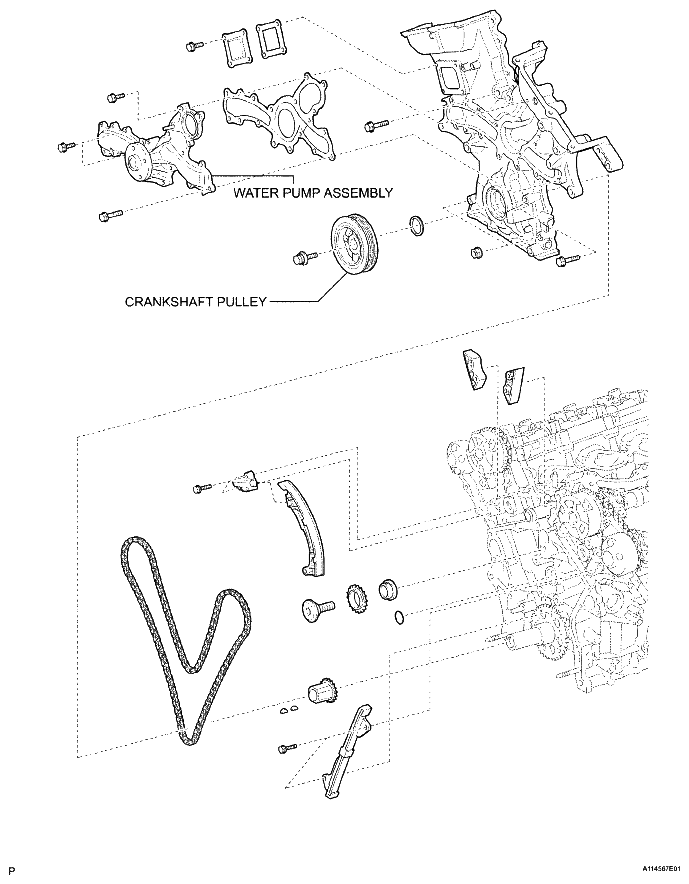

Fig 7: Identifying Water Pump Components (7 Of 7)
G05000196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
