Engine Cooling System: Radiator: Components

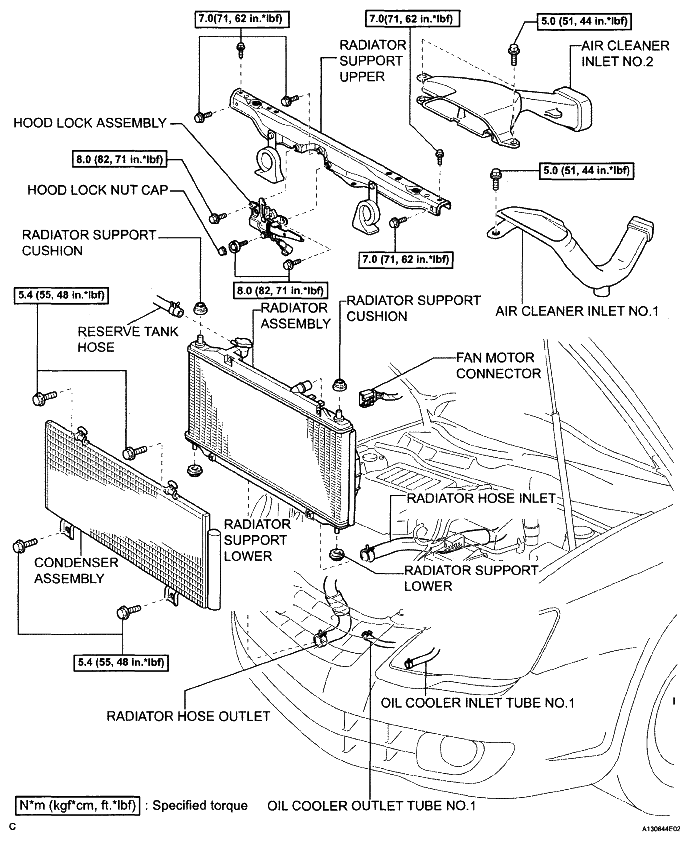

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 2)
G05000222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

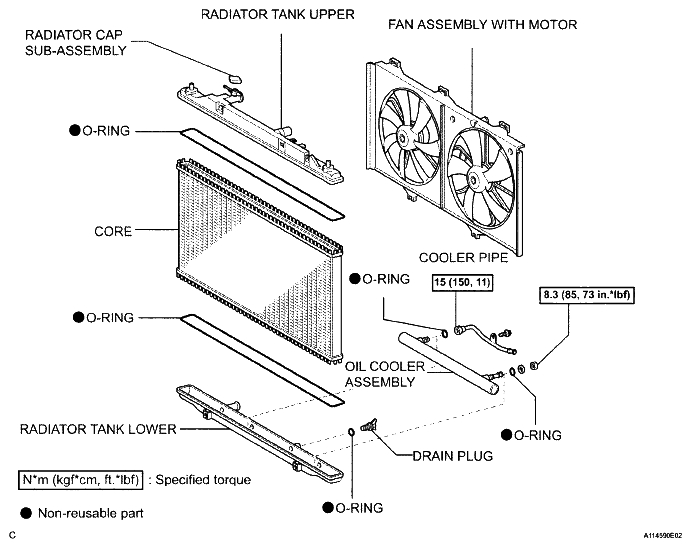

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 2)
G05000223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
