Power Seat for Front Passenger'S Seat: Notes

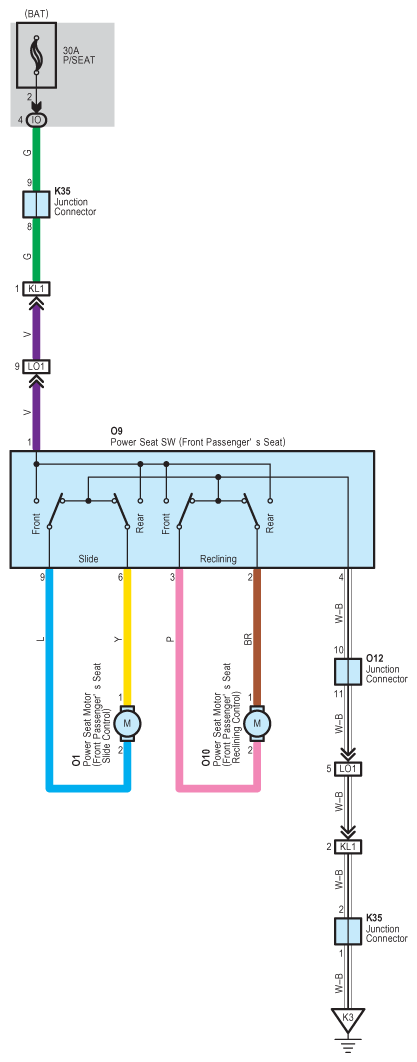

Fig 1: Power Seat System For Front Passenger's Seat Wiring Diagram

G08780870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
