ID Code Box Power Source Circuit: Wiring Diagram

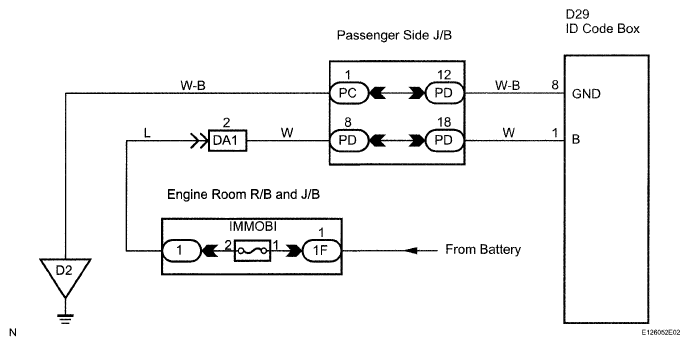

Fig 1: ID Code Box Power Source Circuit Diagram

G05006075

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
