Certification ECU Power Source Circuit: Wiring Diagram

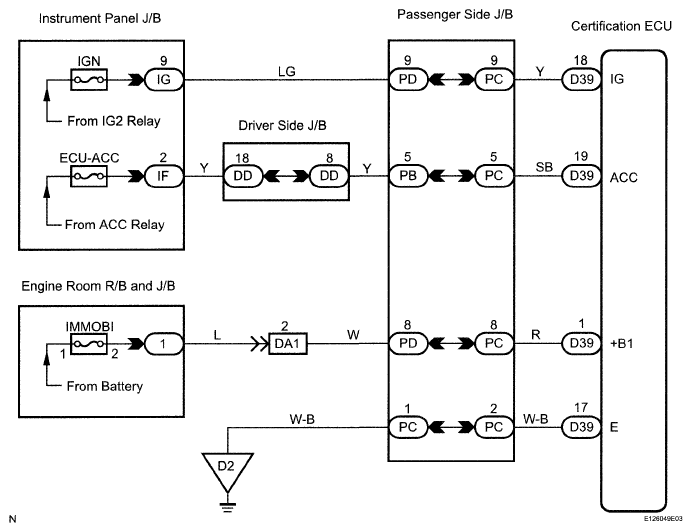

Fig 1: Certification ECU Power Source Circuit Diagram

G05006077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
