Inspection Procedure

1. Check the DATA LIST for proper functioning of the door unlock detection switch.

   Body ECU:

   DATA LIST REFERENCE CHART



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   P LOCK POS SW	Door unlock detection switch signal / ON or OFF	ON: Door is unlocked OFF: Door is locked	-

OK:

"ON" (door is unlocked) appears on the screen.

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE  .

1. Remove the front door lock assembly RH.
2. Measure the resistance of the door unlock detection switch.

   Resistance

   RESISTANCE REFERENCE CHART



   Tester Connection	Door Lock Condition	Specified Condition
   Battery positive (+) → Terminal 1 Battery negative (-) → Terminal 4	ON (Door lock set to UNLOCK)	7 - 8 (Below 1 Ω)
   Battery positive (+) → Terminal 4 Battery negative (-) → Terminal 1	OFF (Door Lock set to LOCK)	7 - 8 (10 kΩ or higher)

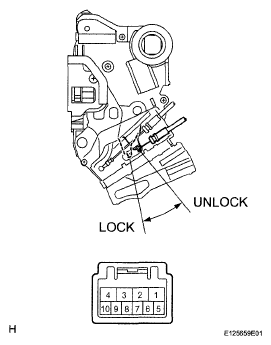

Fig 1: Inspecting Front Door Lock Assembly RH (Door Unlock Detection Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE FRONT DOOR LOCK ASSEMBLY RH

OK: Go to Next Step

1. Disconnect the D6 and G9 connectors.
2. Measure the resistance of the wire harness side connectors.

   Resistance

   RESISTANCE REFERENCE CHART



   Tester Connection	Condition	Specified Condition
   D6-27 (LSWP) - G9-7	Always	Below 1 Ω
   G9-8 - Body ground	Always	Below 1 Ω

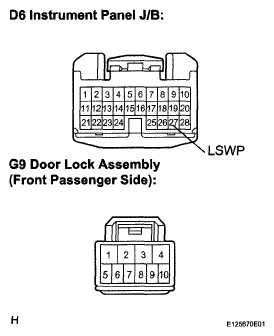

Fig 2: Identifying D6 And G9 Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE  .
