Door Lock Control Switch Circuit: Wiring Diagram

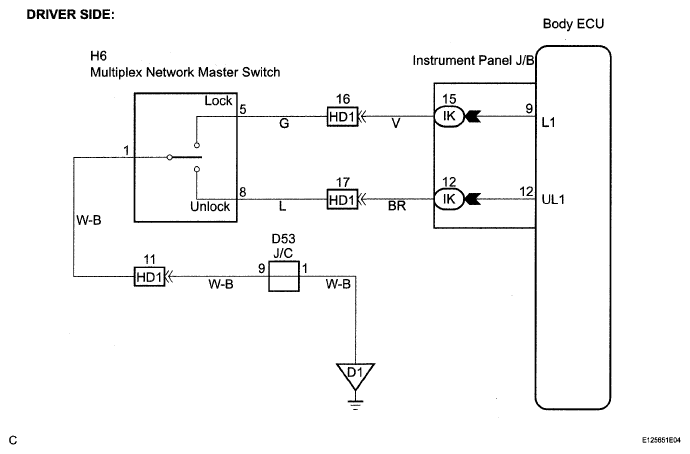

Fig 1: Door Lock Control Switch Circuit Diagram (1 Of 2)
G05005914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

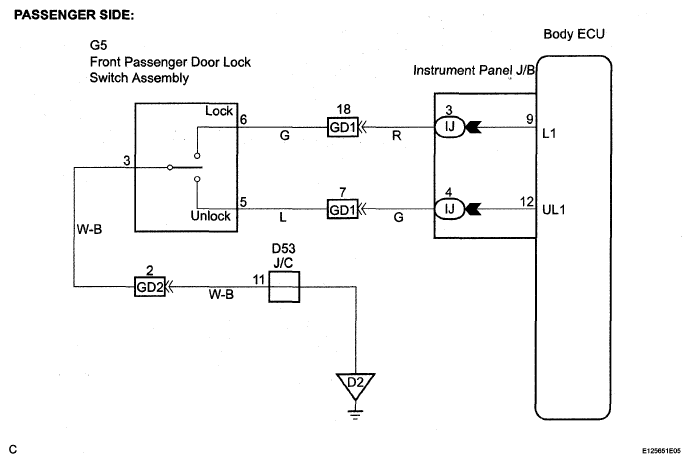

Fig 2: Door Lock Control Switch Circuit Diagram (2 Of 2)
G05005915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
