Door Control Switch: Inspection

1. Remove the multiplex network master switch assembly.
2. Measure the resistance of the door control switch.

   Resistance

   RESISTANCE REFERENCE CHART



   Tester Connection	Condition	Specified Condition
   1 - 5	Lock	Below 1 Ω
   1 - 5 1 - 8	OFF	10 kΩ or higher
   1 - 8	Unlock	Below 1 Ω

   If the result is not as specified, replace the switch assembly.

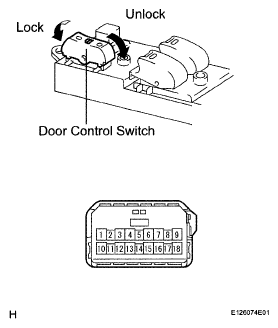

Fig 1: Removing Multiplex Network Master Switch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the door lock control switch assembly.
2. Measure the resistance of the switch.

   Resistance

   RESISTANCE REFERENCE CHART



   Tester Connection	Switch Condition	Specified Condition
   3 - 6	Lock	Below 1 Ω
   3 - 5 3 - 6	OFF	10 kΩ or higher
   3 - 5	Unlock	Below 1 Ω

If the result is not as specified, replace the switch assembly.

Fig 2: Inspecting Door Lock Control Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
