Home >> Toyota >> 2007 >> 4Runner Limited, 4.7 T, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transmission Control System - A750F >> Transmission Wire >> Components

Transmission Wire: Components

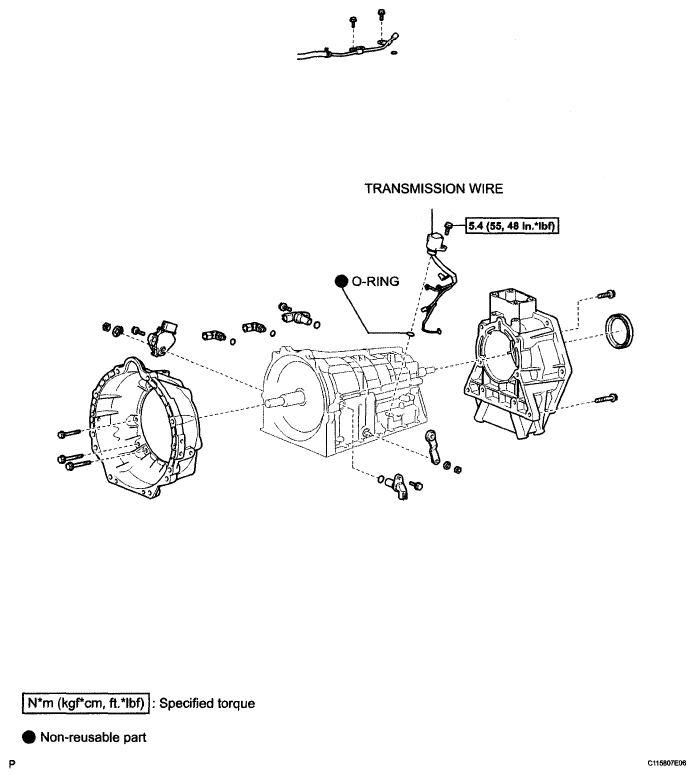

Fig 1: Transmission Wire Replacement Components With Torque Specifications

G04964927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
