Speed Sensor: Components

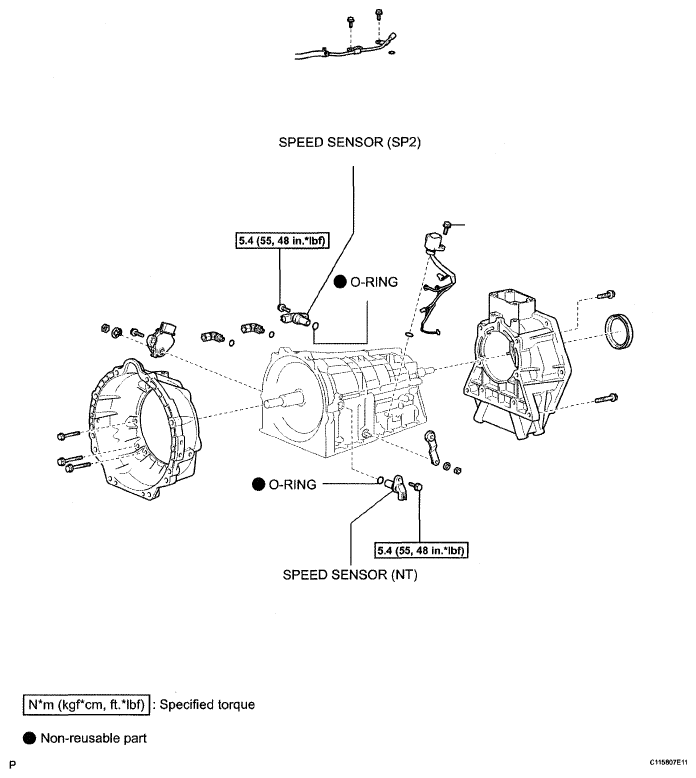

Fig 1: Speed Sensor Replacement Components With Torque Specifications

G04964922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
