Throttle Body: Components

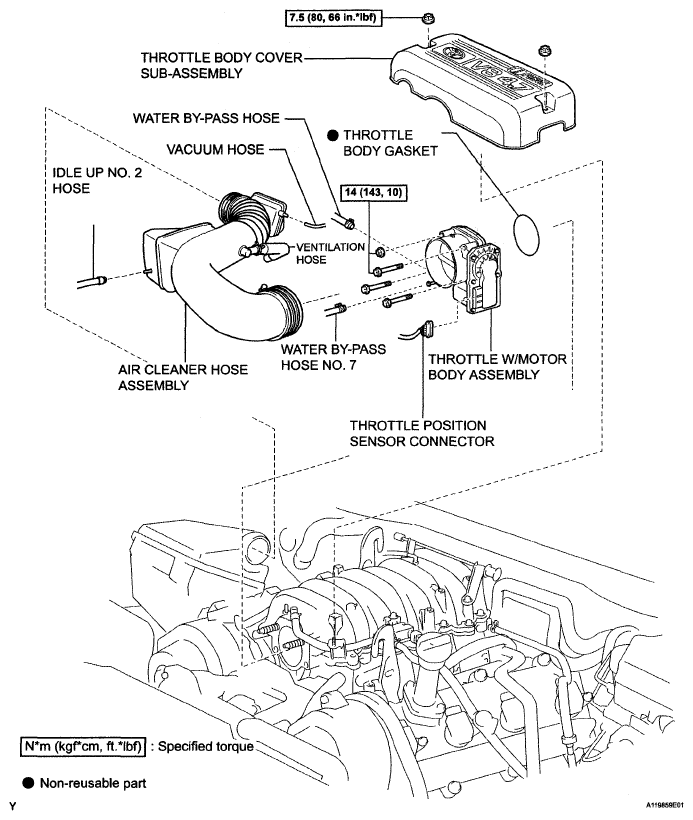

Fig 1: Identifying Throttle Body Components With Tightening Torque

G04968221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
