Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

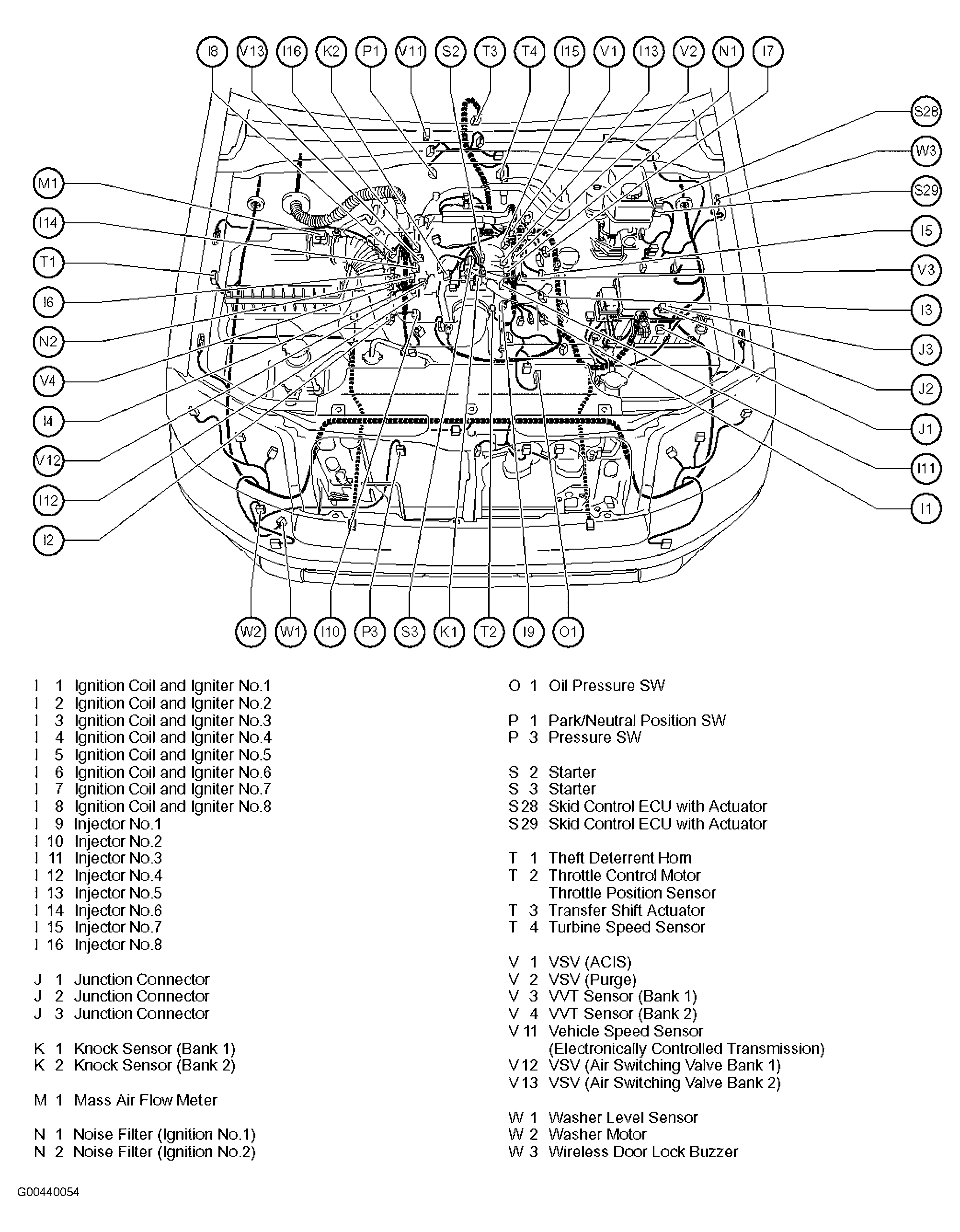

Fig 1: Engine Compartment (4.7L)

G00440054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

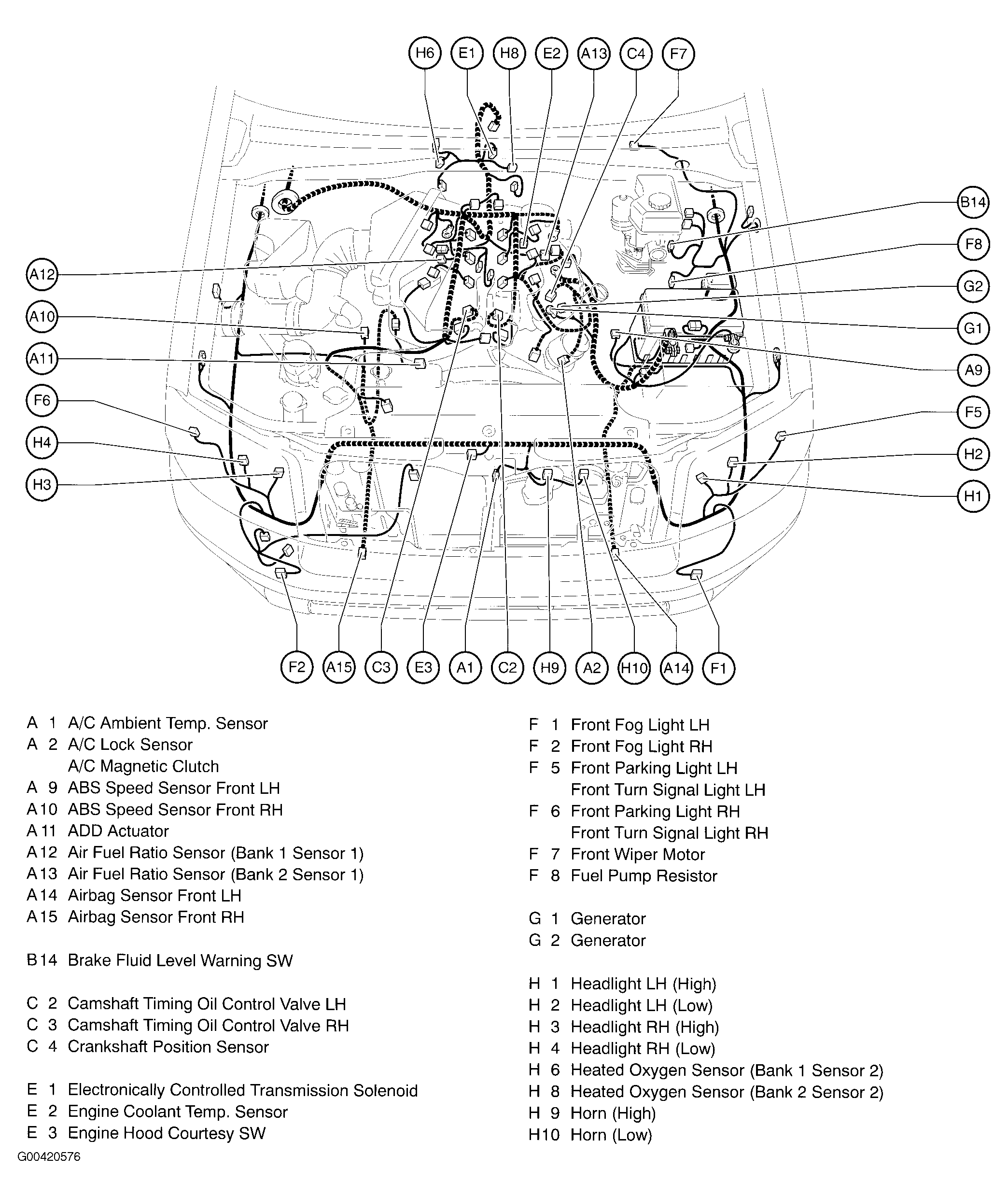

Fig 2: Engine Compartment (4.0L)

G00420576

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

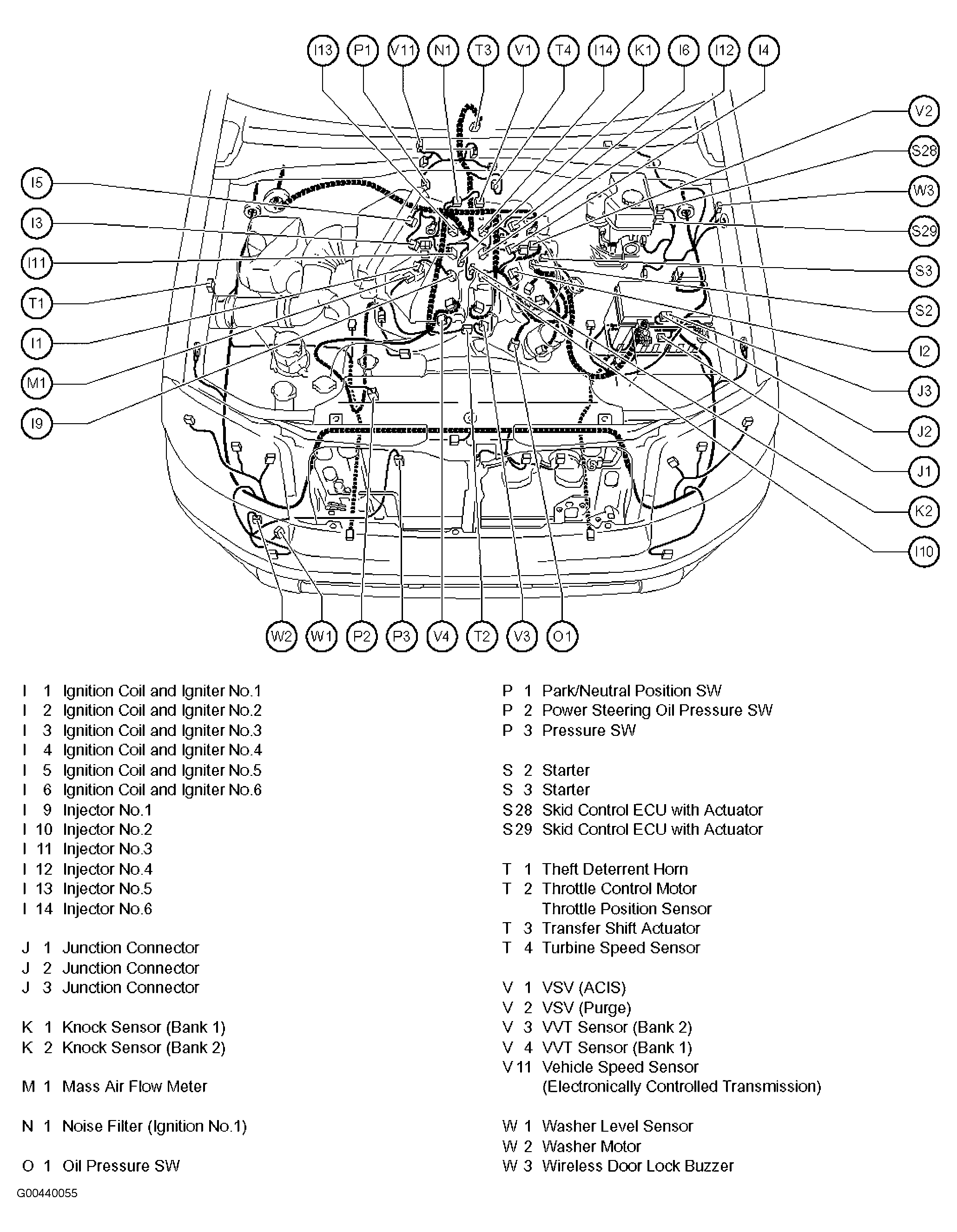

Fig 3: Engine Compartment (4.0L)

G00440055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

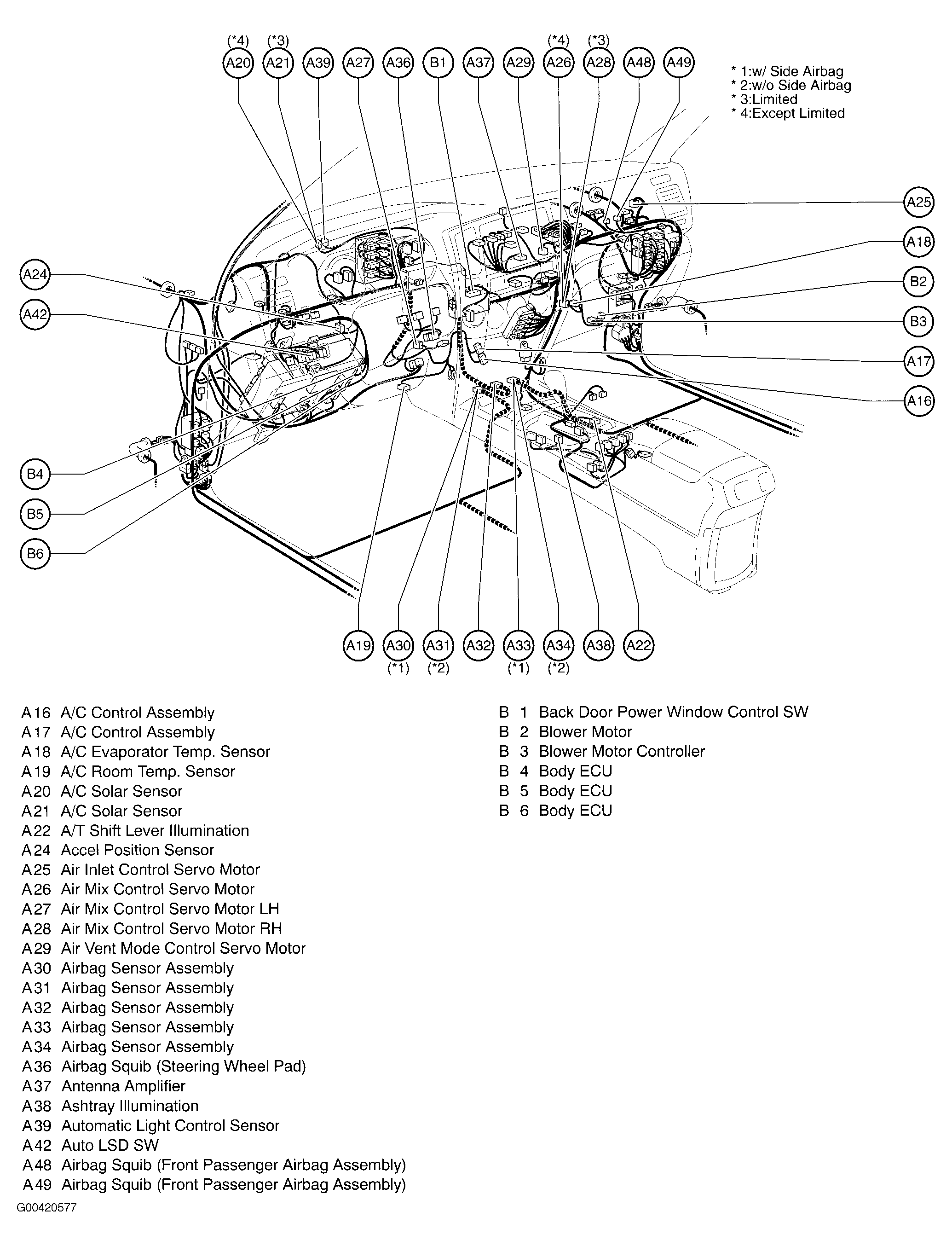

Fig 4: Dash

G00420577

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

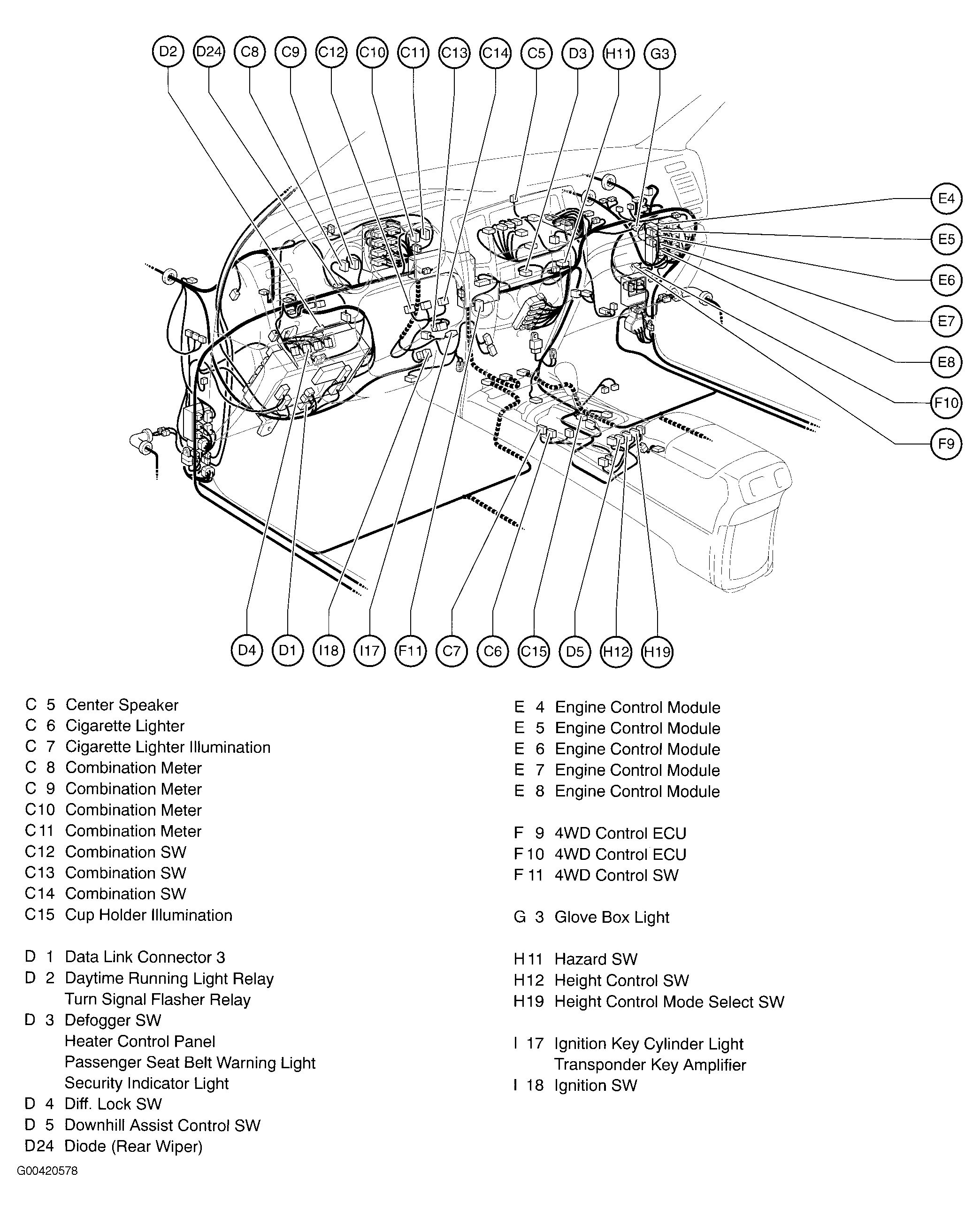

Fig 5: Dash

G00420578

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

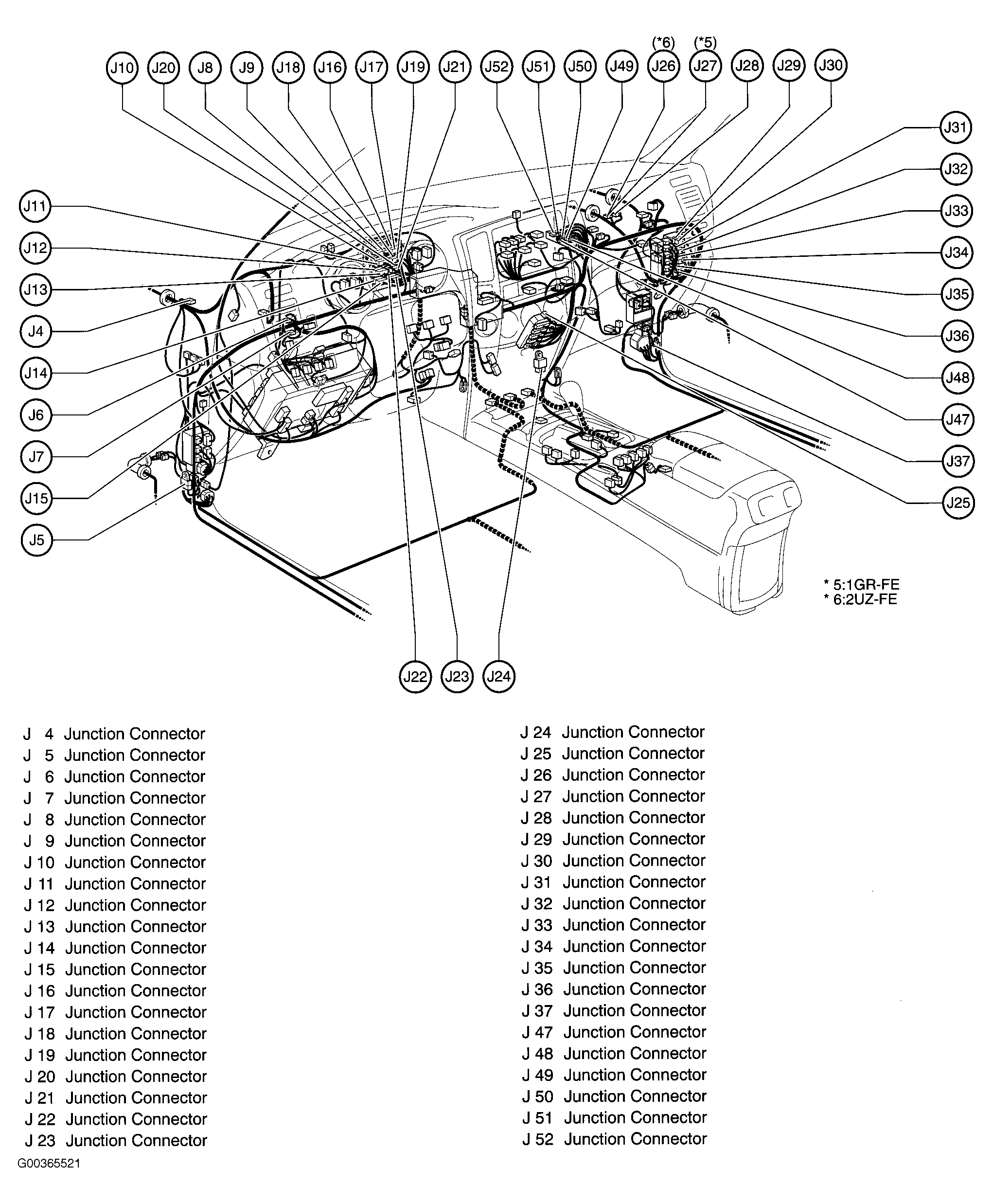

Fig 6: Dash

G00365521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

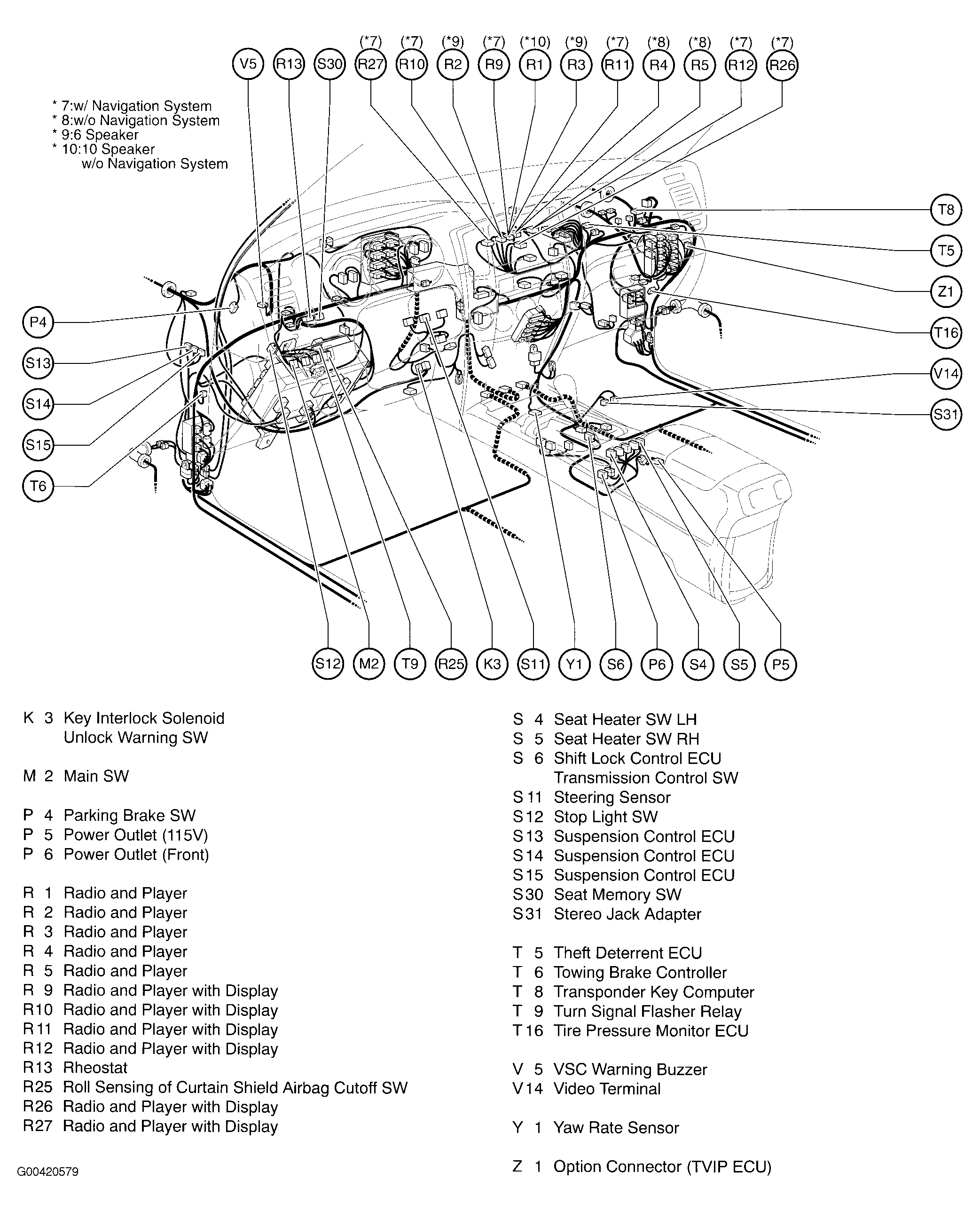

Fig 7: Dash

G00420579

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

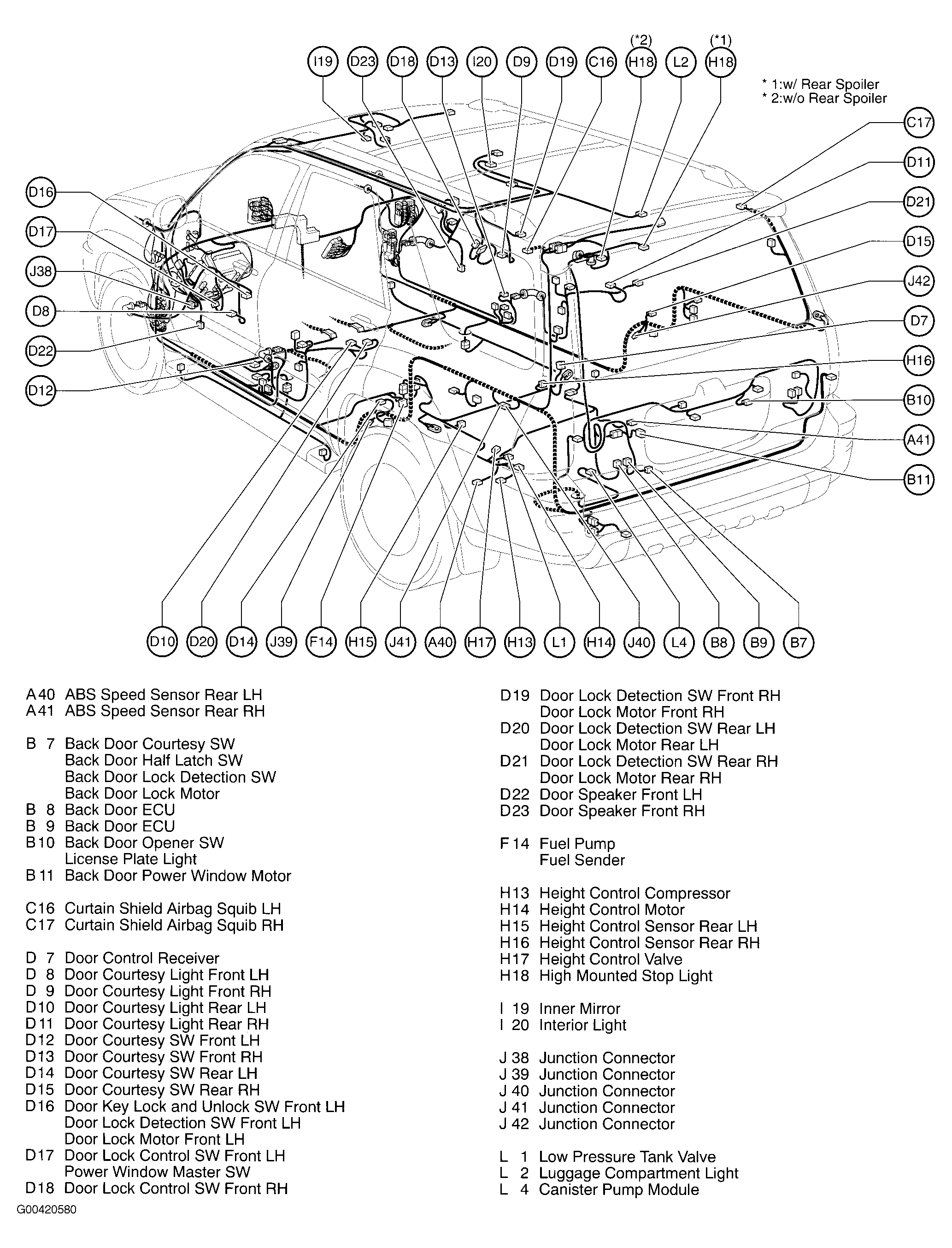

Fig 8: Vehicle Overview

G00420580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

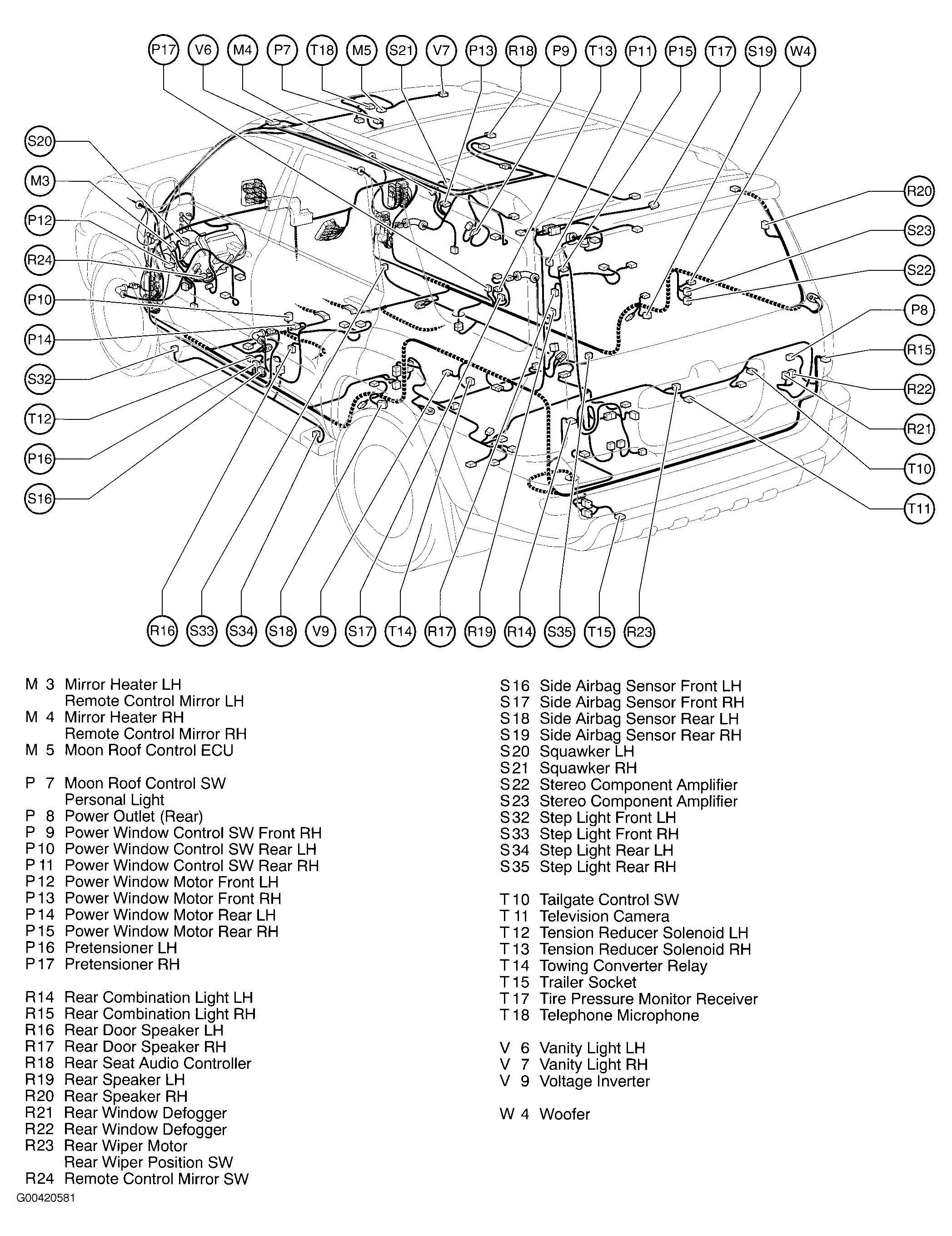

Fig 9: Vehicle Overview

G00420581

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

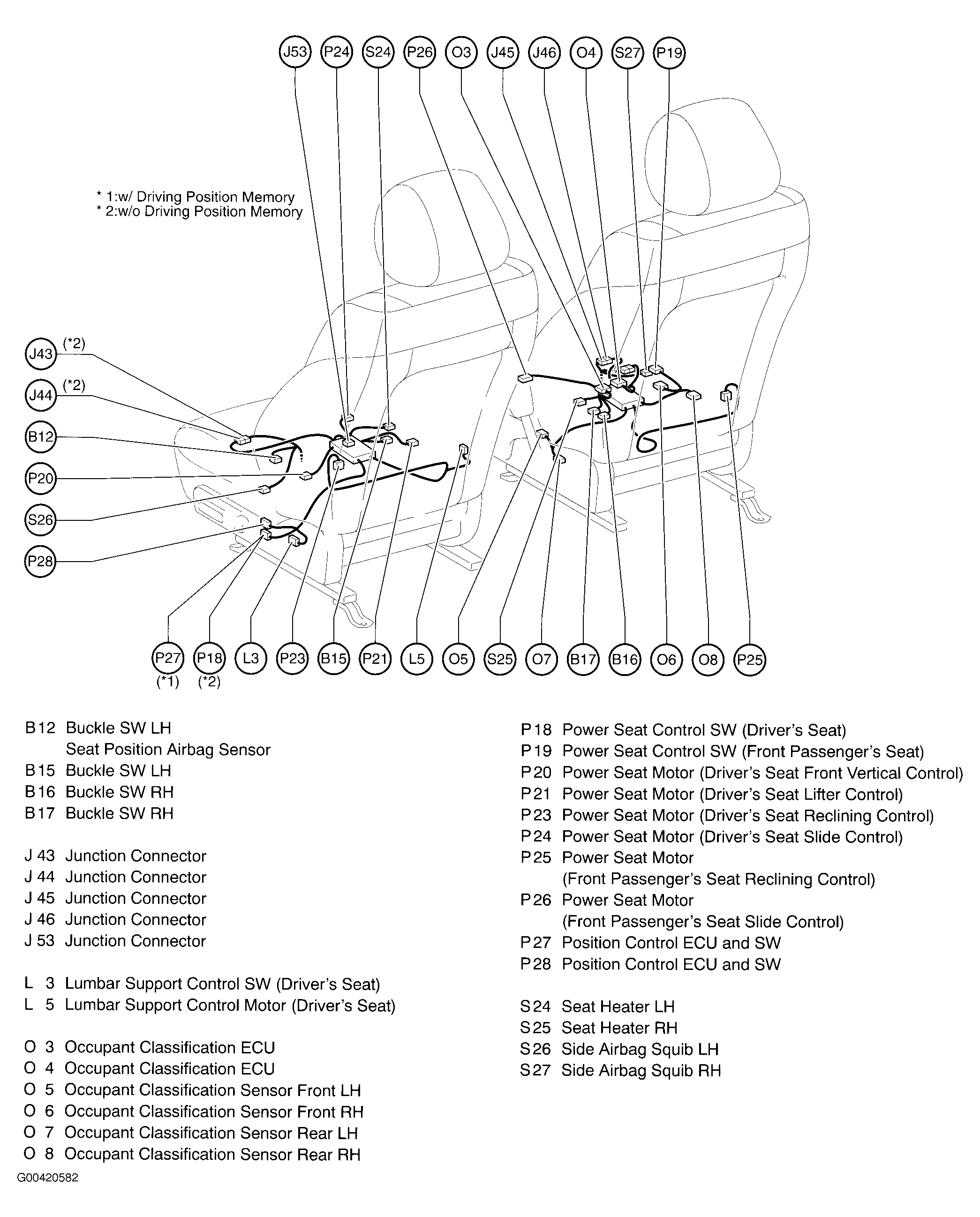

Fig 10: Front Seats (Power Seats)

G00420582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

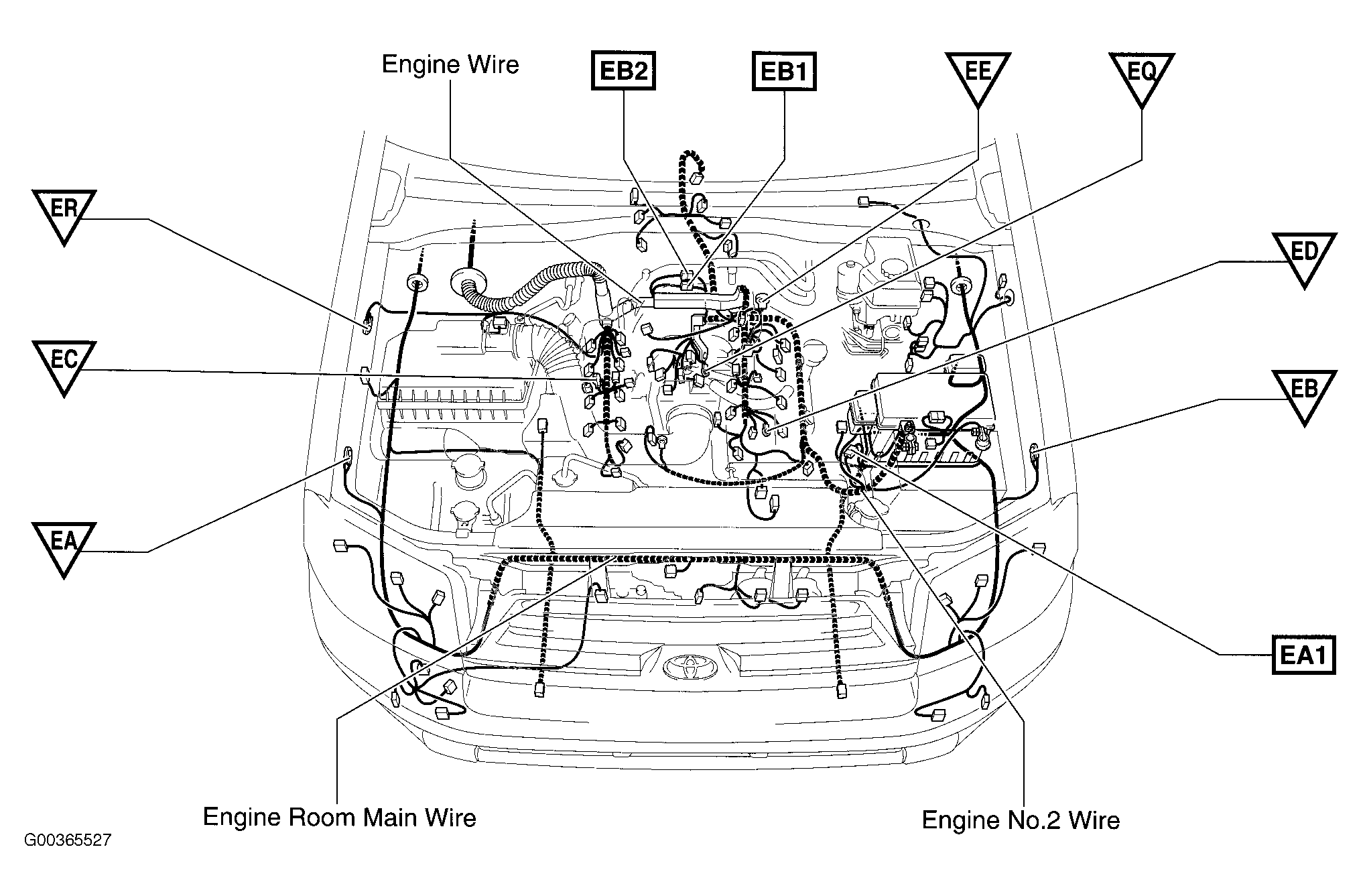

Fig 11: Engine Compartment (4.7L)

G00365527

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

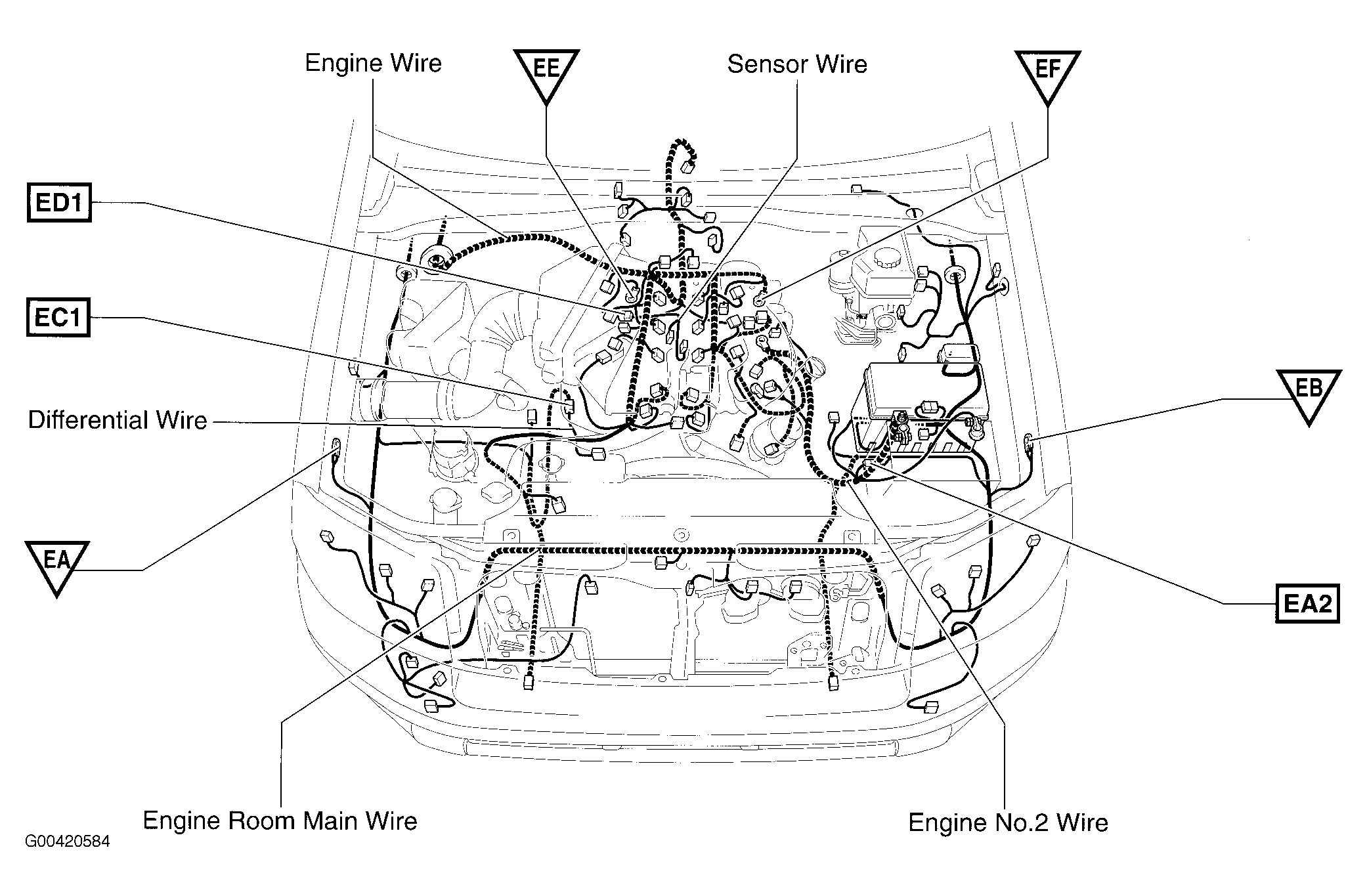

Fig 12: Engine Compartment (4.0L)

G00420584

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

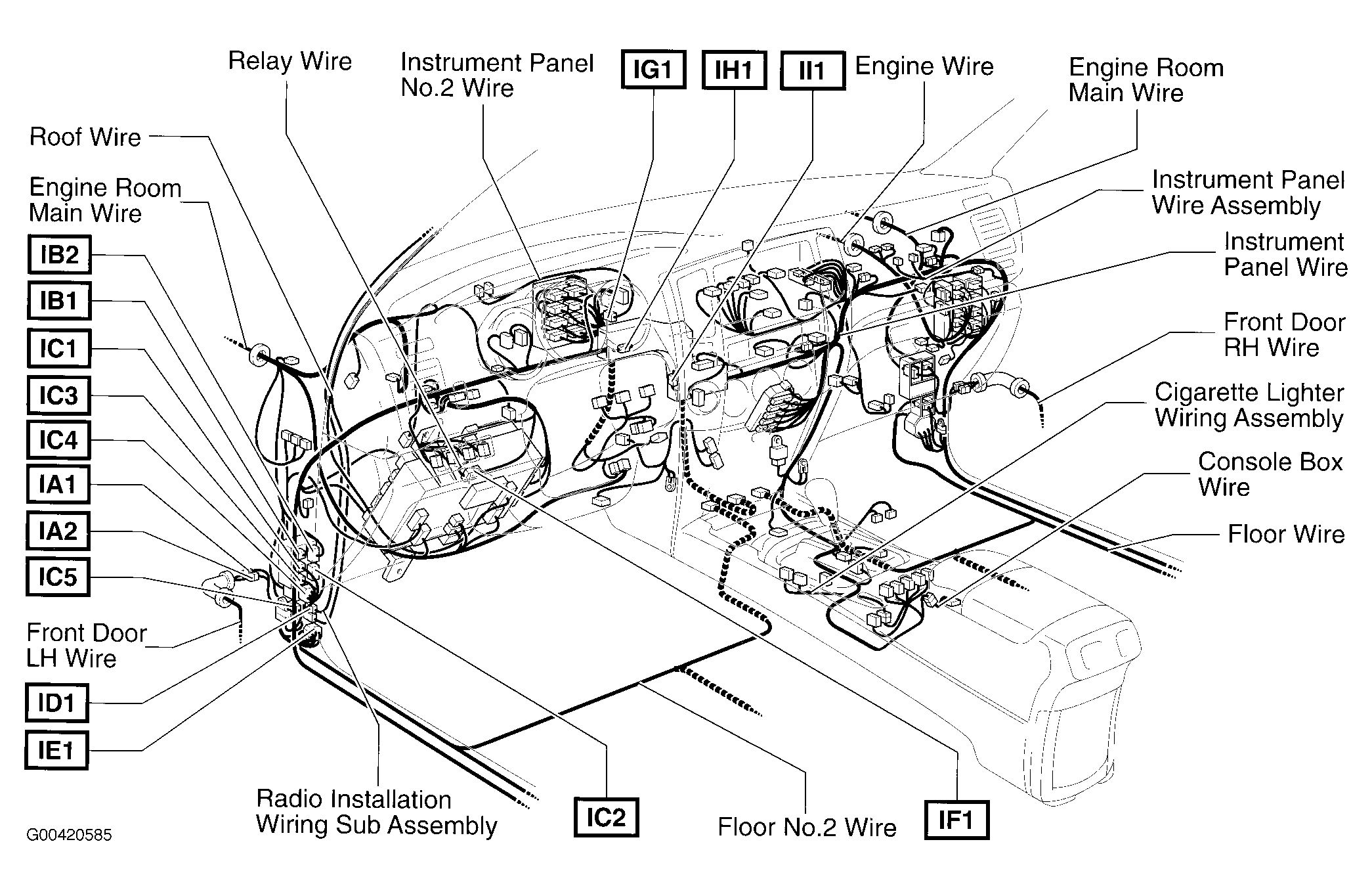

Fig 13: Dash

G00420585

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dash

G00257754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

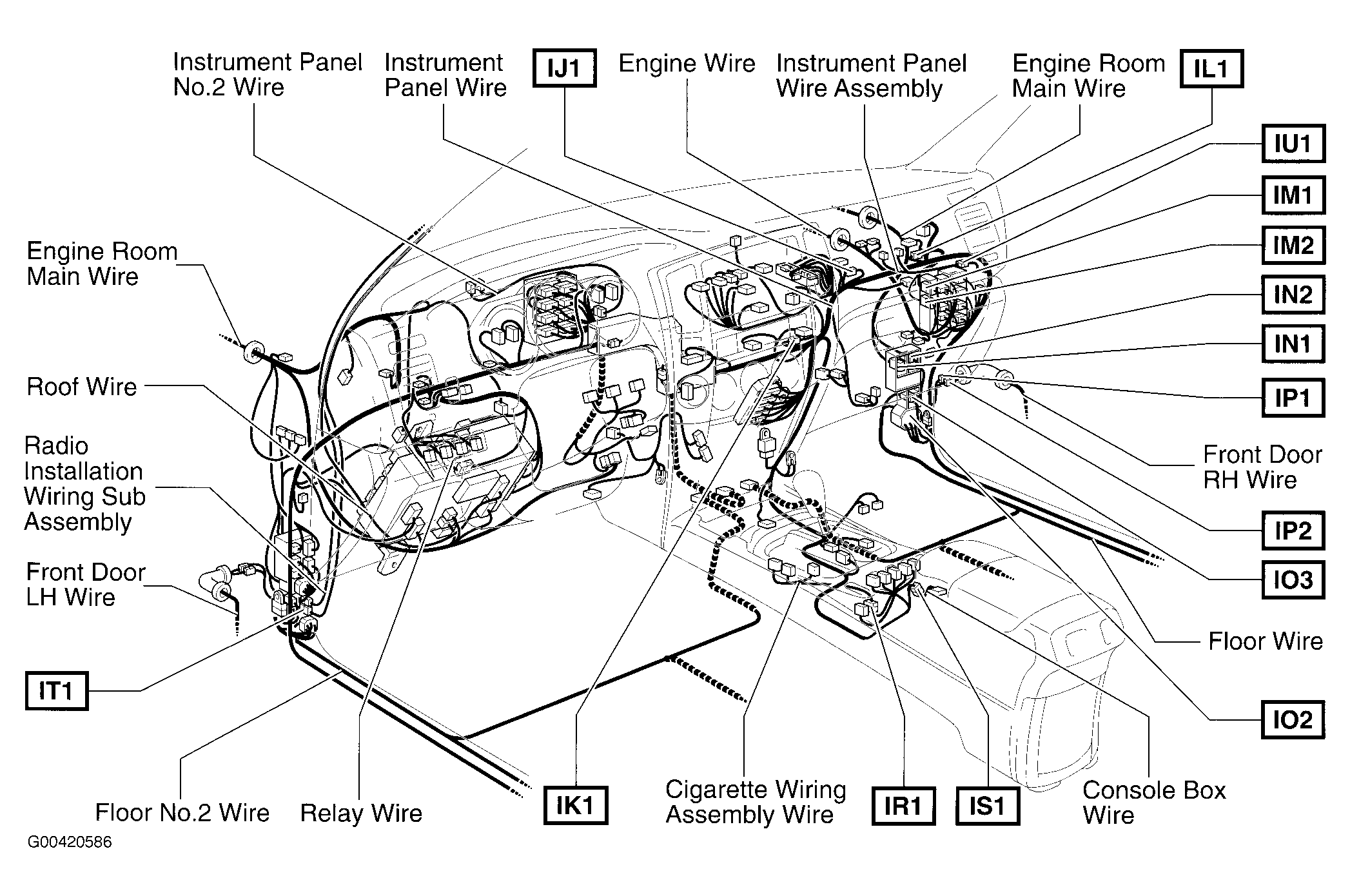

Fig 15: Dash

G00420586

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

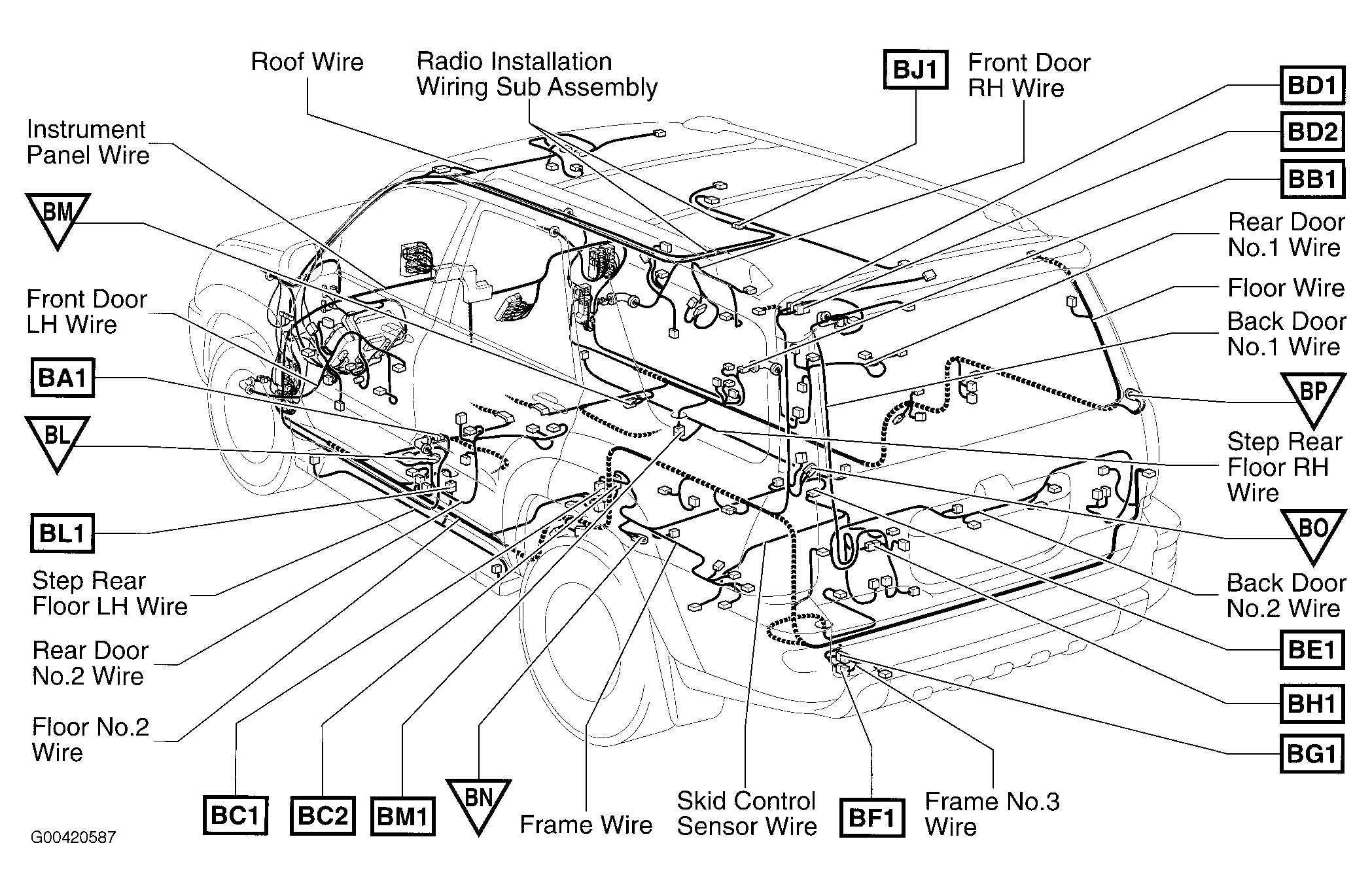

Fig 16: Vehicle Overview

G00420587

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Engine Compartment

G00365511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

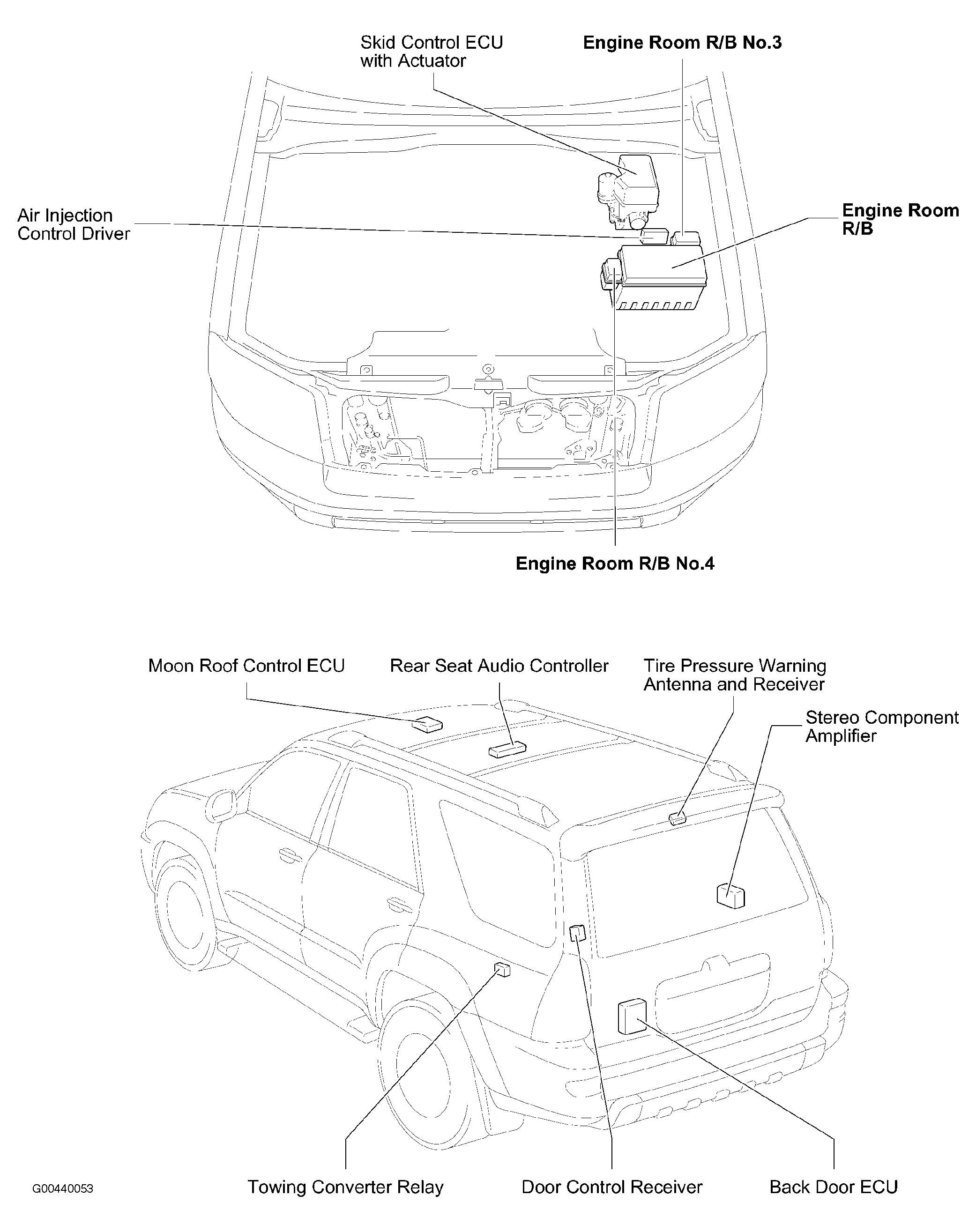

Fig 18: Vehicle Overview

G00440053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Dash

G00365512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

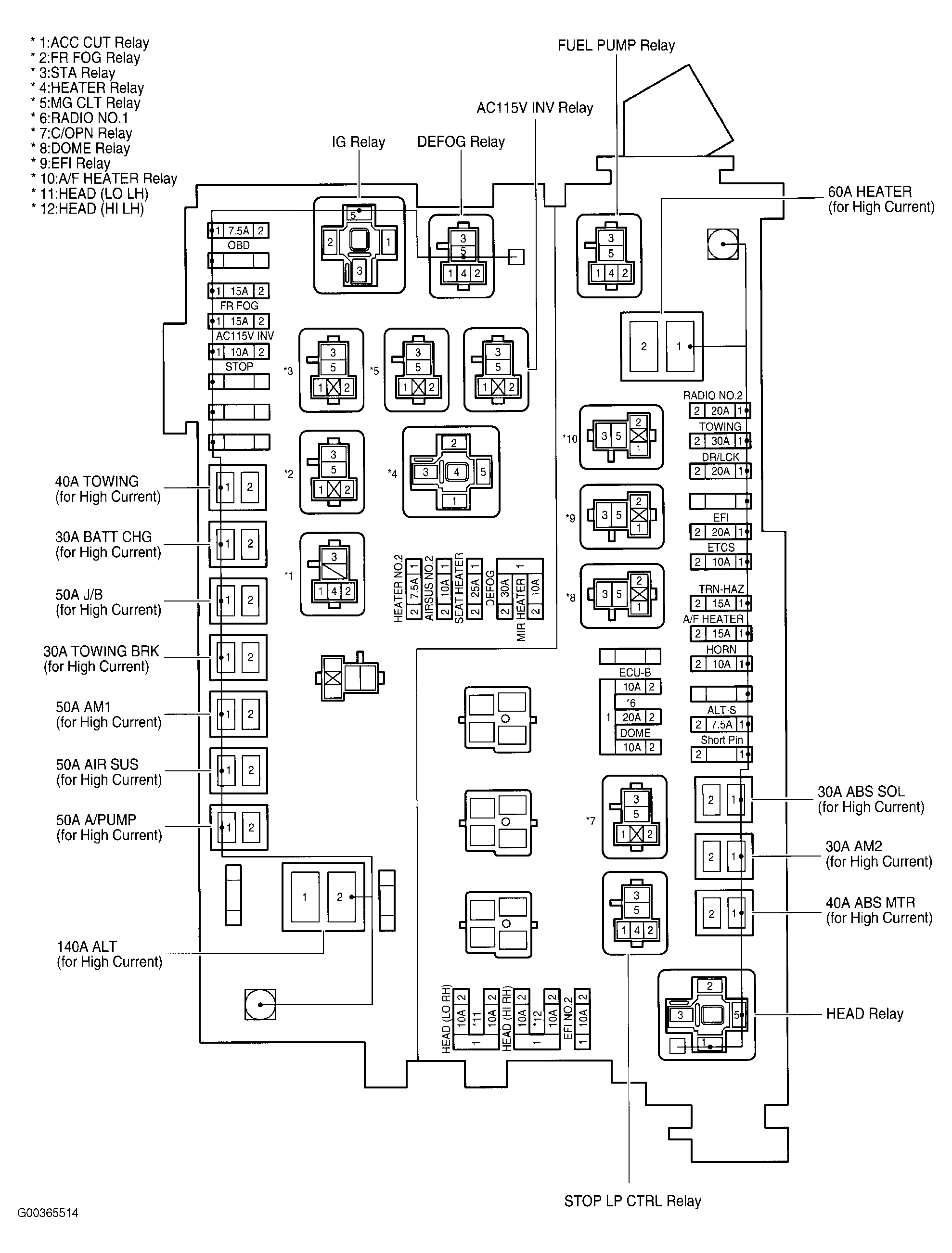

Fig 20: Engine Room R/B

G00365514

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Engine Room R/B No. 3

G00262561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Engine Room R/B No. 4

G00262594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

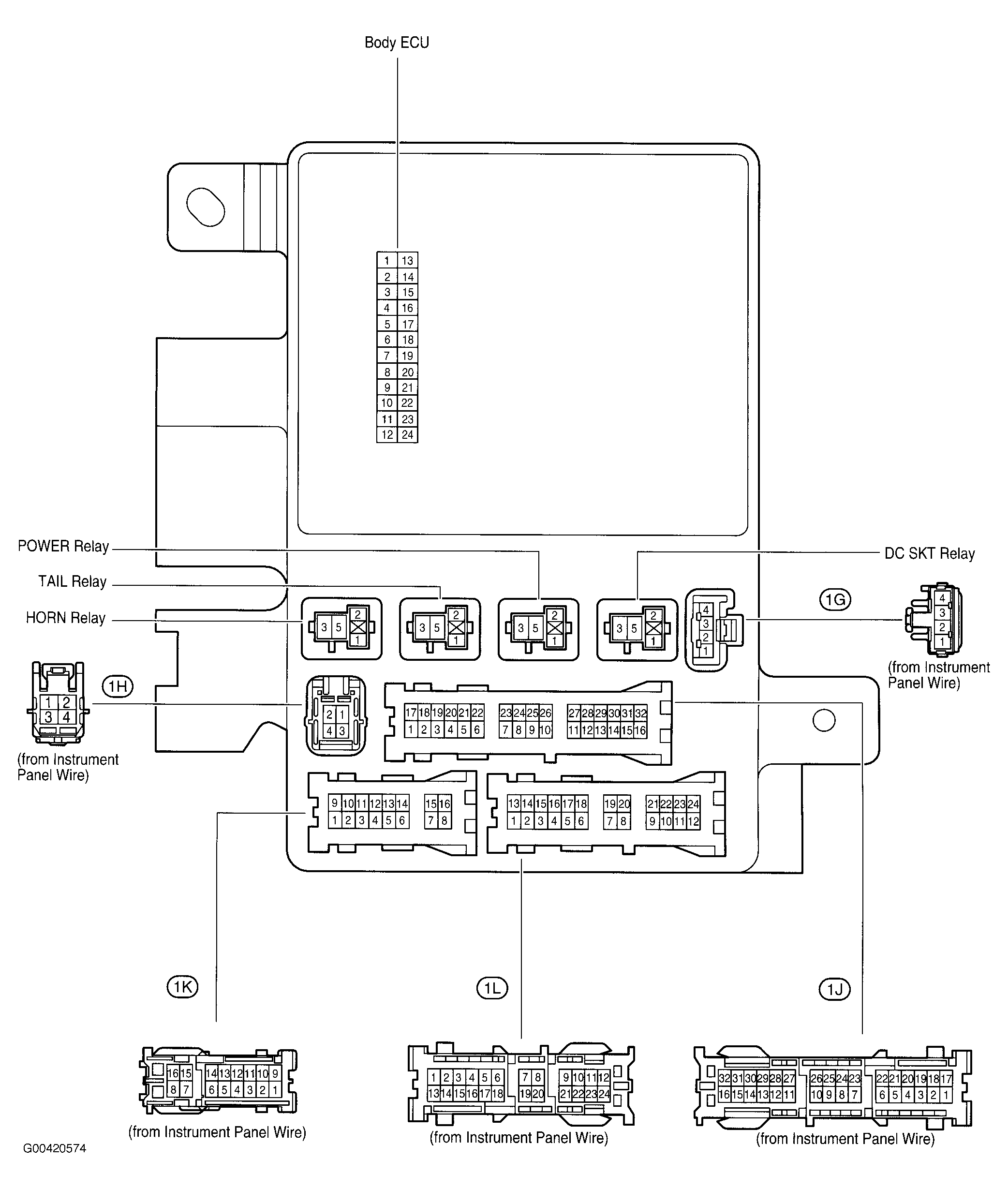

Fig 23: Driver Side J/B

G00420574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Dash

G00262599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

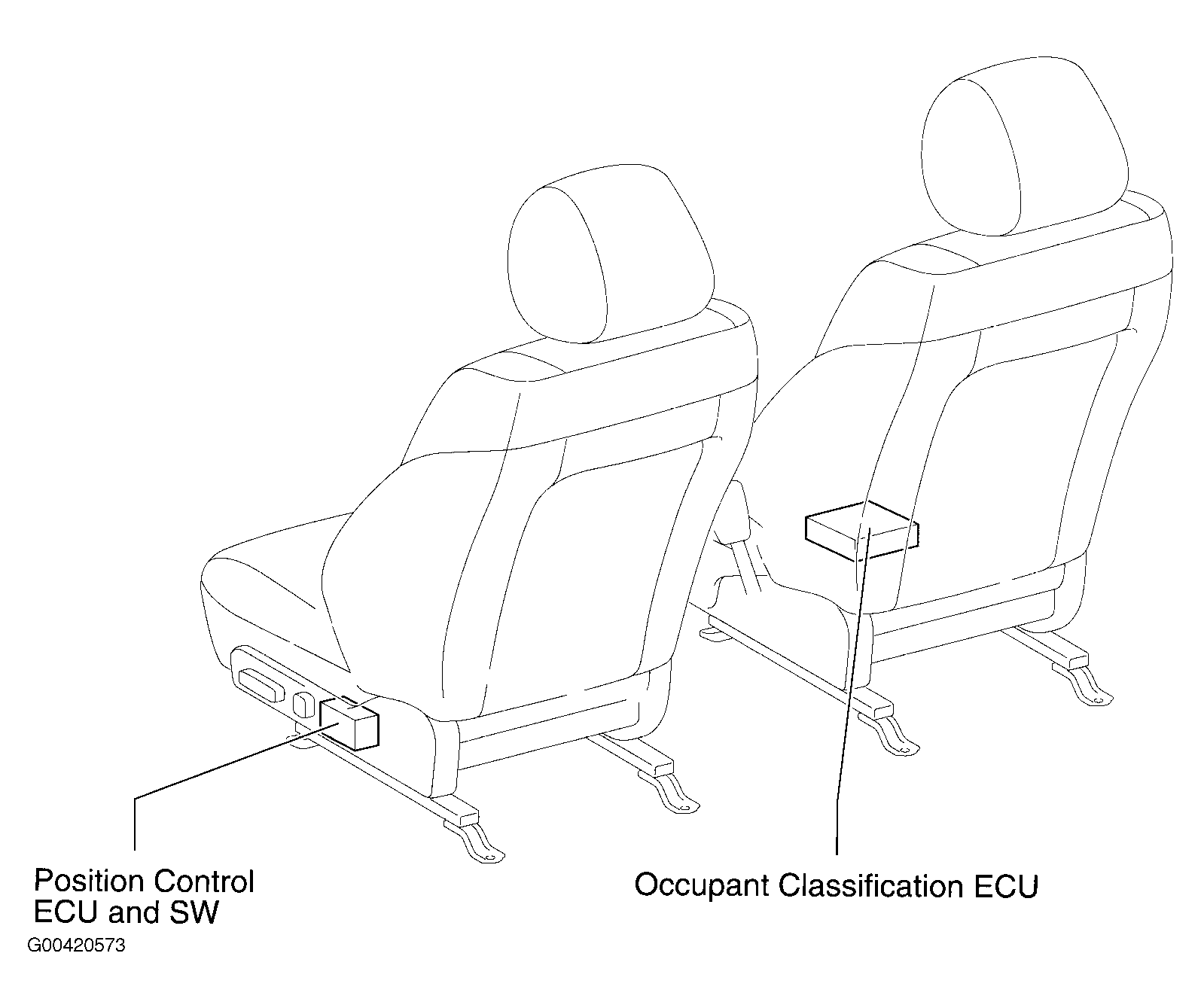

Fig 25: Front Seats

G00420573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

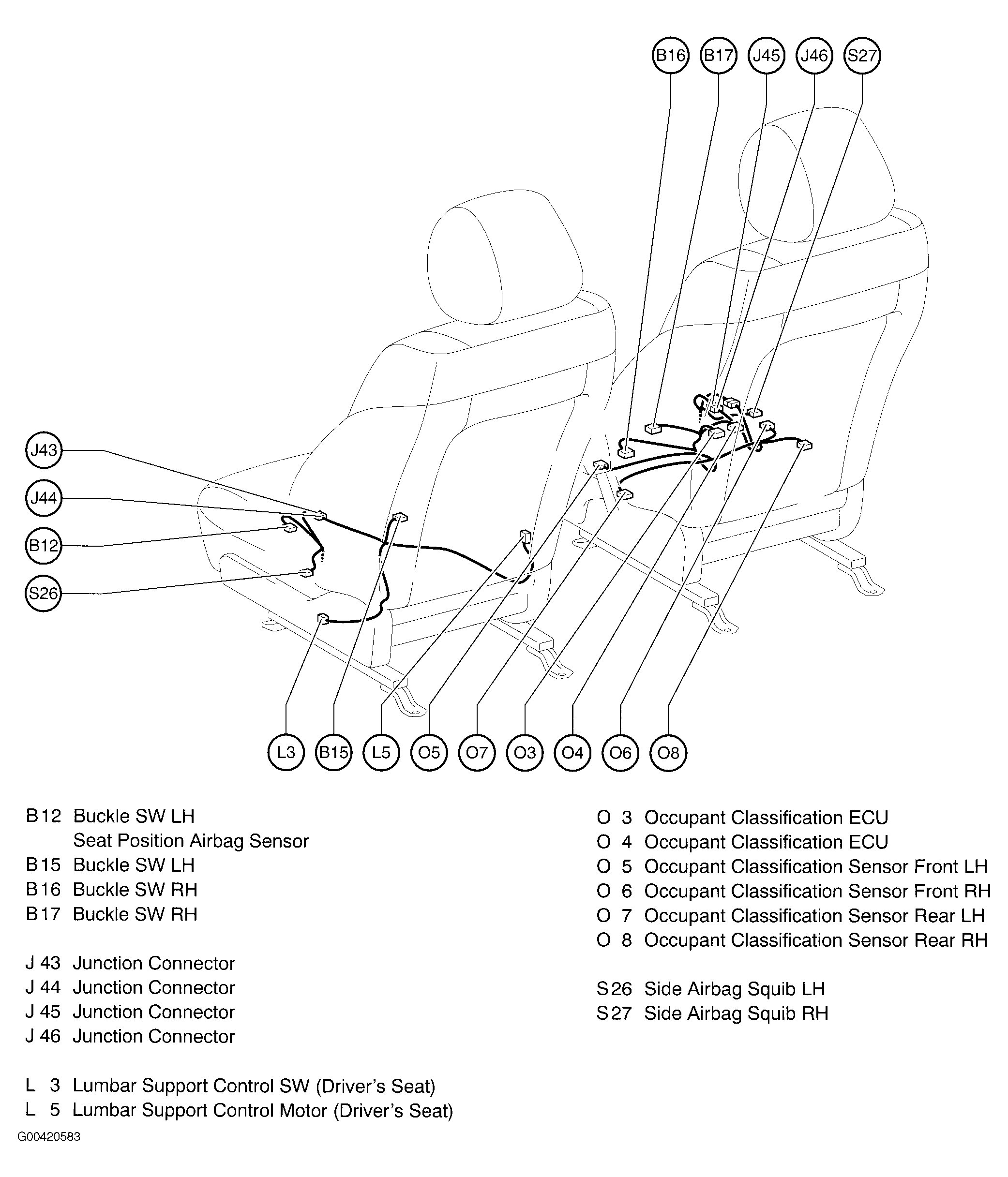

Fig 26: Front Seats (Manual Seats)

G00420583

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

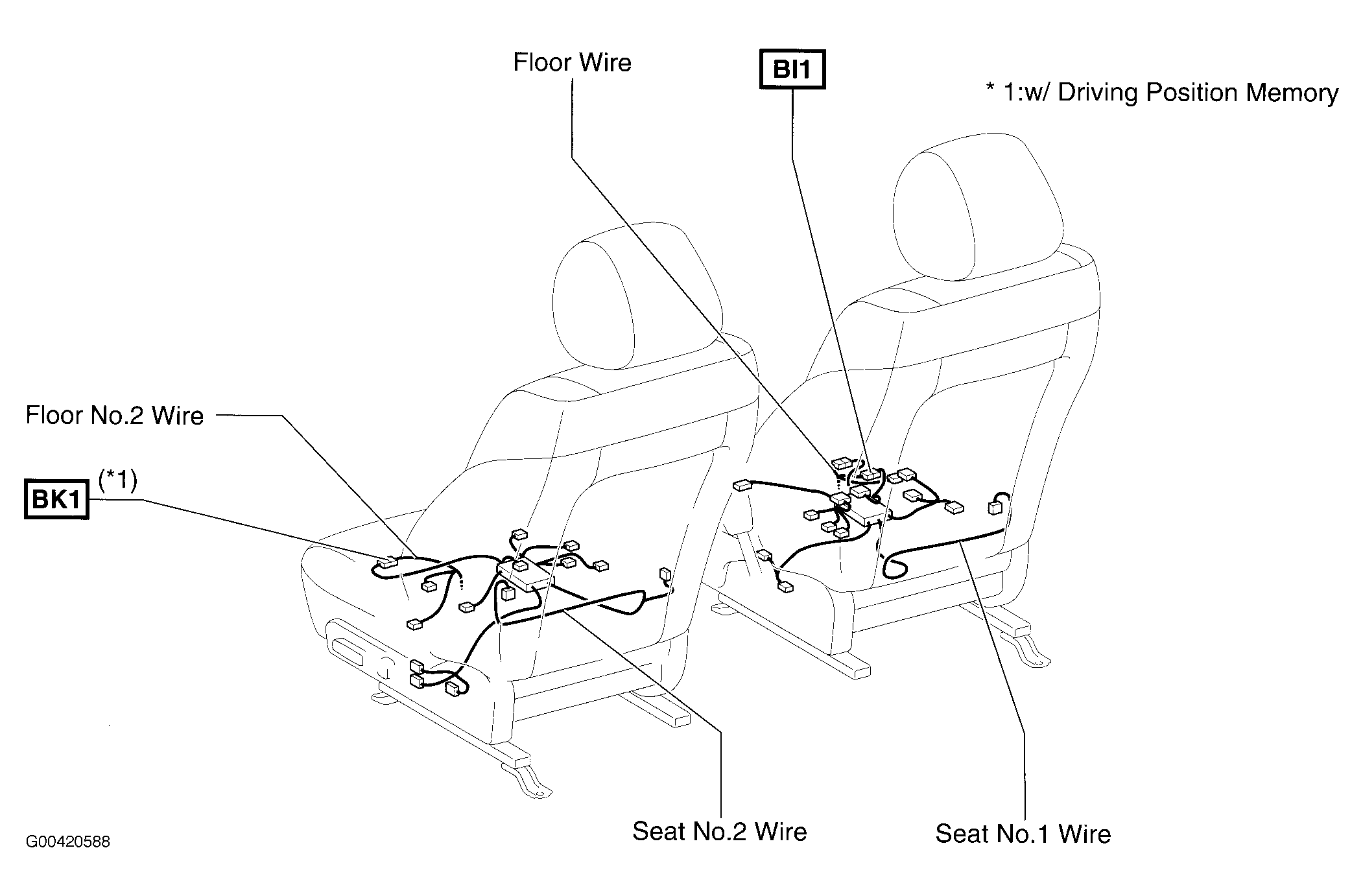

Fig 27: Front Seats

G00420588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

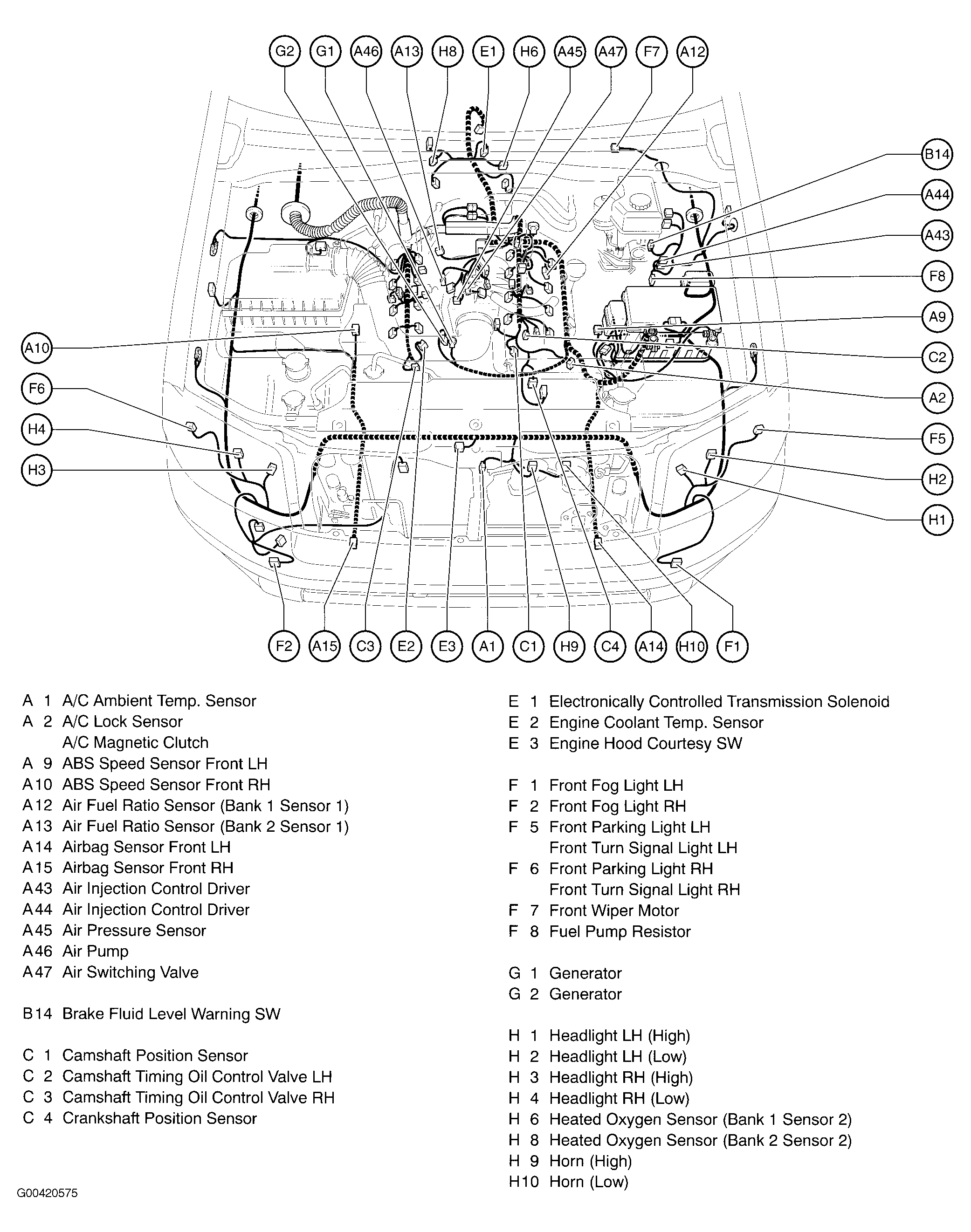

Fig 28: Engine Compartment (4.7L)

G00420575

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
