Wireless Door Lock Control: Notes

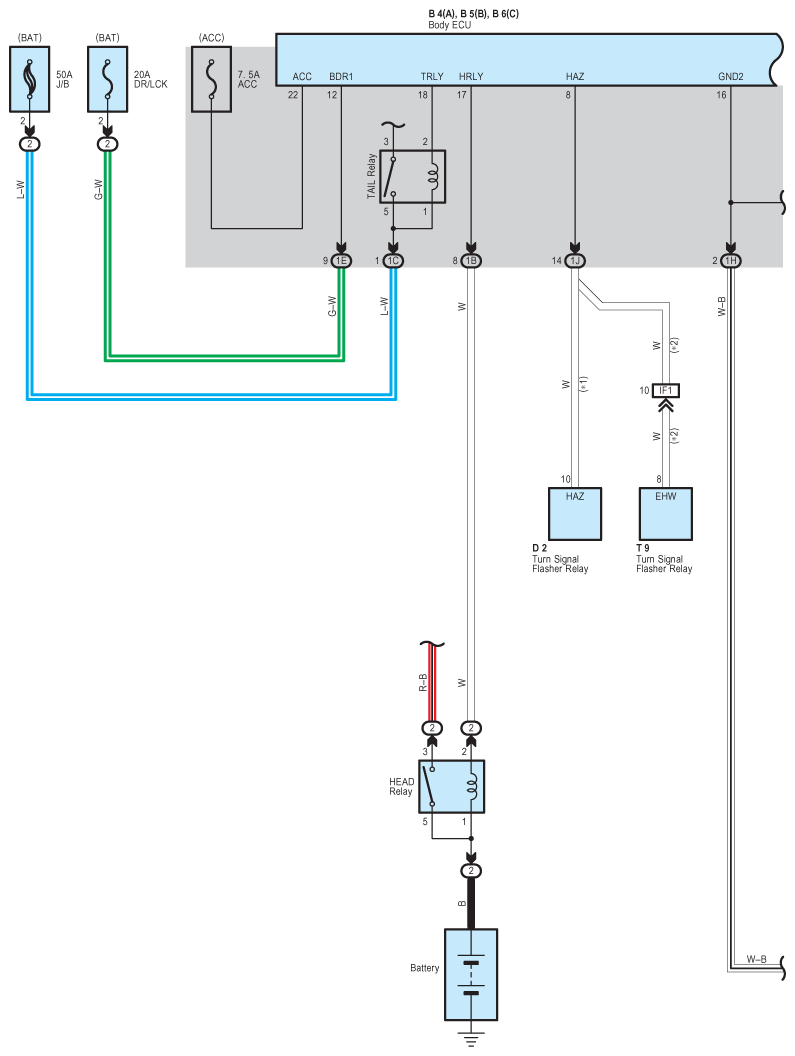

Fig 1: Wireless Door Lock Control System Wiring Diagram (1 Of 7)
G08865345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

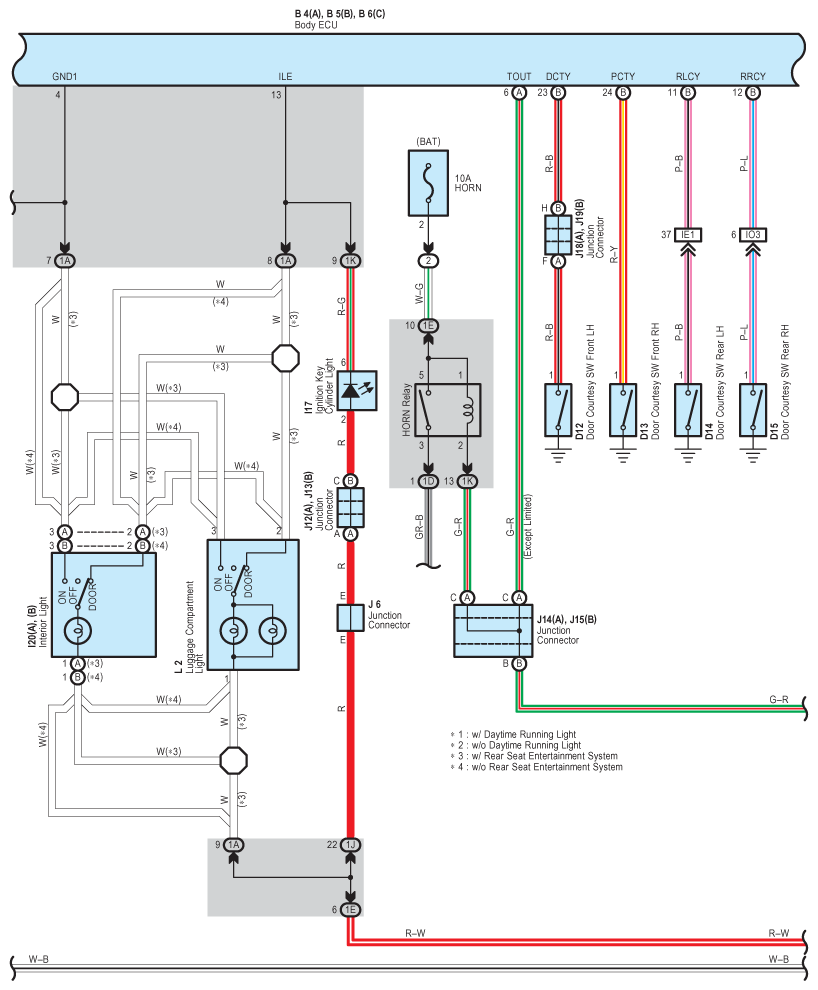

Fig 2: Wireless Door Lock Control System Wiring Diagram (2 Of 7)
G08865346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

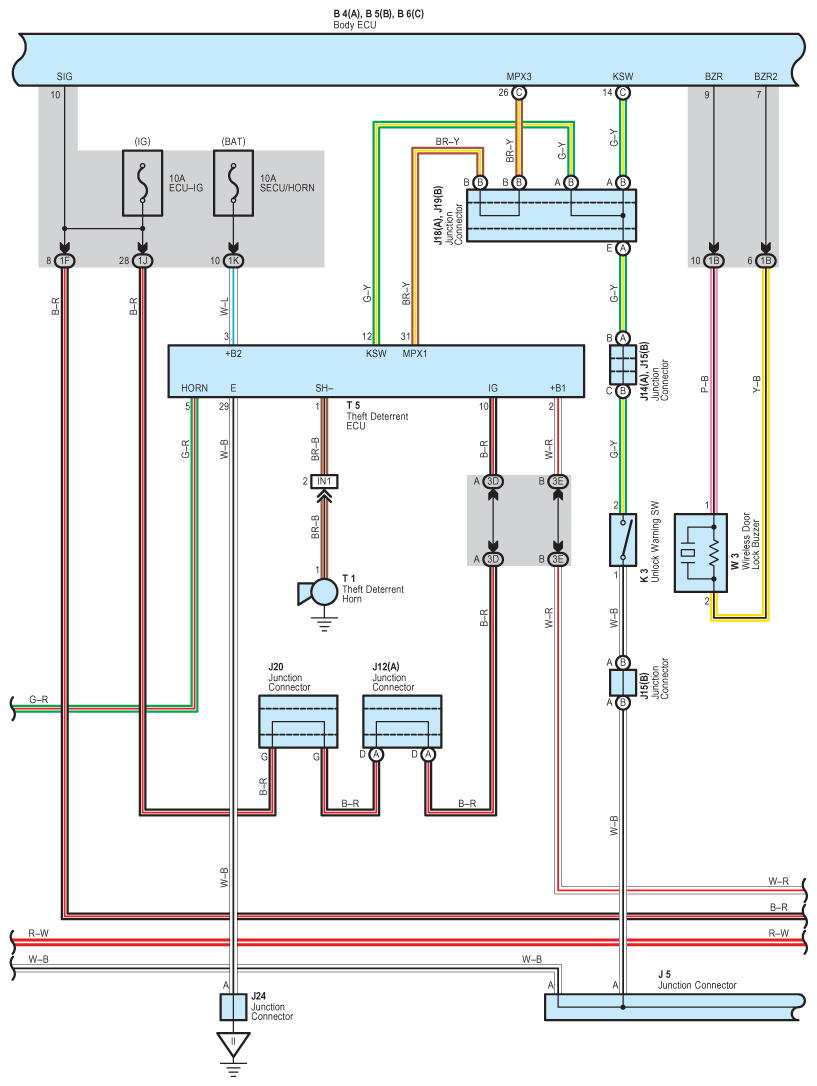

Fig 3: Wireless Door Lock Control System Wiring Diagram (3 Of 7)
G08865347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

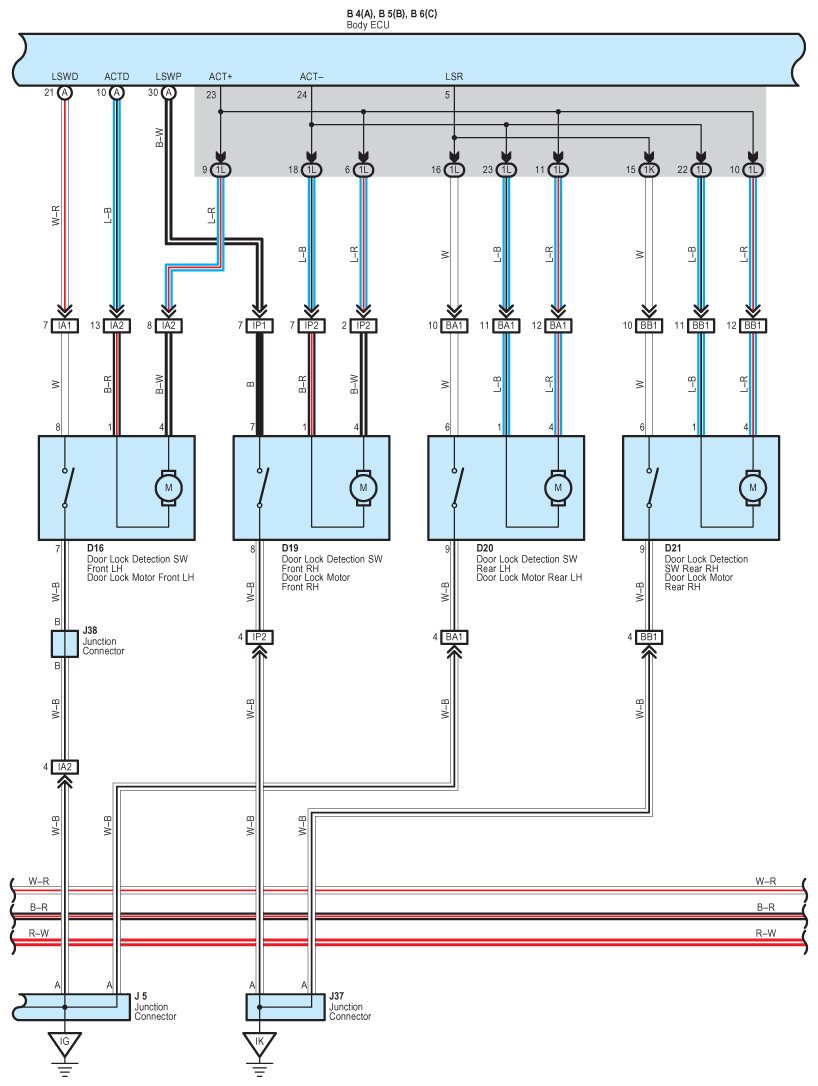

Fig 4: Wireless Door Lock Control System Wiring Diagram (4 Of 7)
G08865348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

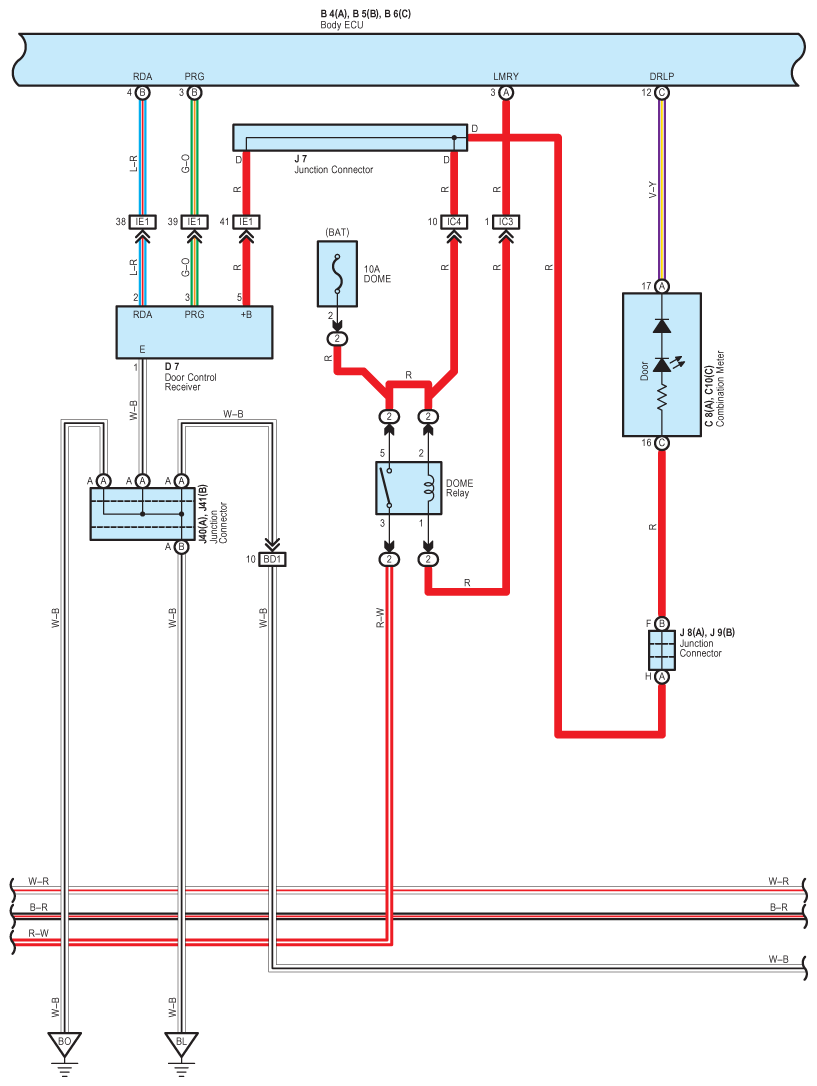

Fig 5: Wireless Door Lock Control System Wiring Diagram (5 Of 7)
G08865349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

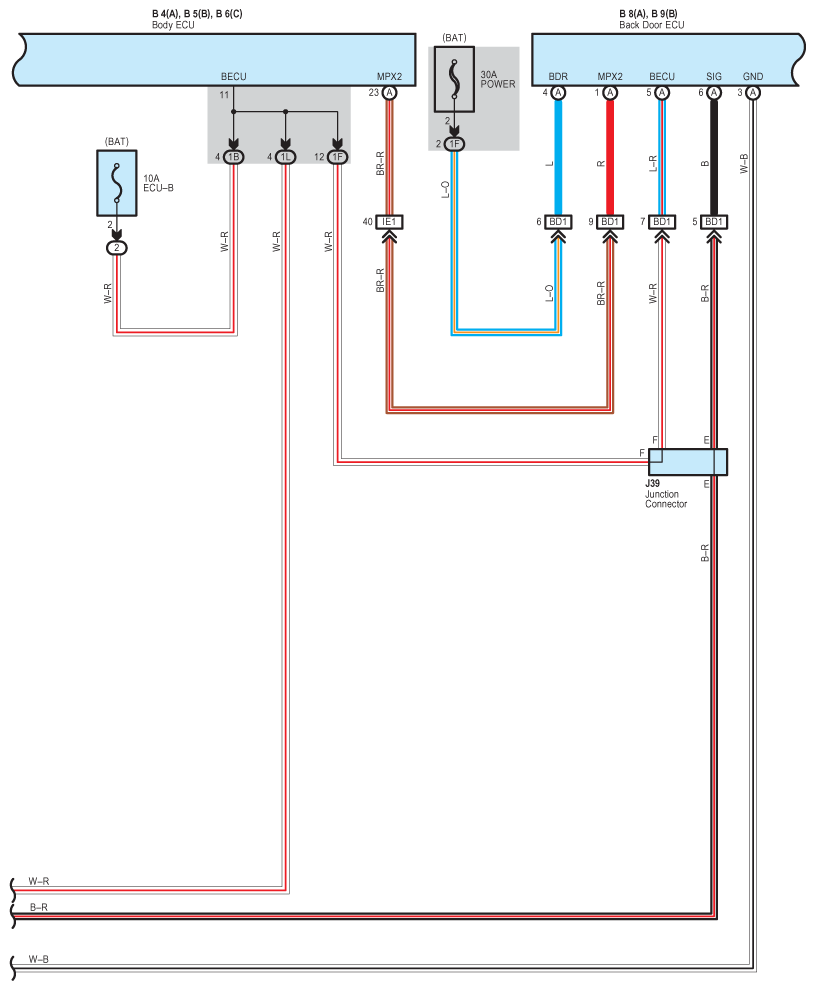

Fig 6: Wireless Door Lock Control System Wiring Diagram (6 Of 7)
G08865350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

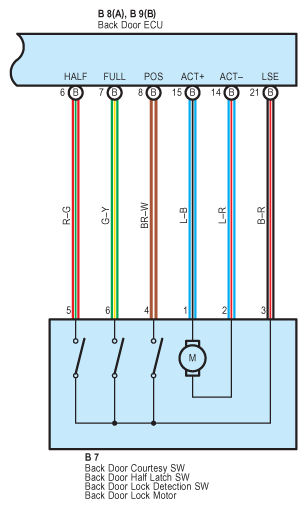

Fig 7: Wireless Door Lock Control System Wiring Diagram (7 Of 7)
G08865351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
