Trailer Towing: Notes

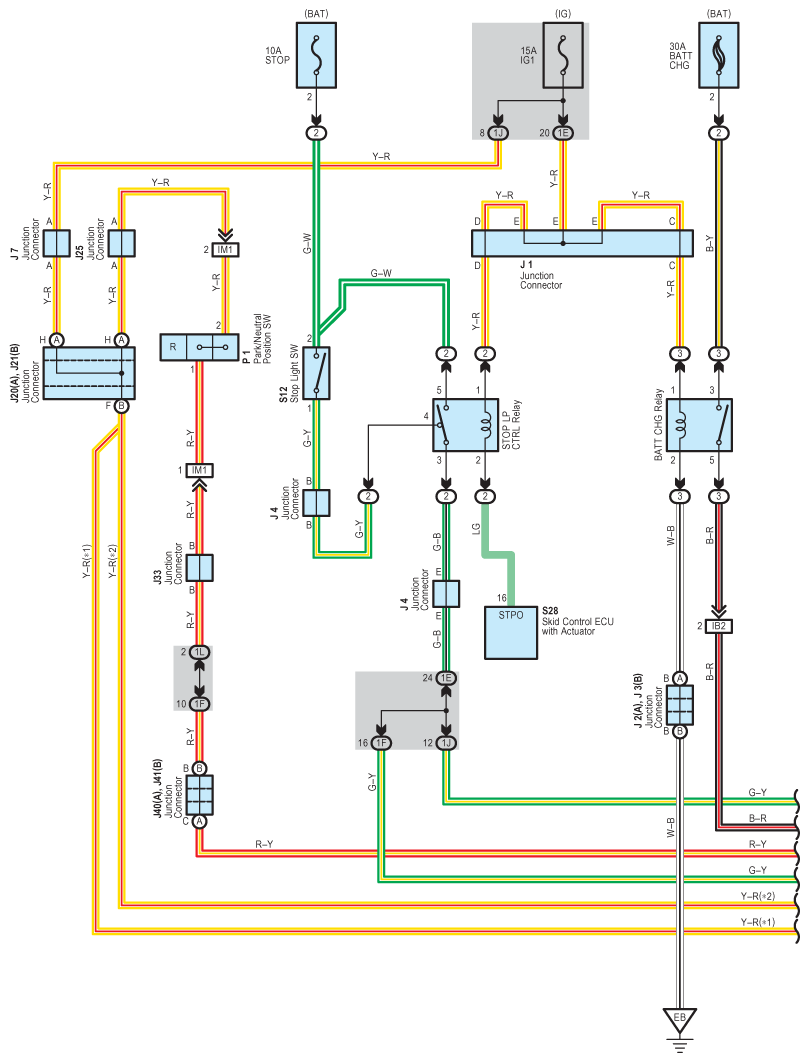

Fig 1: Trailer Towing System Wiring Diagram (1 Of 3)
G08865414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

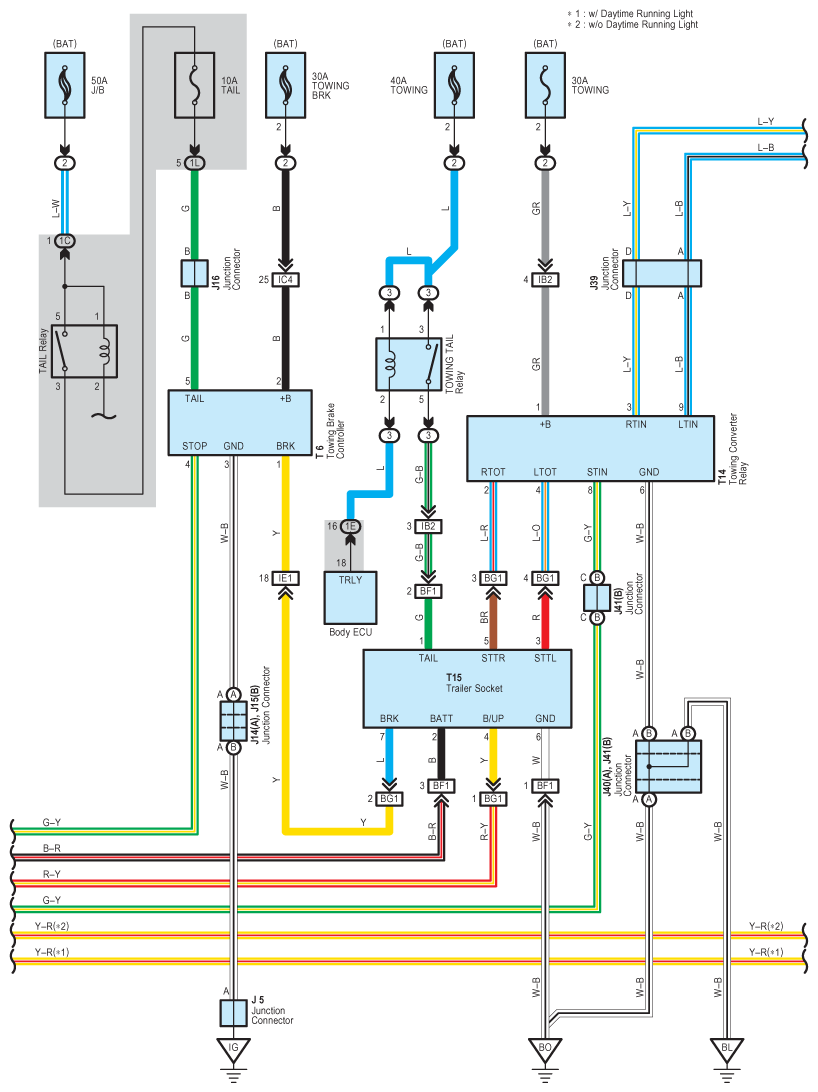

Fig 2: Trailer Towing System Wiring Diagram (2 Of 3)
G08865415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

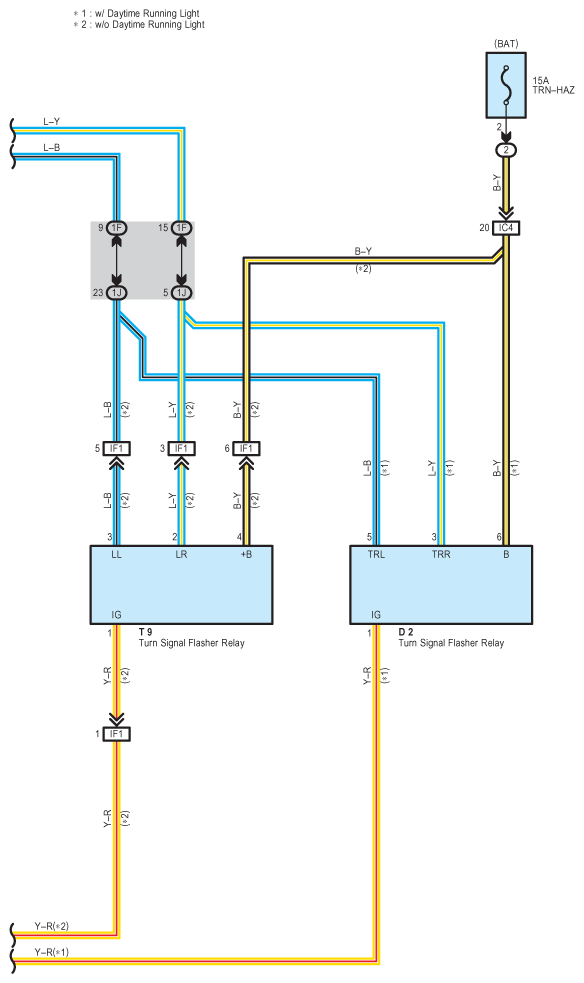

Fig 3: Trailer Towing System Wiring Diagram (3 Of 3)
G08865416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
