Power Source: Notes

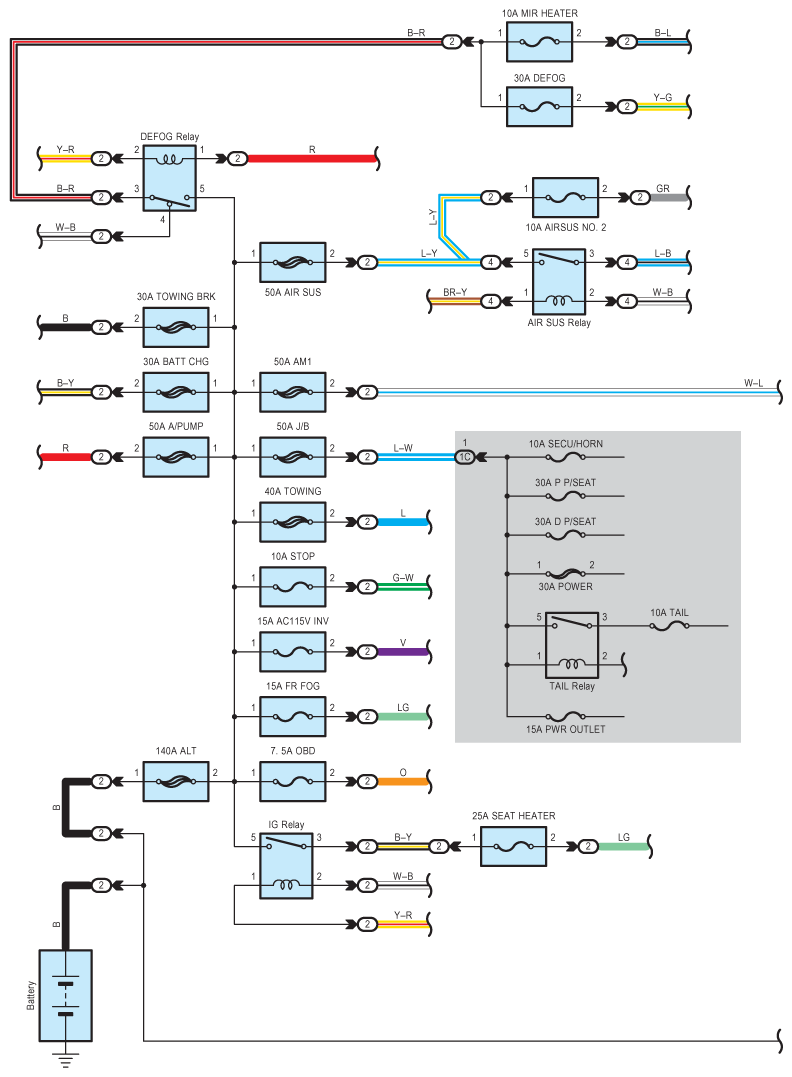

Fig 1: Power Source System Wiring Diagram (1 Of 3)
G08865243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

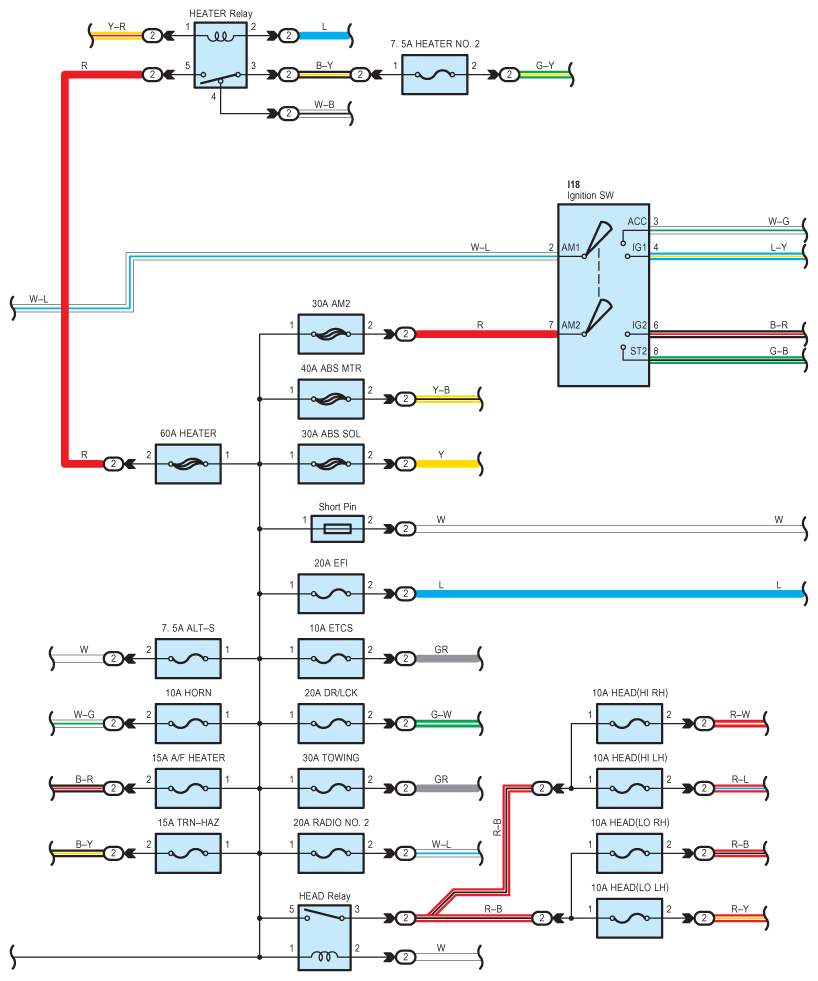

Fig 2: Power Source System Wiring Diagram (2 Of 3)
G08865244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

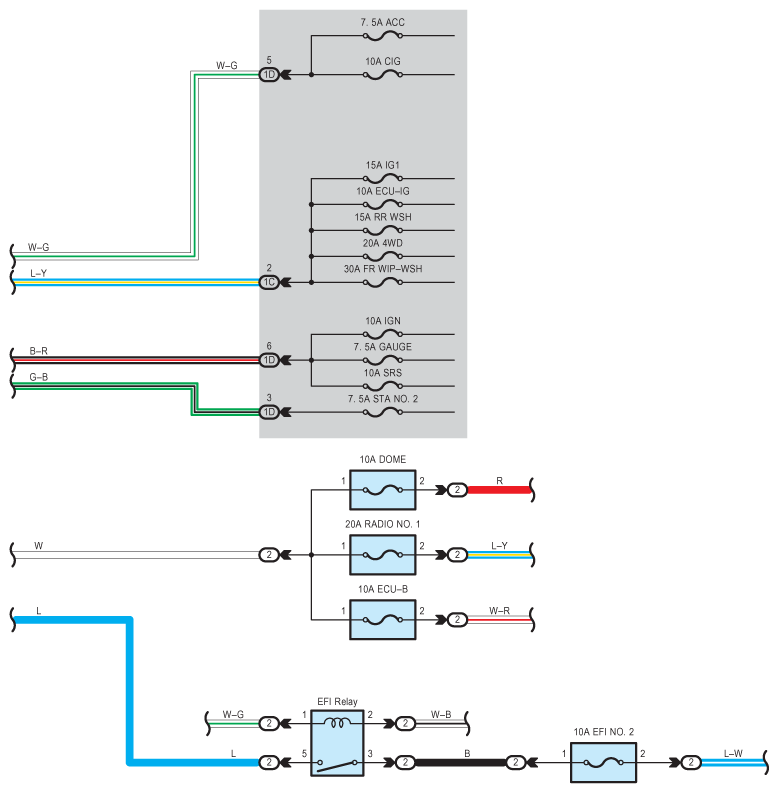

Fig 3: Power Source System Wiring Diagram (3 Of 3)
G08865245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
