Multiplex Communication System - BEAN: Notes

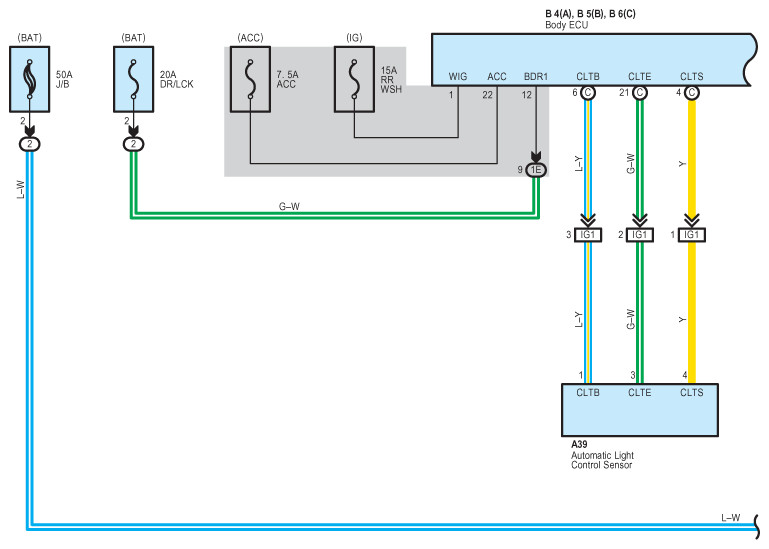

Fig 1: Multiplex Communication System - BEAN System Wiring Diagram (1 Of 22)

G08865275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

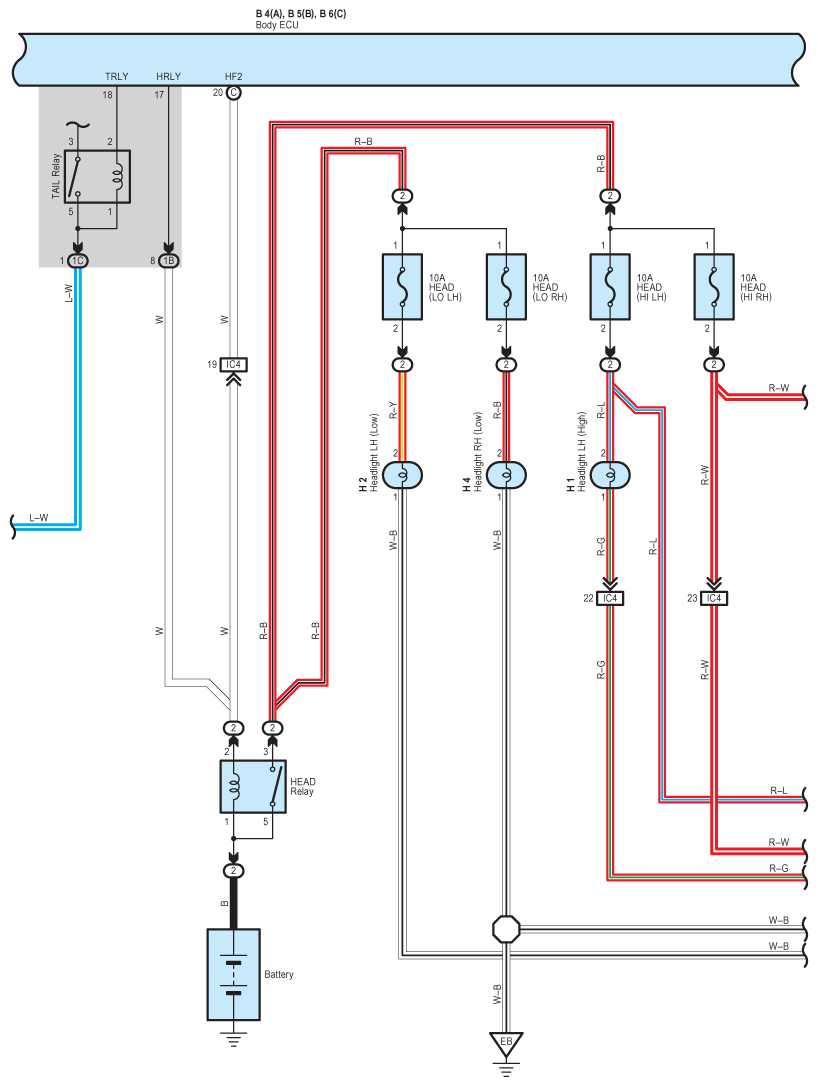

Fig 2: Multiplex Communication System - BEAN System Wiring Diagram (2 Of 22)

G08865276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

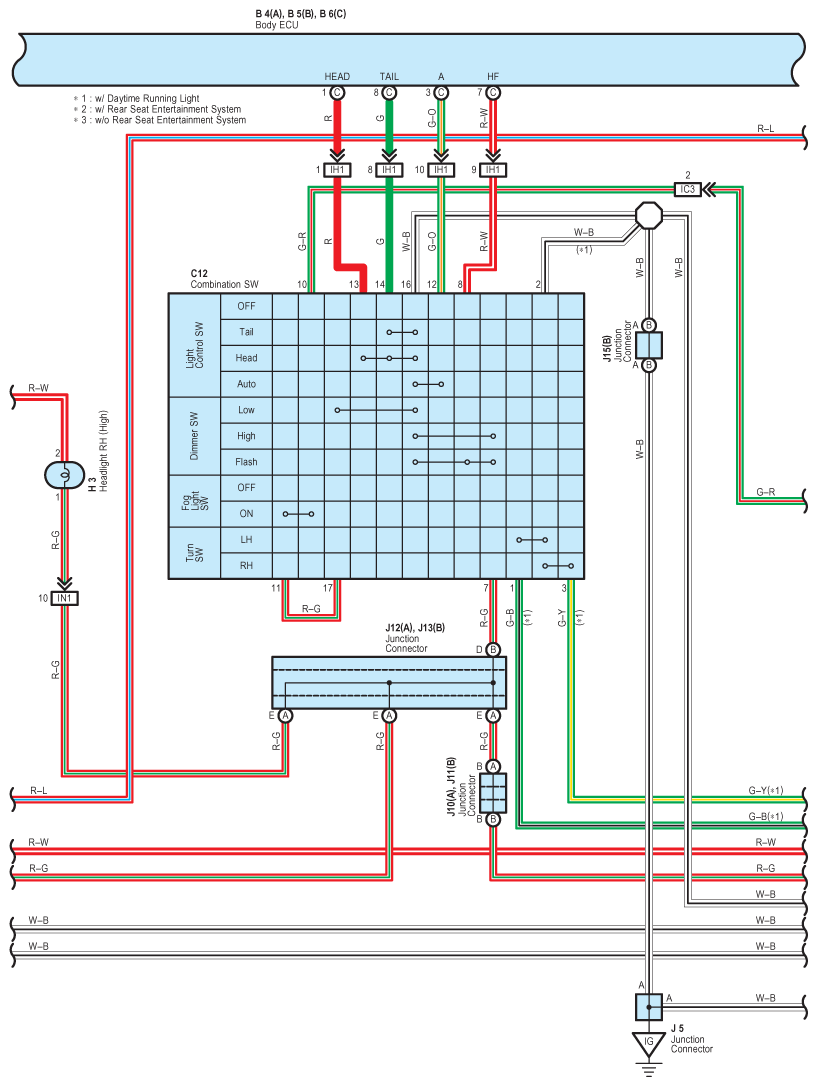

Fig 3: Multiplex Communication System - BEAN System Wiring Diagram (3 Of 22)

G08865277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

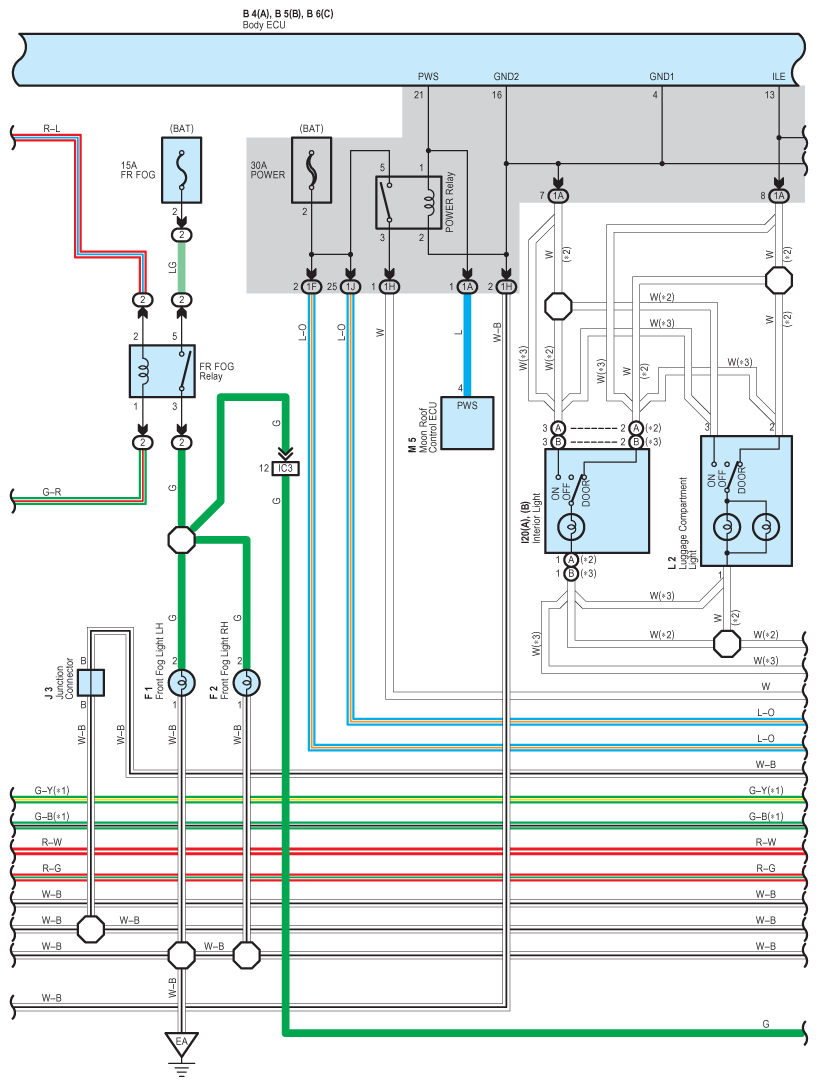

Fig 4: Multiplex Communication System - BEAN System Wiring Diagram (4 Of 22)

G08865278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

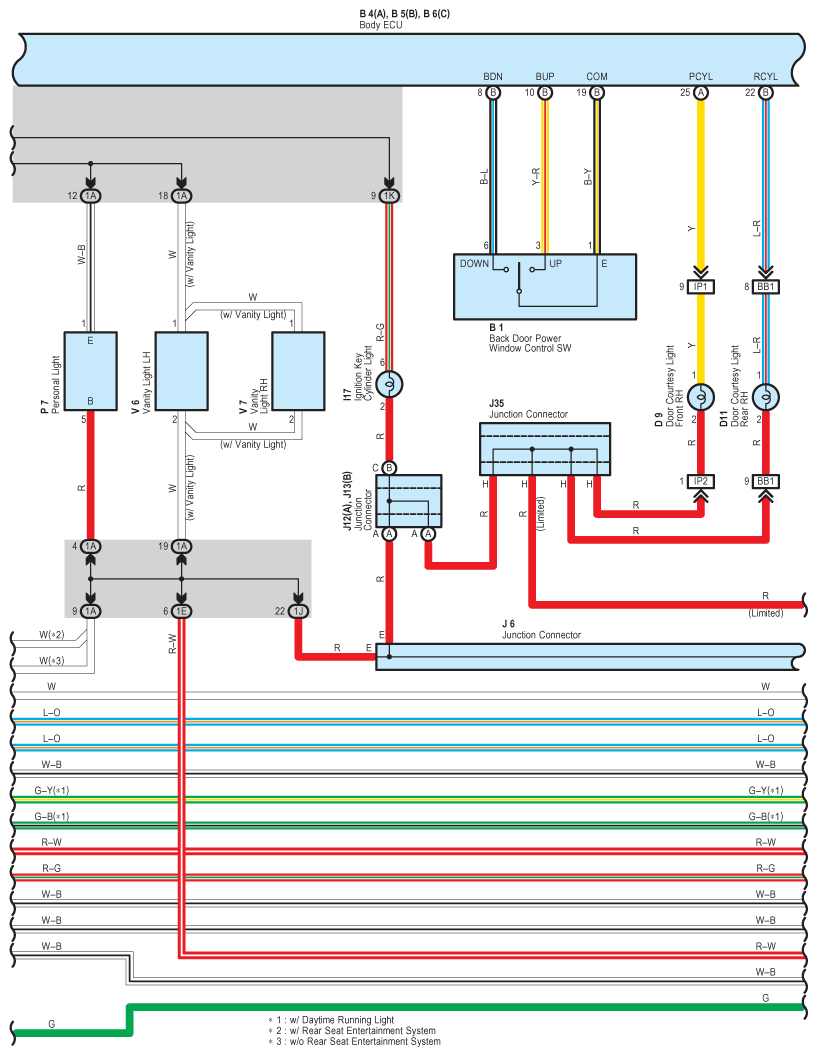

Fig 5: Multiplex Communication System - BEAN System Wiring Diagram (5 Of 22)

G08865279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

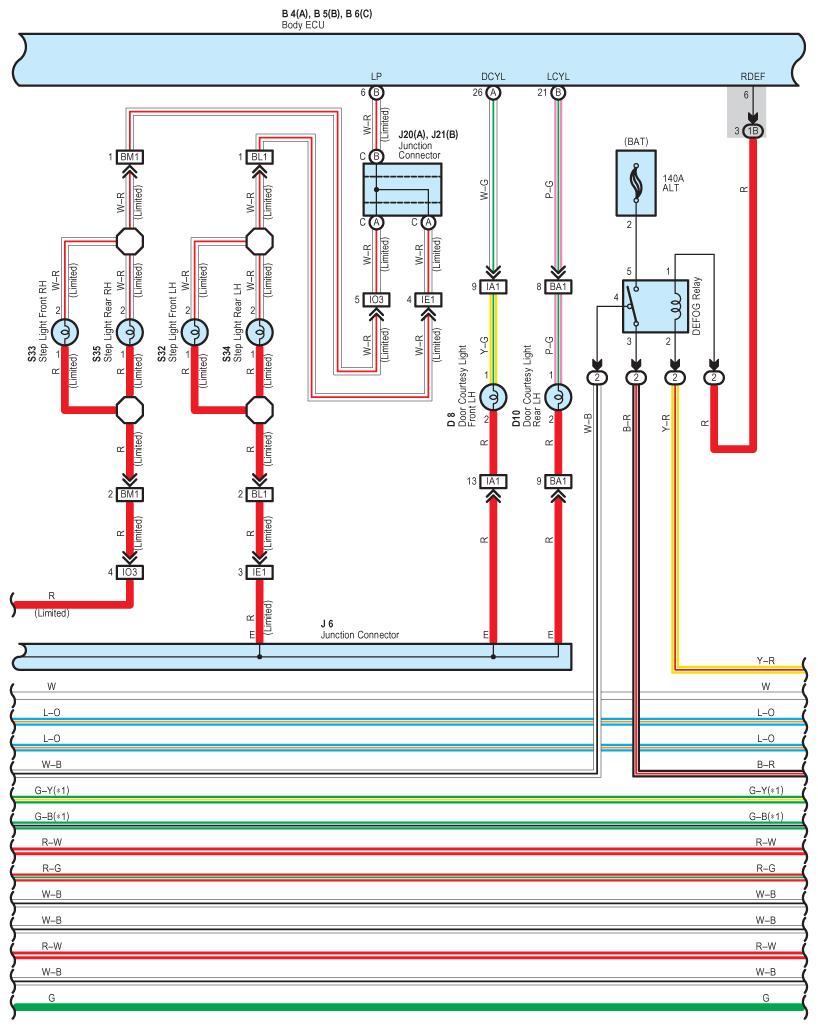

Fig 6: Multiplex Communication System - BEAN System Wiring Diagram (6 Of 22)

G08865280

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

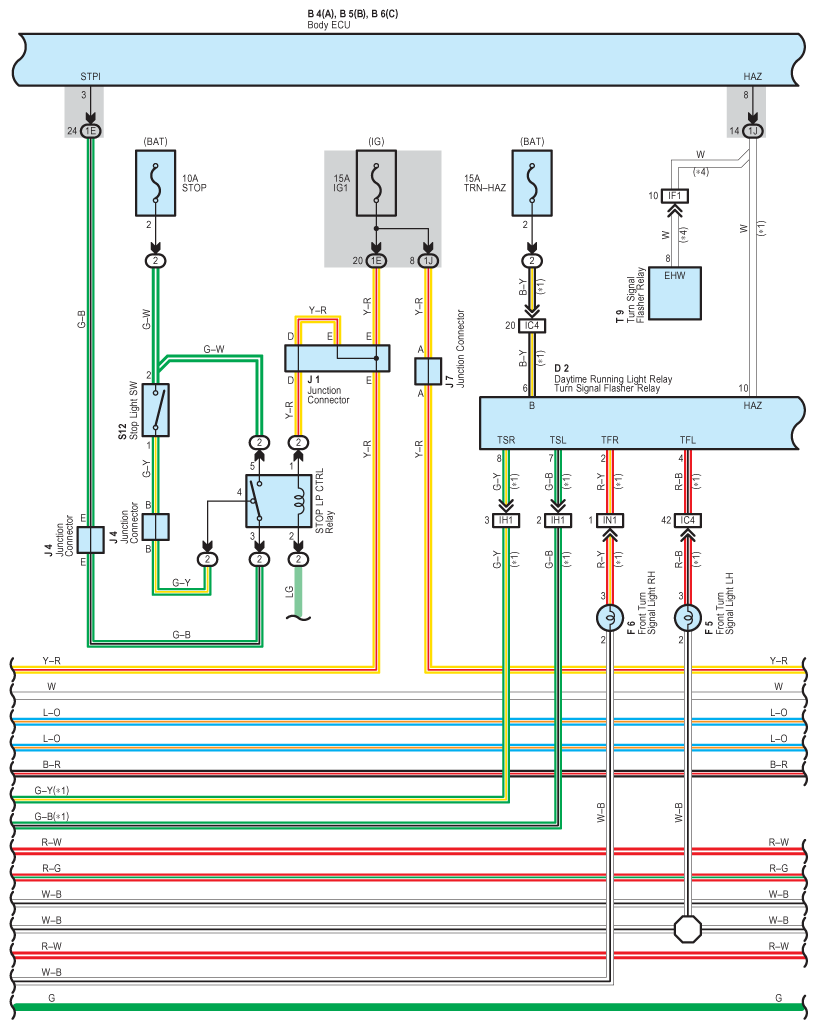

Fig 7: Multiplex Communication System - BEAN System Wiring Diagram (7 Of 22)

G08865281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

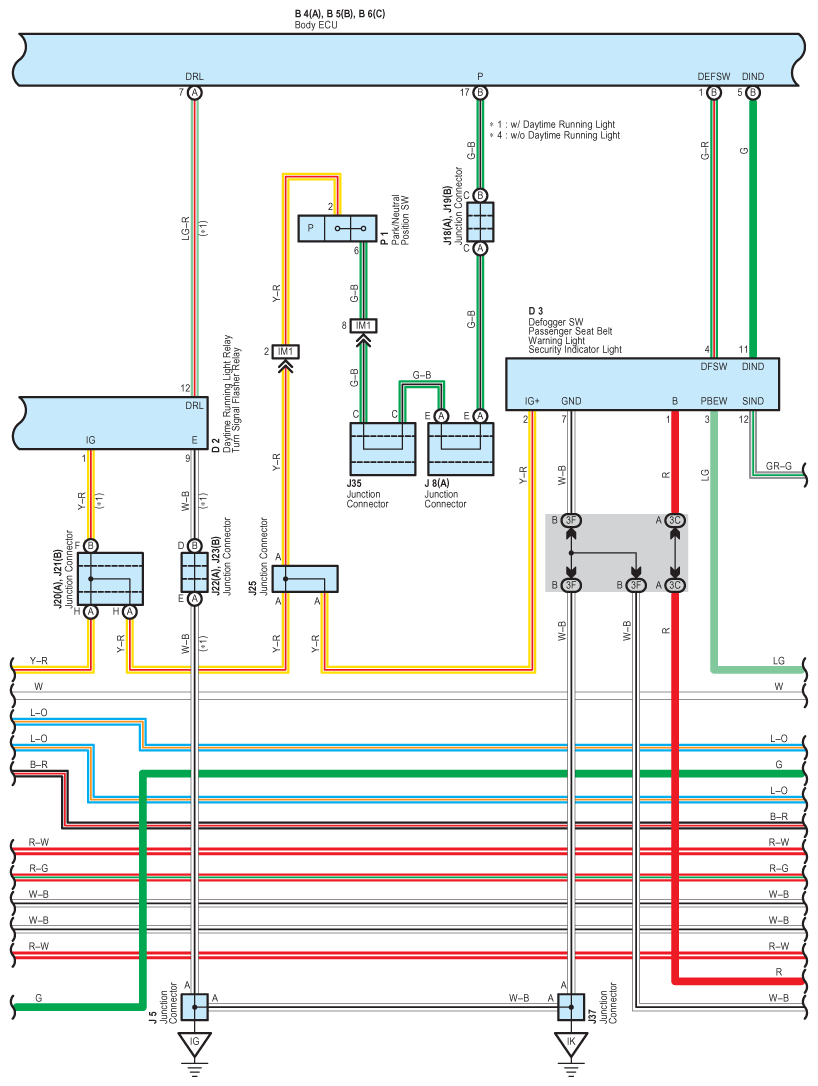

Fig 8: Multiplex Communication System - BEAN System Wiring Diagram (8 Of 22)

G08865282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

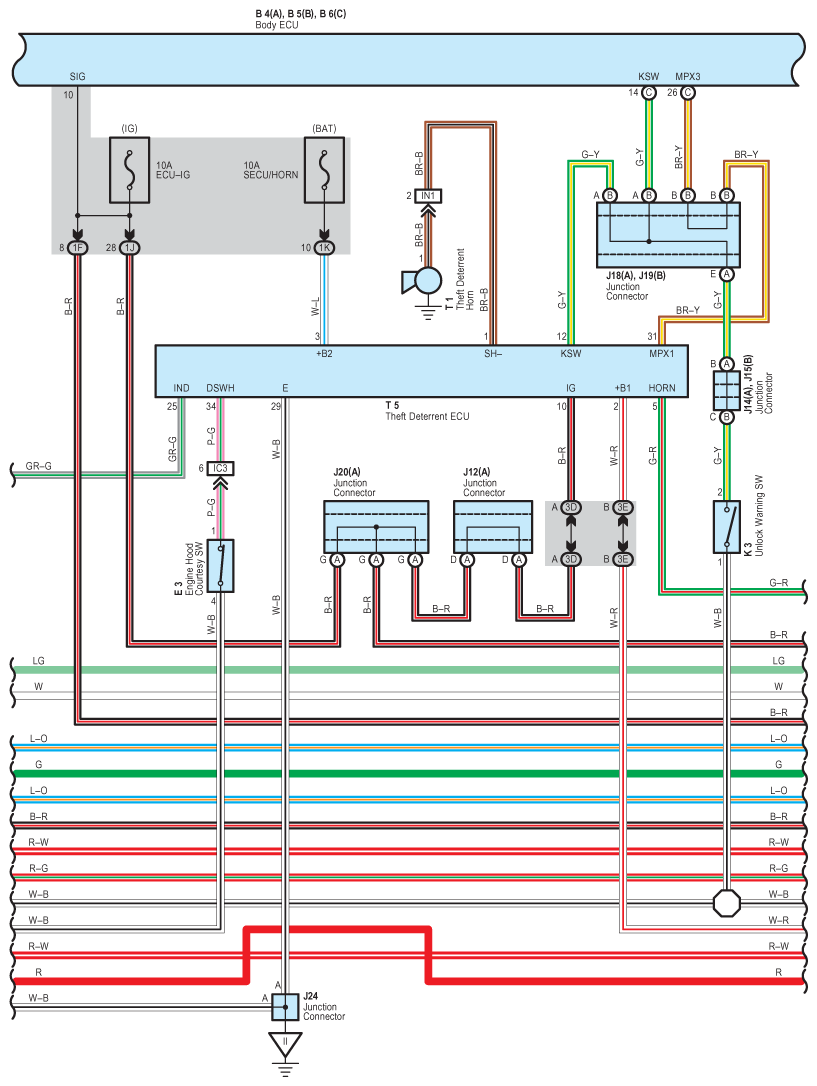

Fig 9: Multiplex Communication System - BEAN System Wiring Diagram (9 Of 22)

G08865283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

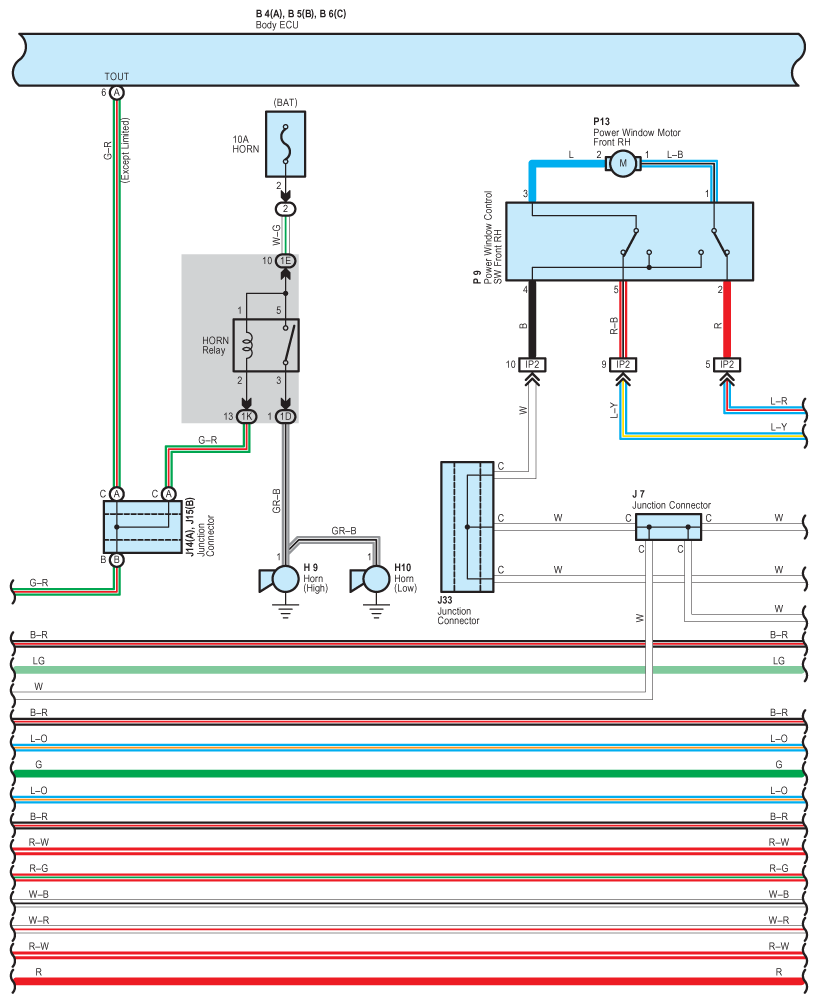

Fig 10: Multiplex Communication System - BEAN System Wiring Diagram (10 Of 22)

G08865284

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

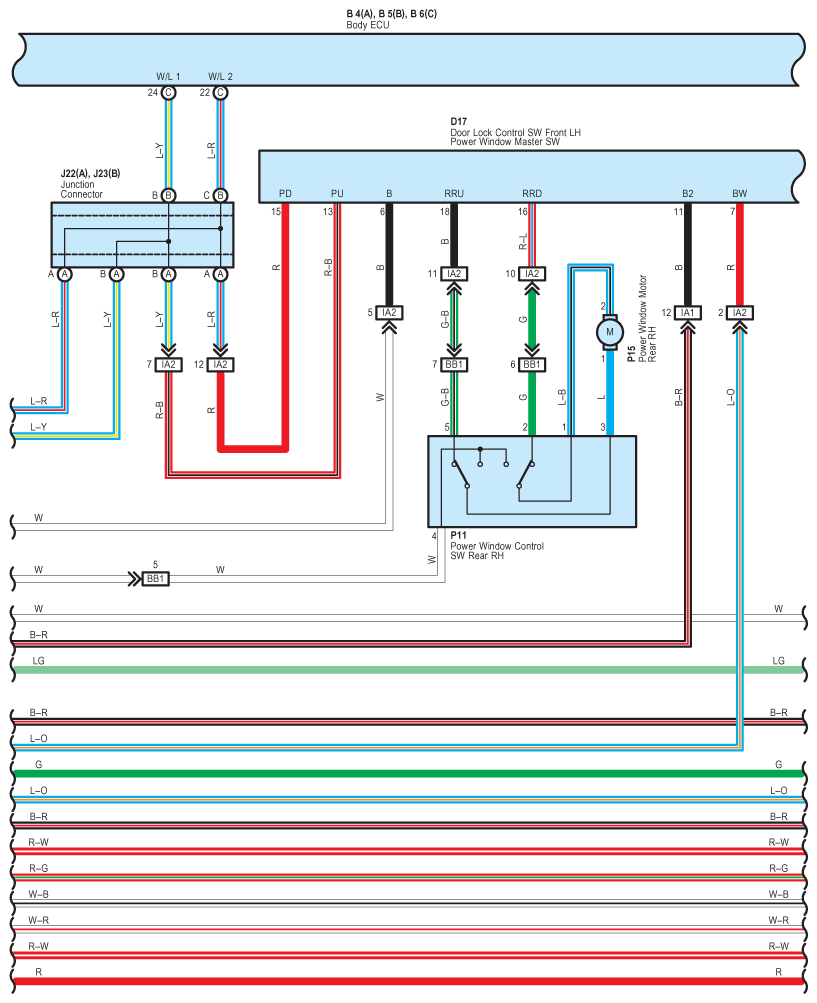

Fig 11: Multiplex Communication System - BEAN System Wiring Diagram (11 Of 22)

G08865285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

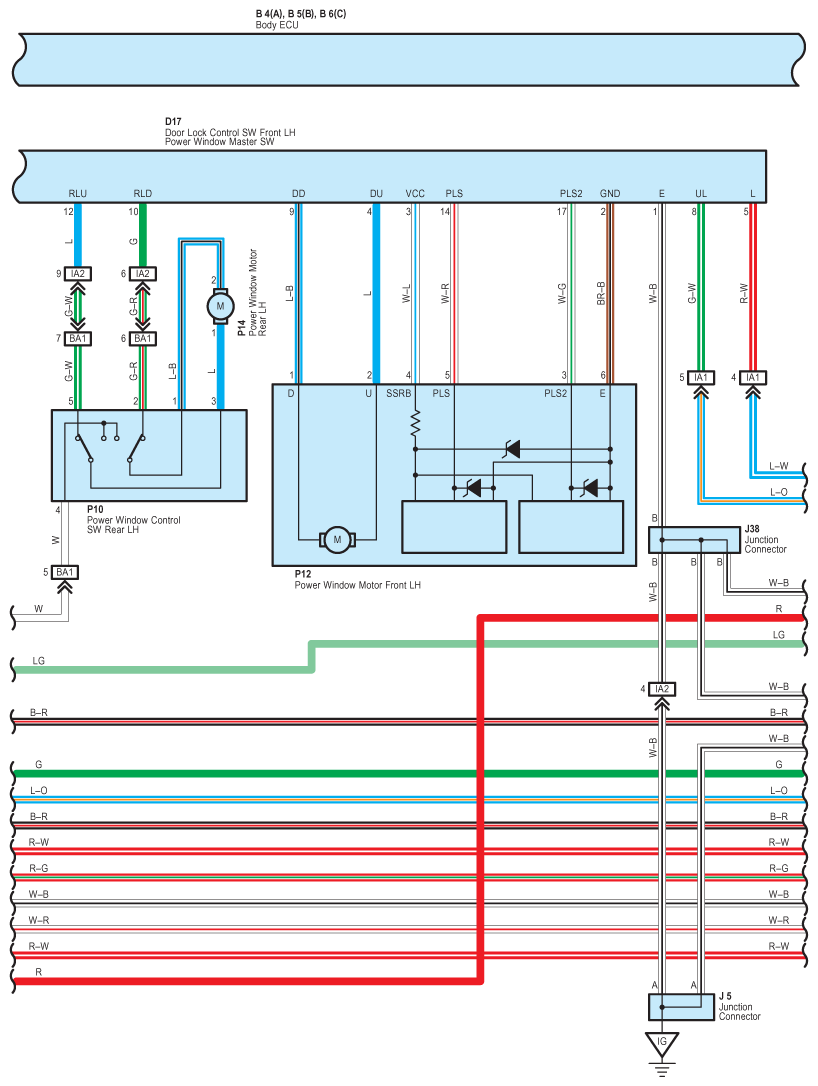

Fig 12: Multiplex Communication System - BEAN System Wiring Diagram (12 Of 22)

G08865286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

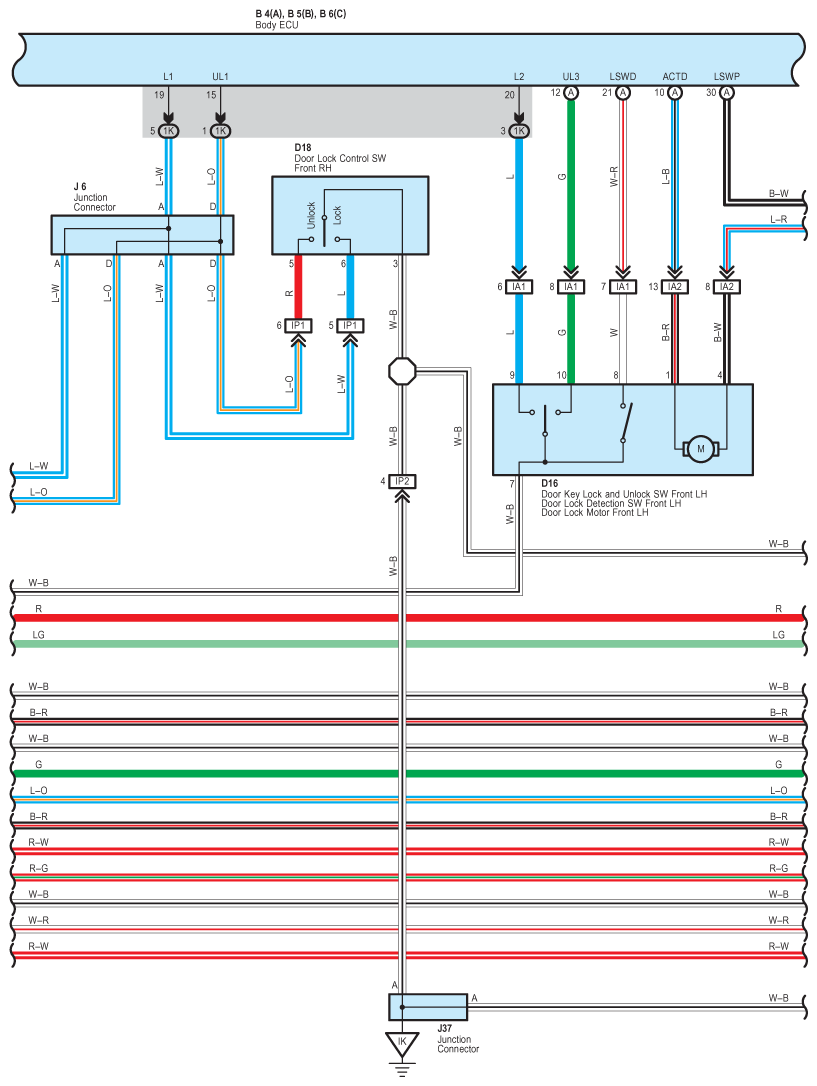

Fig 13: Multiplex Communication System - BEAN System Wiring Diagram (13 Of 22)

G08865287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

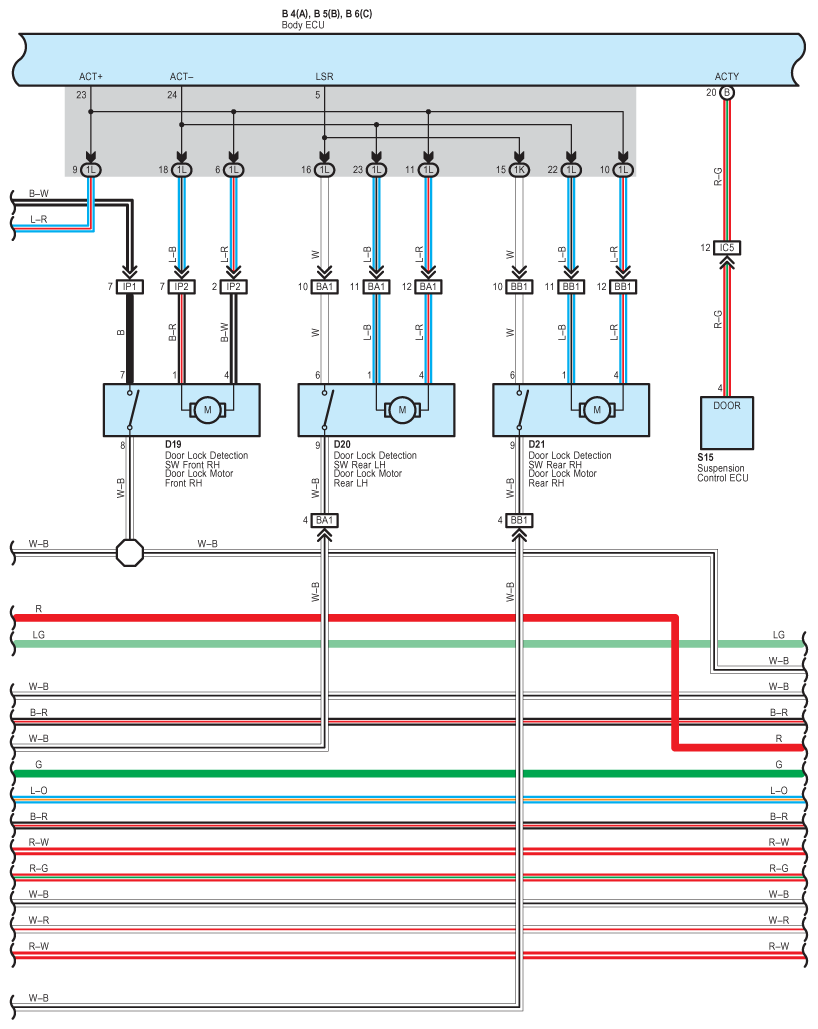

Fig 14: Multiplex Communication System - BEAN System Wiring Diagram (14 Of 22)

G08865288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

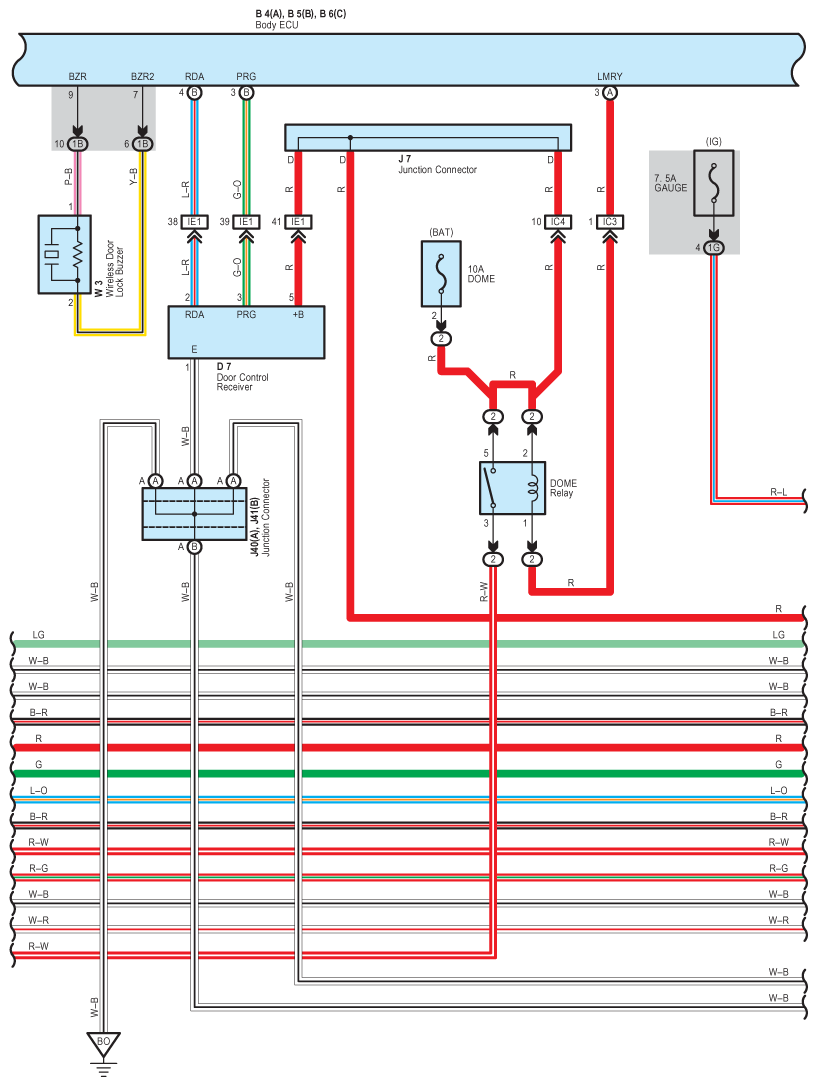

Fig 15: Multiplex Communication System - BEAN System Wiring Diagram (15 Of 22)

G08865289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

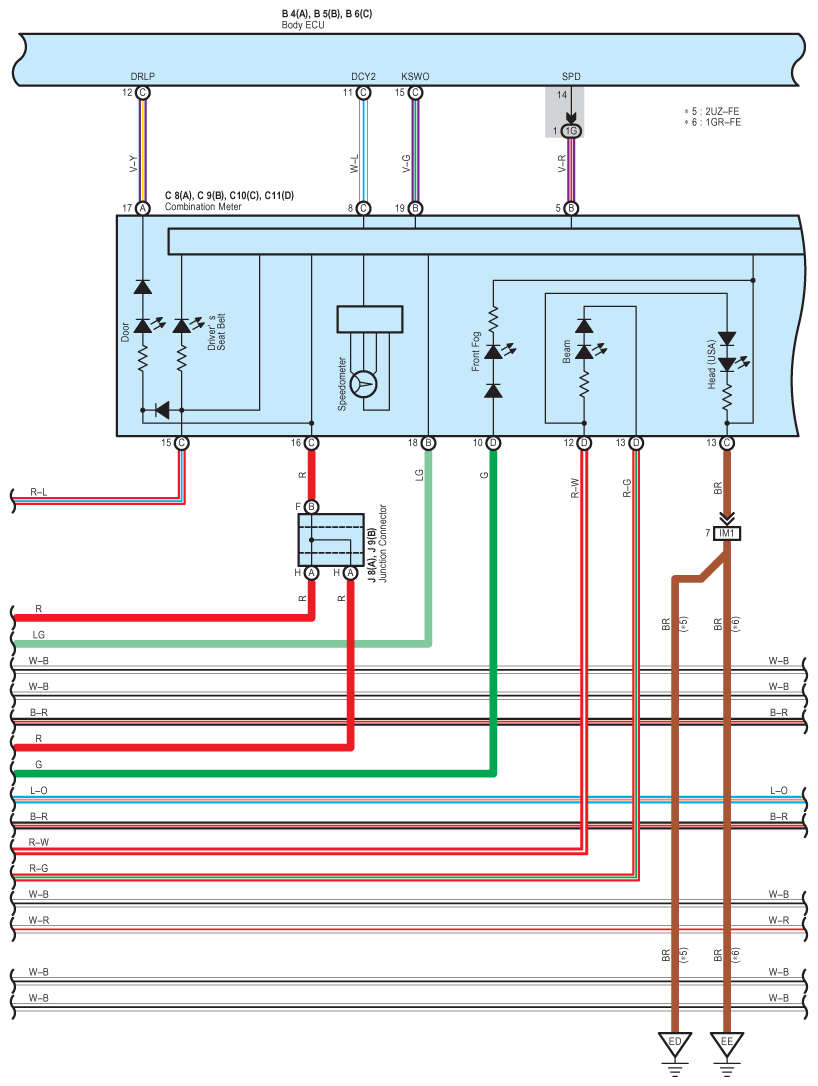

Fig 16: Multiplex Communication System - BEAN System Wiring Diagram (16 Of 22)

G08865290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

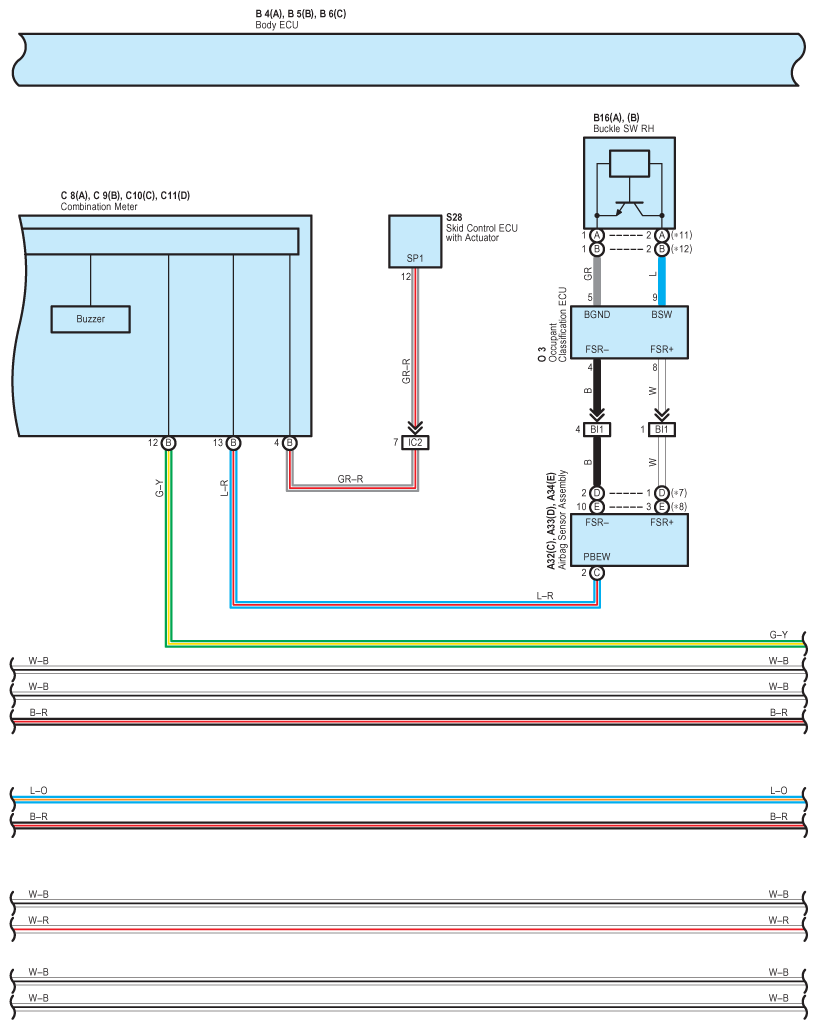

Fig 17: Multiplex Communication System - BEAN System Wiring Diagram (17 Of 22)

G08865291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

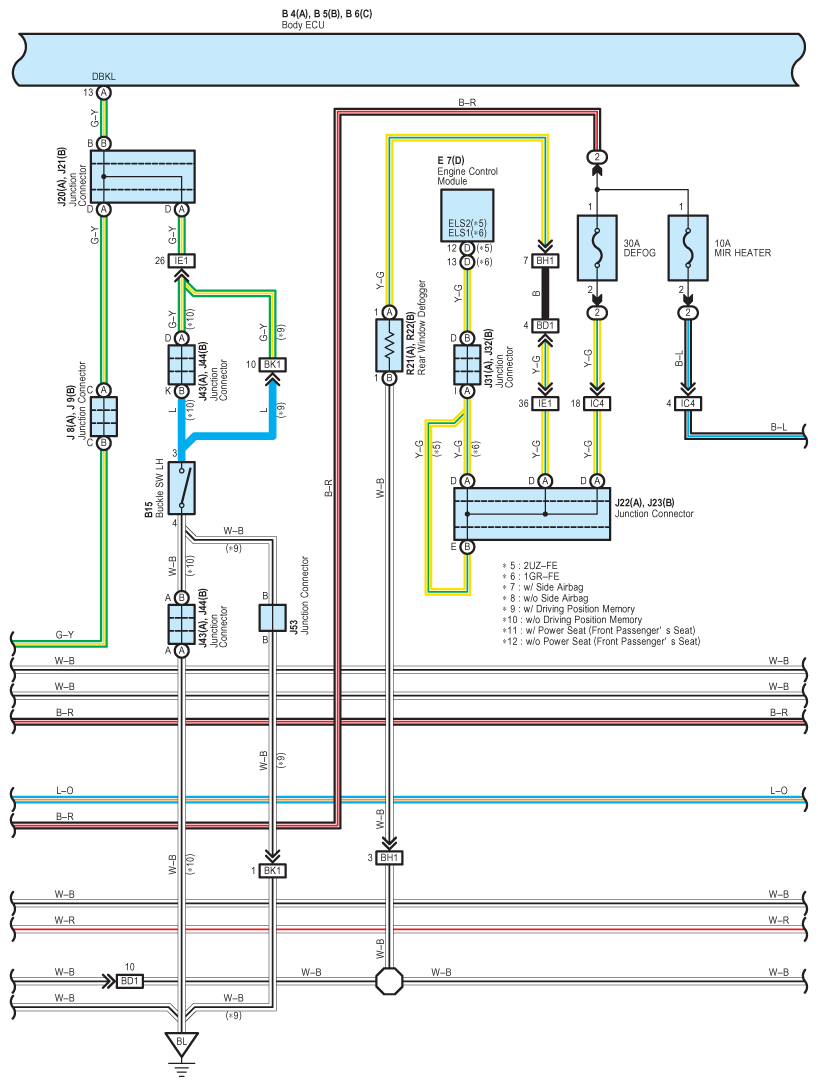

Fig 18: Multiplex Communication System - BEAN System Wiring Diagram (18 Of 22)

G08865292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

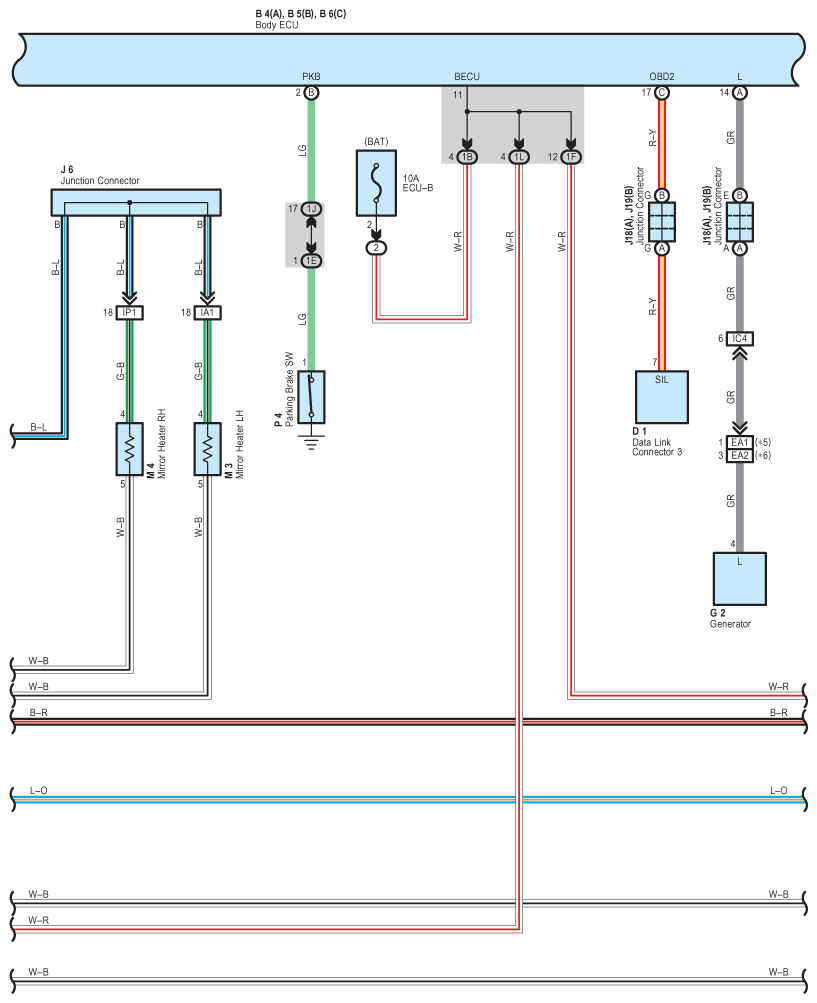

Fig 19: Multiplex Communication System - BEAN System Wiring Diagram (19 Of 22)

G08865293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

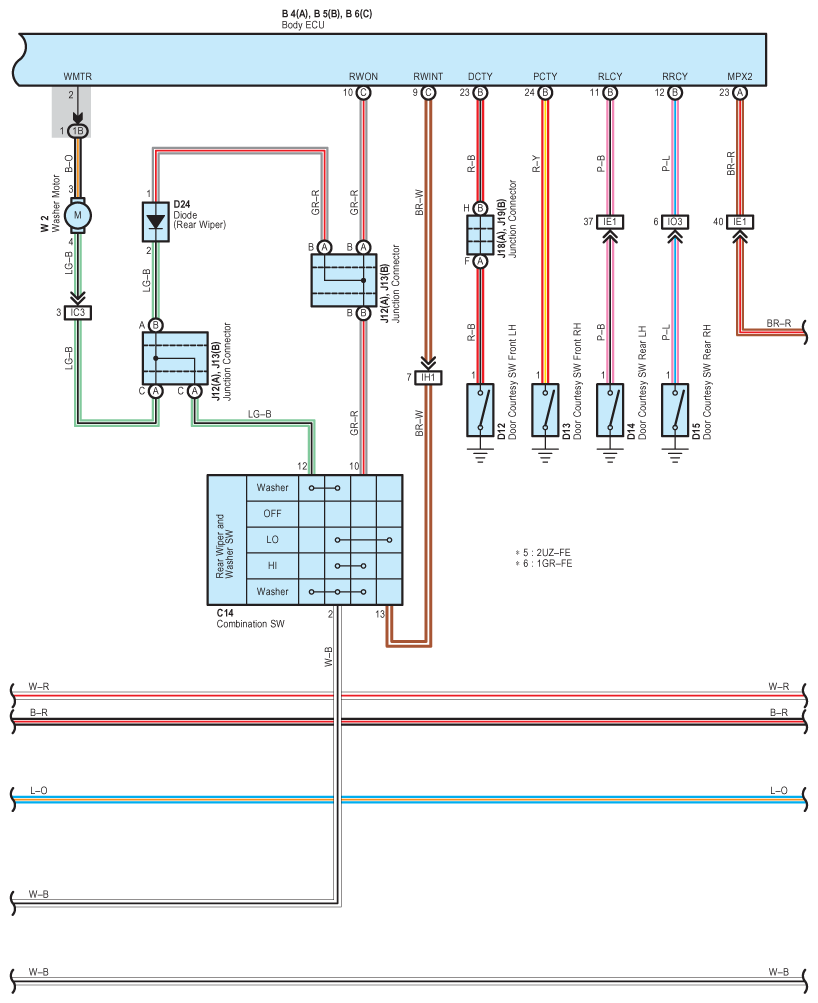

Fig 20: Multiplex Communication System - BEAN System Wiring Diagram (20 Of 22)

G08865294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

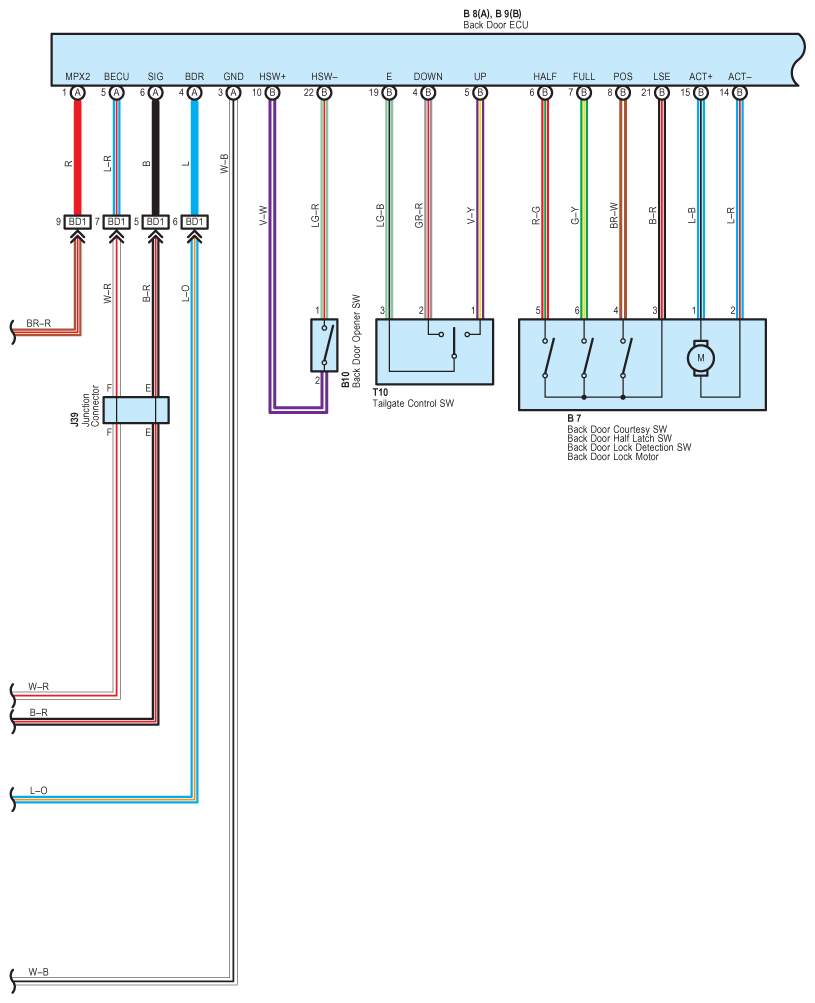

Fig 21: Multiplex Communication System - BEAN System Wiring Diagram (21 Of 22)

G08865295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

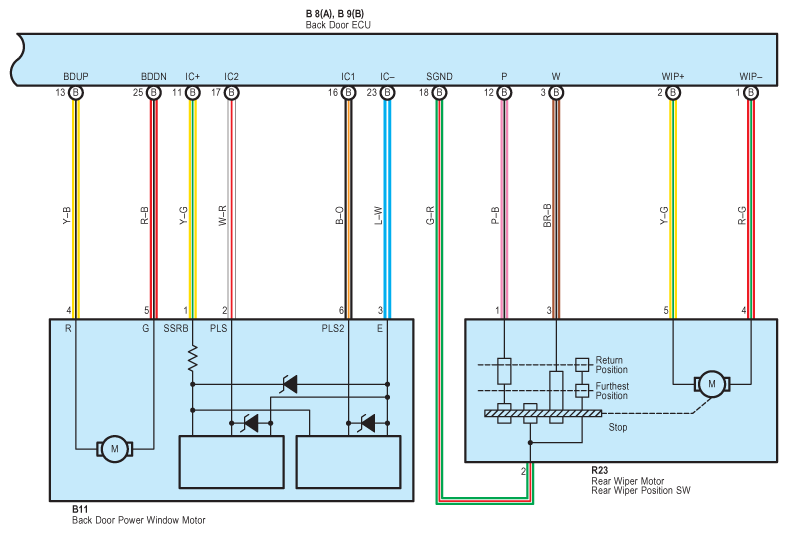

Fig 22: Multiplex Communication System - BEAN System Wiring Diagram (22 Of 22)

G08865296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
