Multiplex Communication System - BEAN Bus: Notes

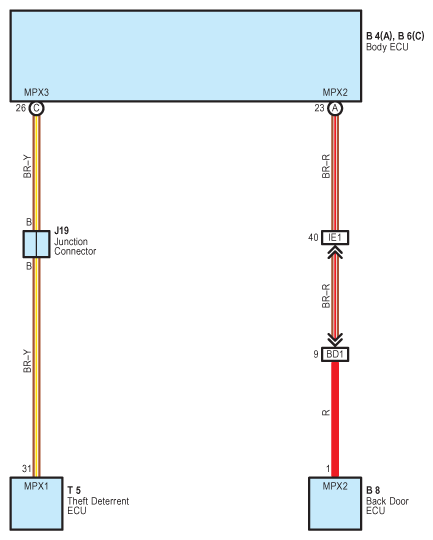

Fig 1: Multiplex Communication System - BEAN Bus System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex Communication System Includes Following Systems

* Automatic Light Control

* Door Lock Control

* Front Fog Light

* Garage Door Opener

* Headlight

* Interior Light

* Key Reminder

* Light Auto Turn Off System

* Mirror Heater

* Power Window

* Rear Window Defogger

* Rear Wiper and Washer

* Seat Belt Warning

* Theft Deterrent

* Wireless Door Lock Control
