Multi Mode 4WD: Notes

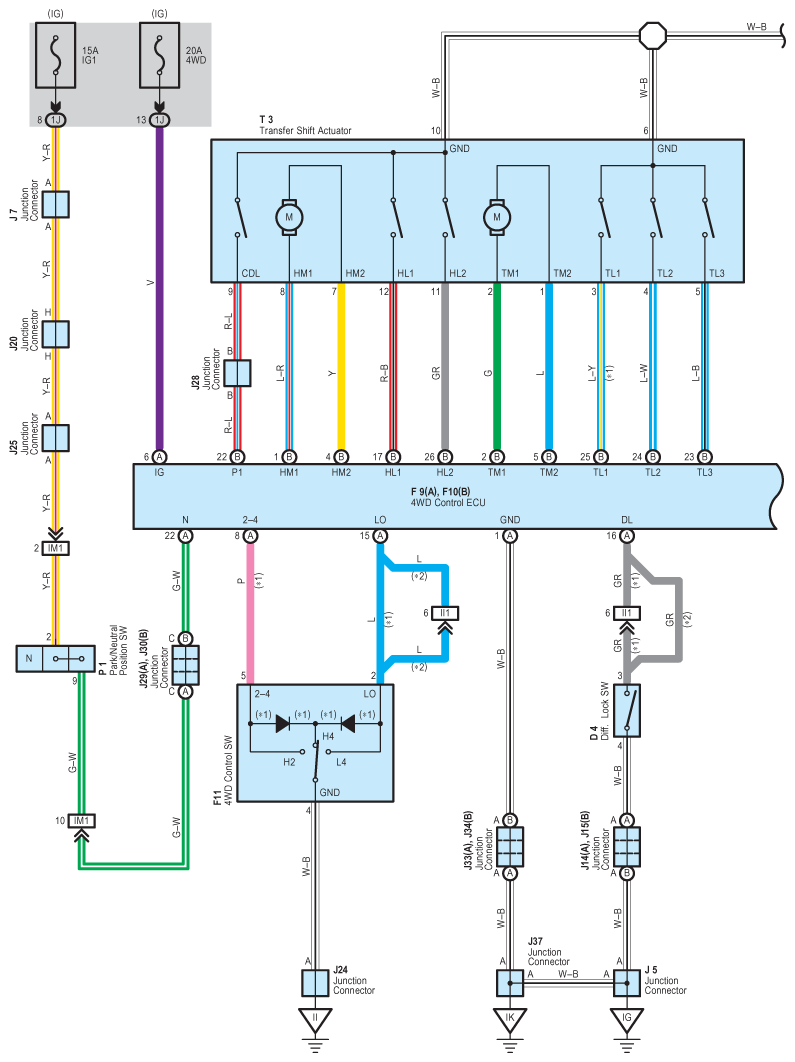

Fig 1: Multi Mode 4WD System Wiring Diagram (1 Of 4)
G08865388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

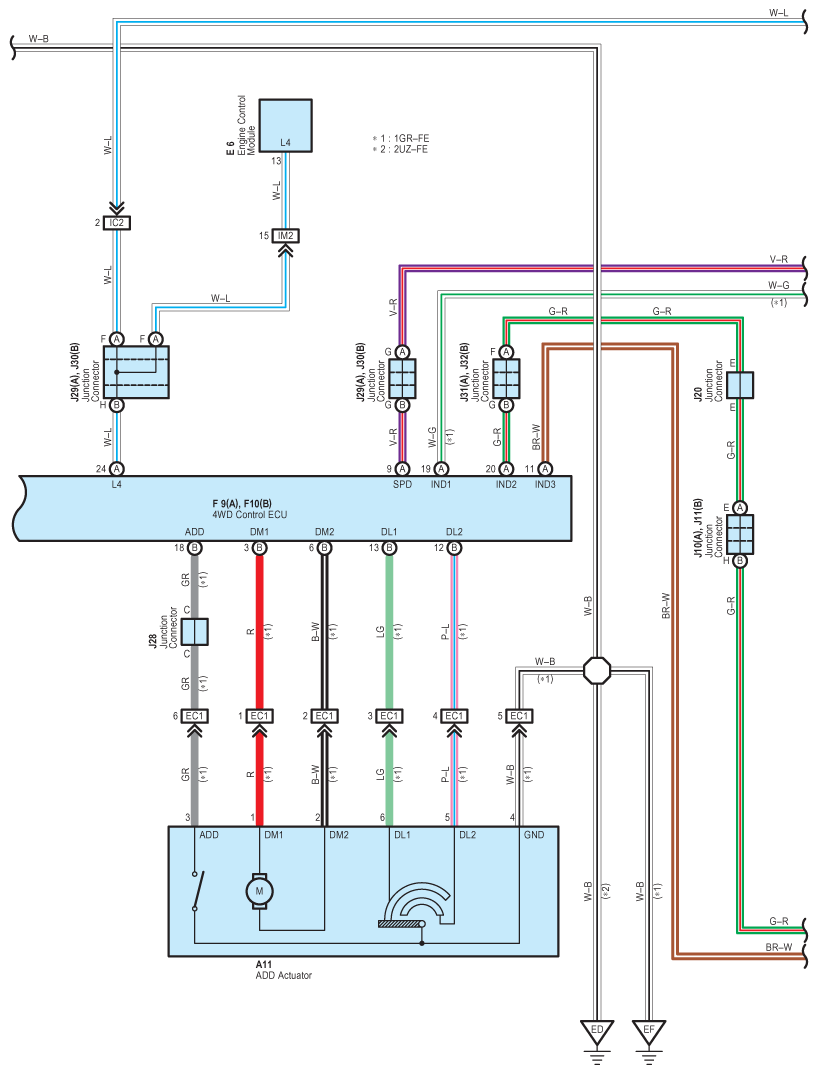

Fig 2: Multi Mode 4WD System Wiring Diagram (2 Of 4)
G08865389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

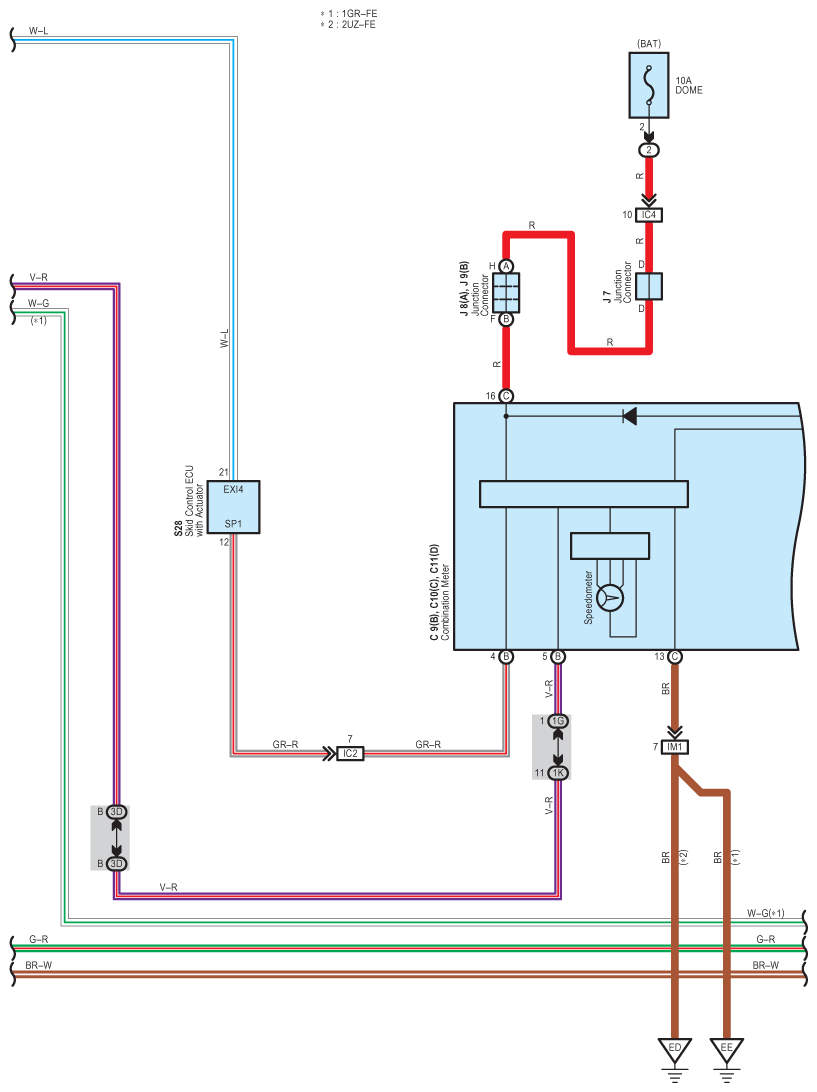

Fig 3: Multi Mode 4WD System Wiring Diagram (3 Of 4)
G08865390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

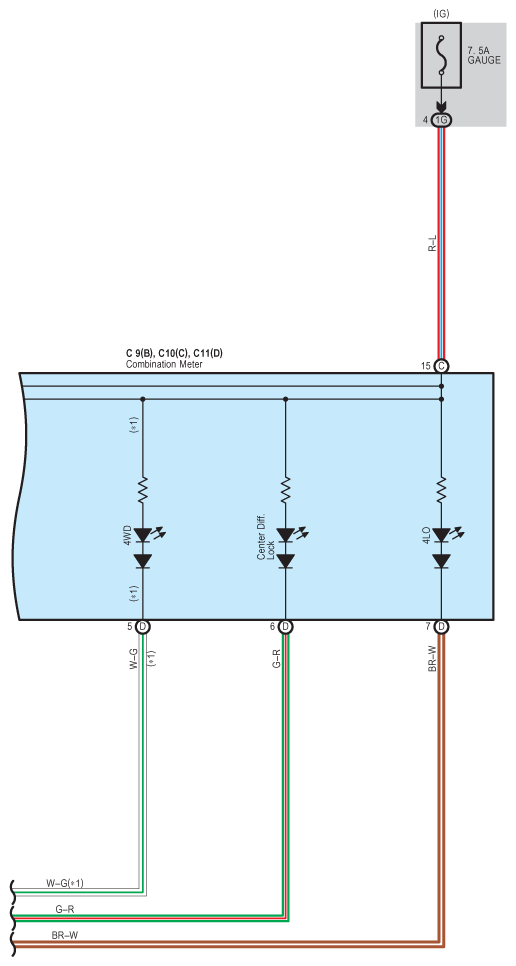

Fig 4: Multi Mode 4WD System Wiring Diagram (4 Of 4)
G08865391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
