Front Fog Light: Notes

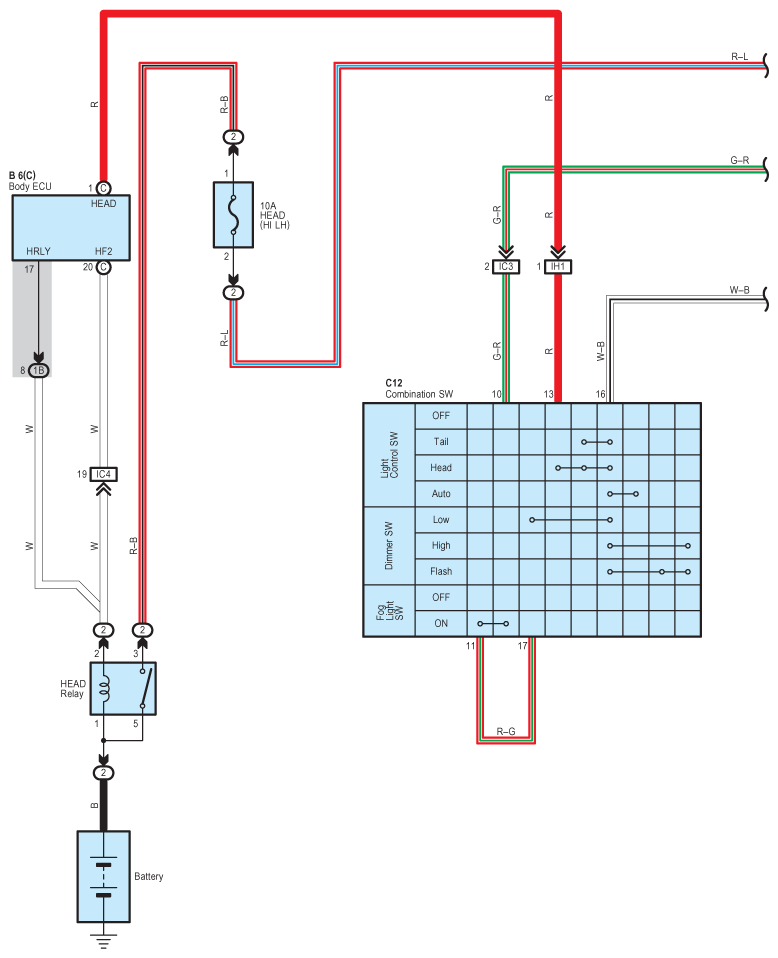

Fig 1: Front Fog Light System Wiring Diagram (1 Of 2)
G08865301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

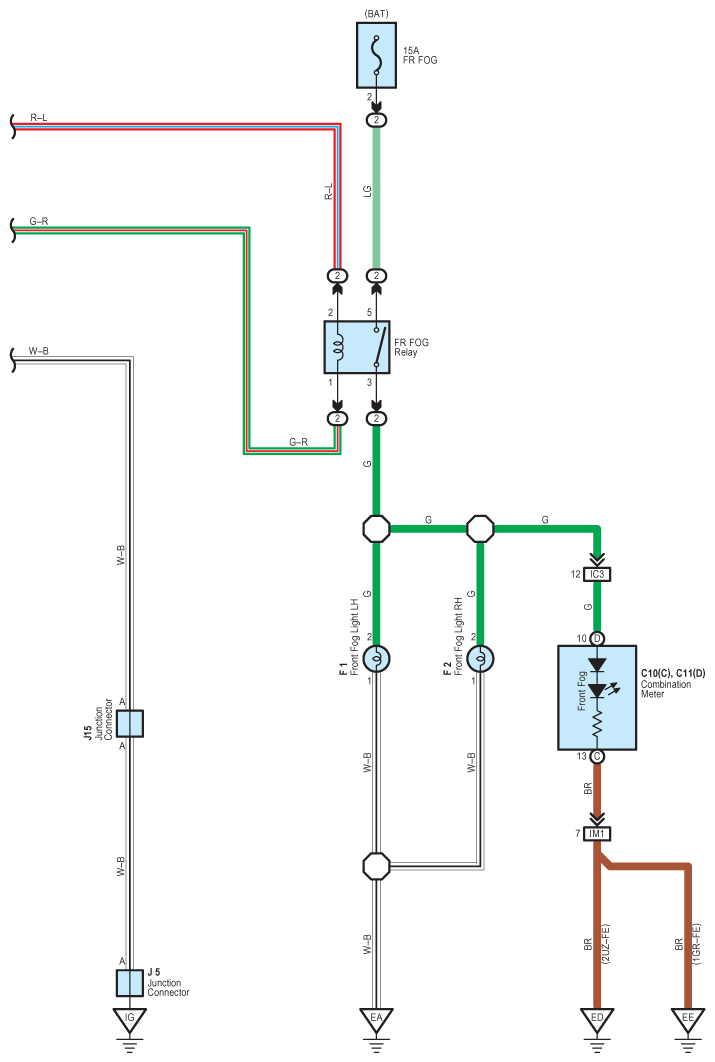

Fig 2: Front Fog Light System Wiring Diagram (2 Of 2)
G08865302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
