Engine Control for 2UZ-FE: Notes

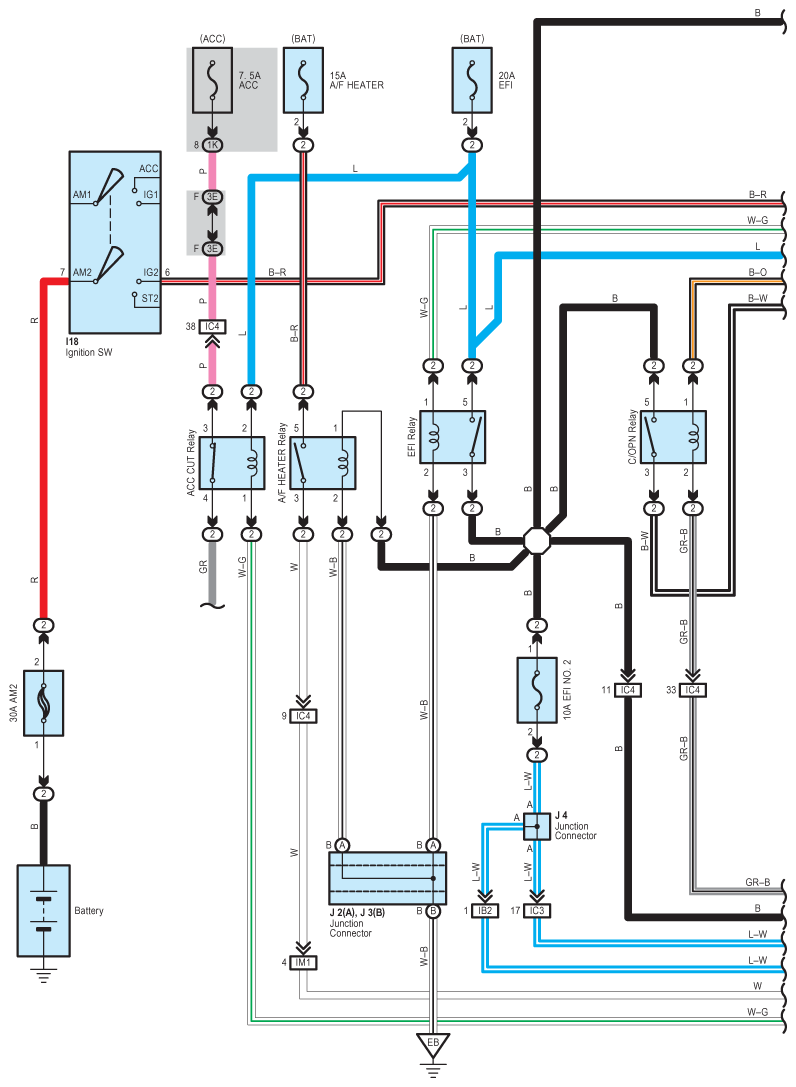

Fig 1: Engine Control For 2UZ-FE System Wiring Diagram (1 Of 10)
G08865252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

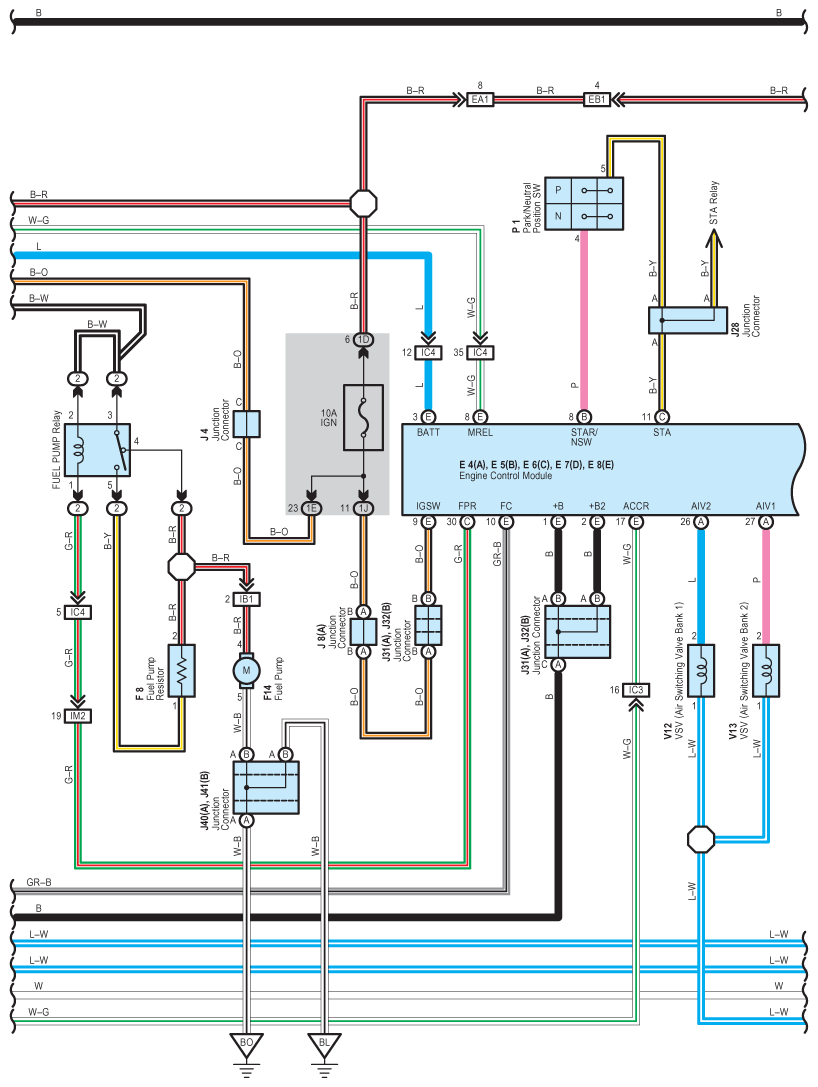

Fig 2: Engine Control For 2UZ-FE System Wiring Diagram (2 Of 10)
G08865253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

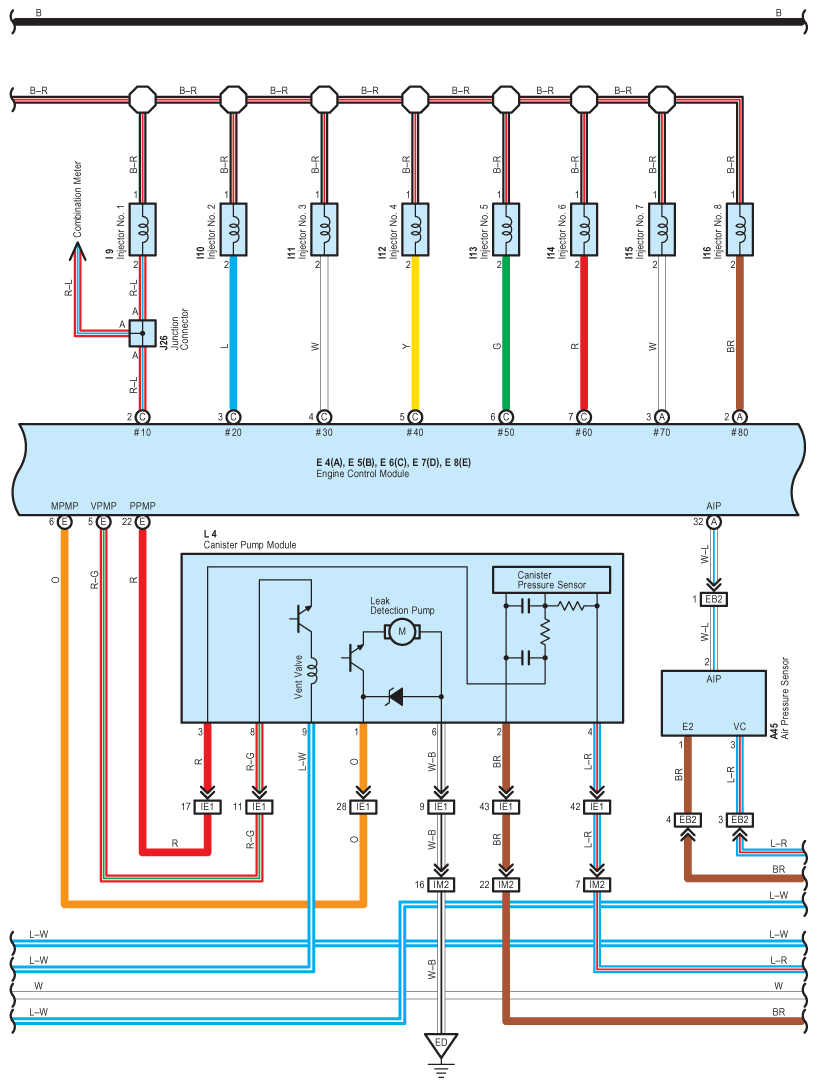

Fig 3: Engine Control For 2UZ-FE System Wiring Diagram (3 Of 10)
G08865254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

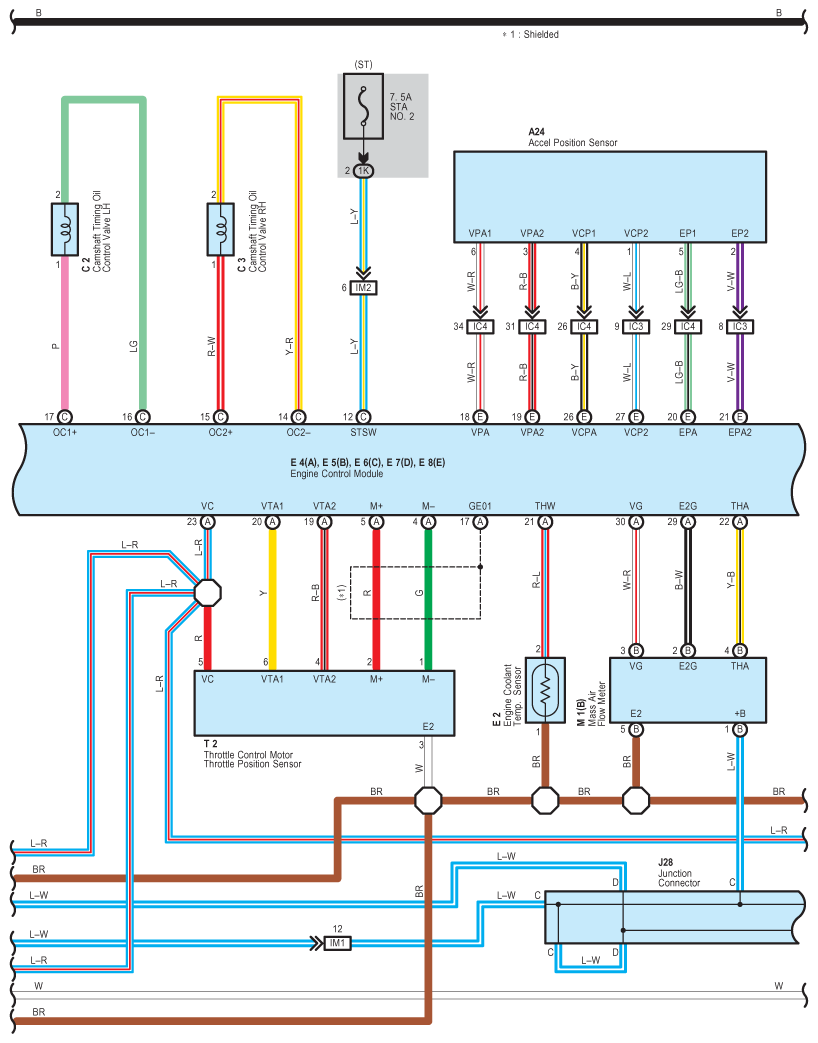

Fig 4: Engine Control For 2UZ-FE System Wiring Diagram (4 Of 10)
G08865255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

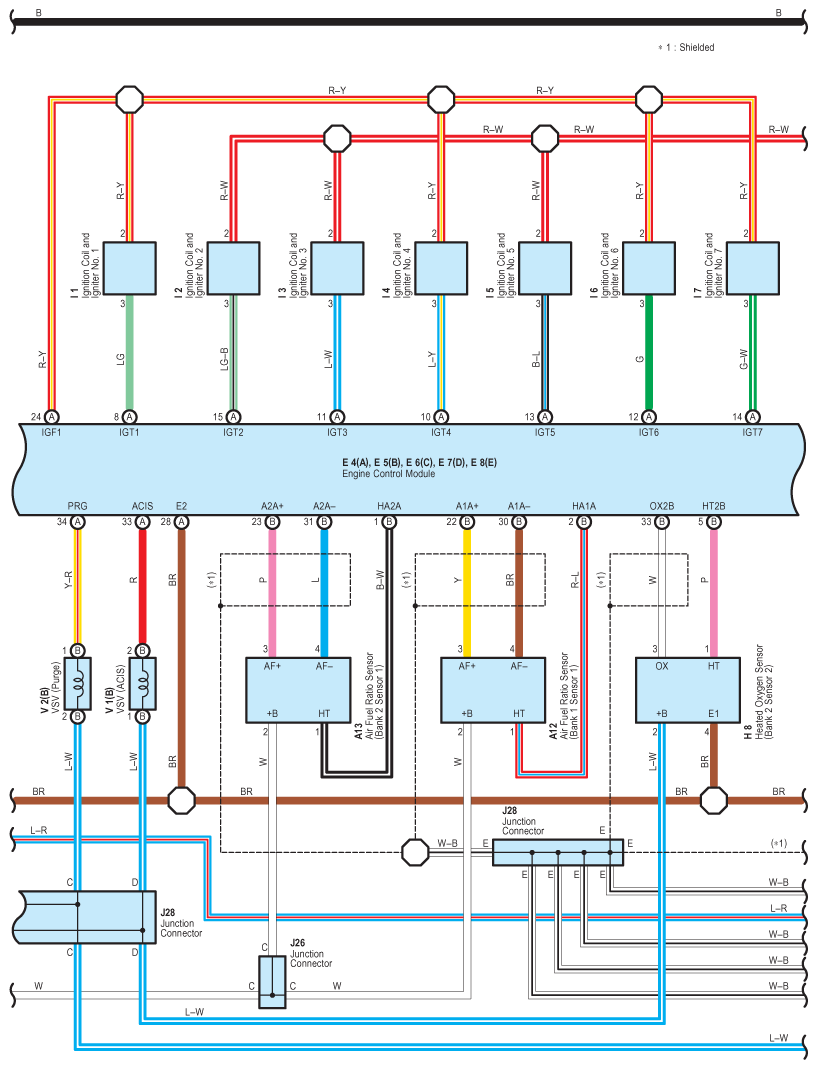

Fig 5: Engine Control For 2UZ-FE System Wiring Diagram (5 Of 10)
G08865256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

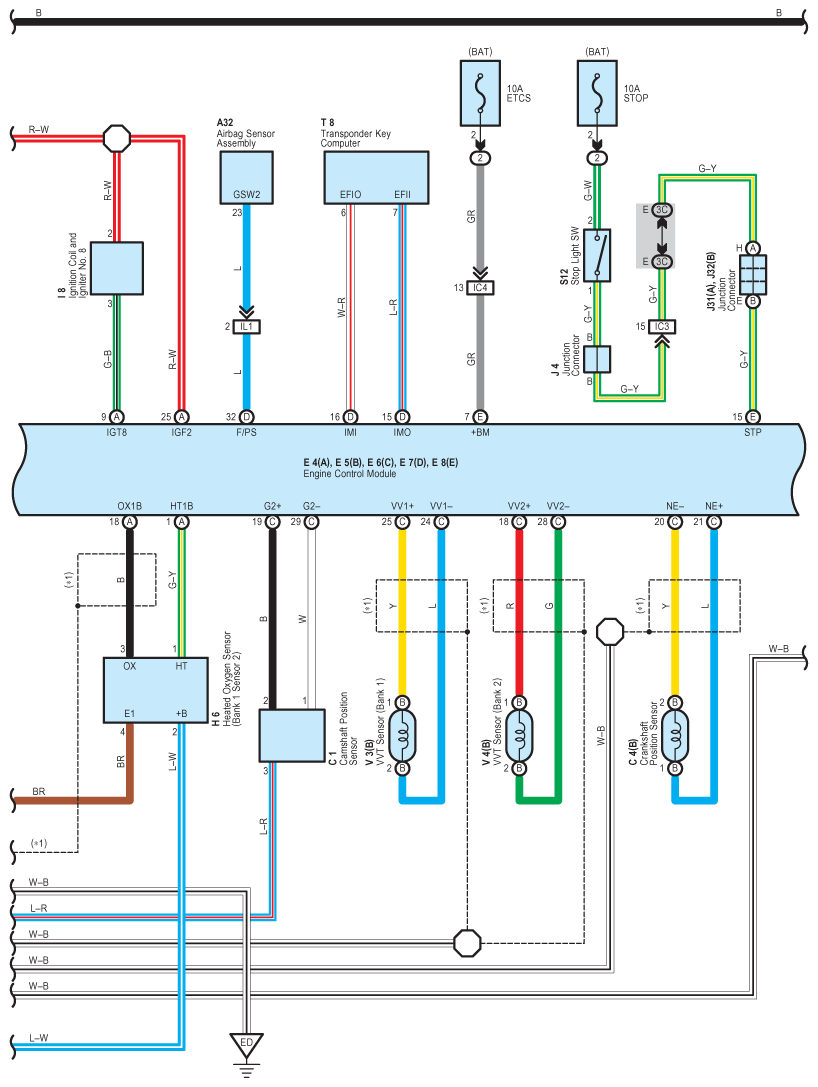

Fig 6: Engine Control For 2UZ-FE System Wiring Diagram (6 Of 10)
G08865257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

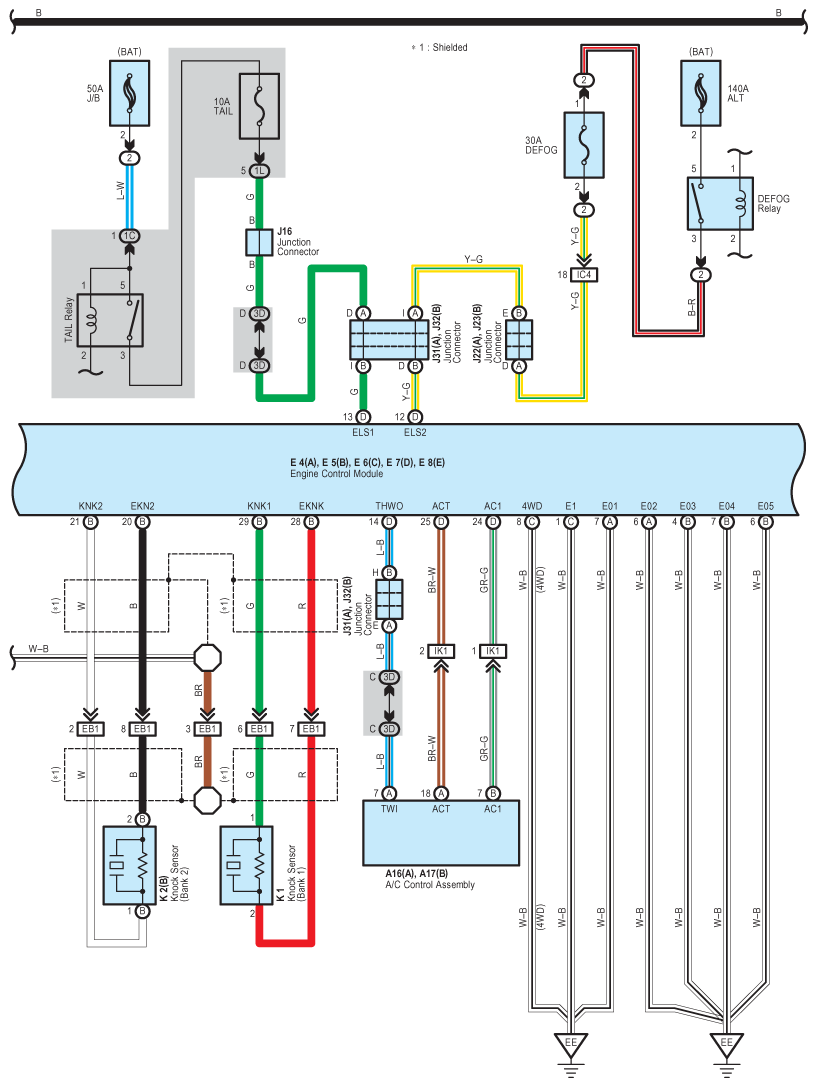

Fig 7: Engine Control For 2UZ-FE System Wiring Diagram (7 Of 10)
G08865258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

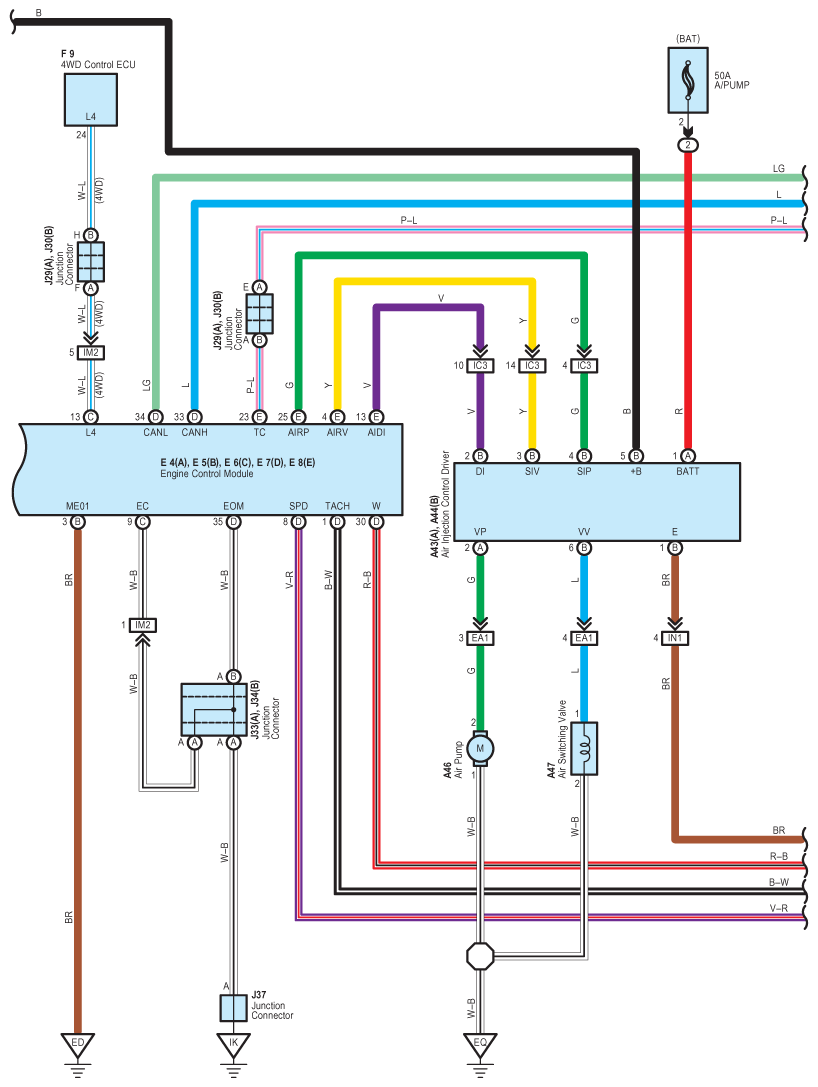

Fig 8: Engine Control For 2UZ-FE System Wiring Diagram (8 Of 10)
G08865259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

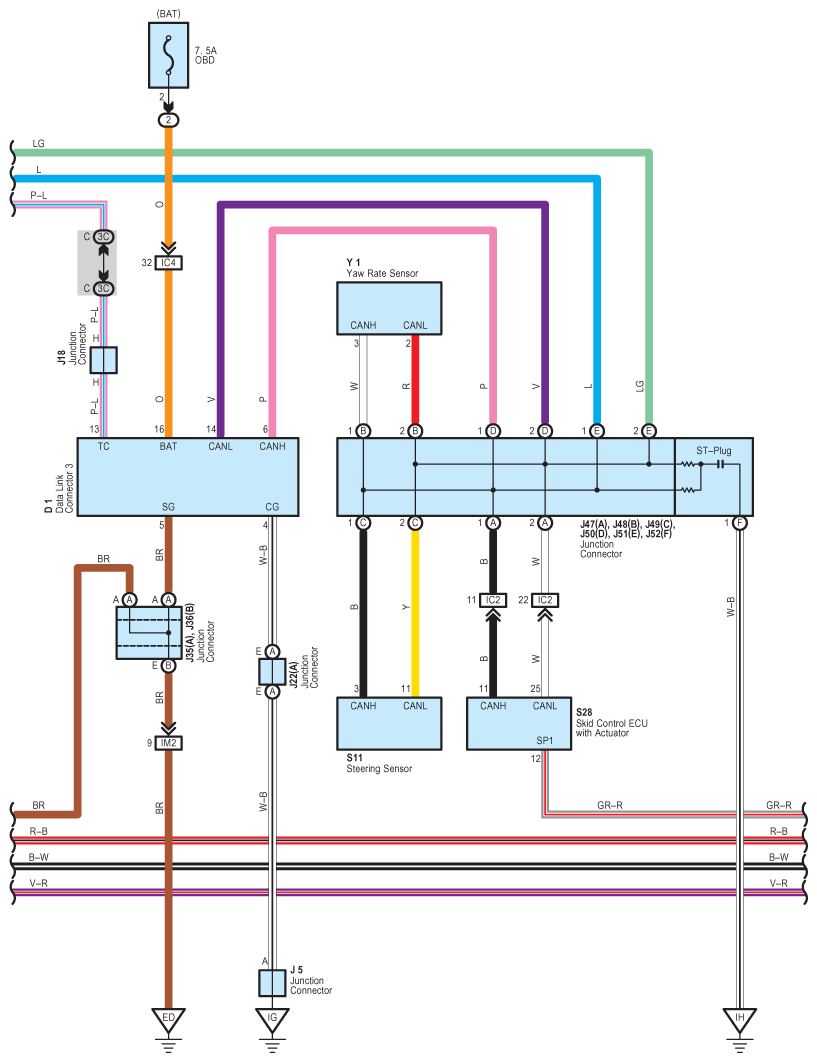

Fig 9: Engine Control For 2UZ-FE System Wiring Diagram (9 Of 10)
G08865260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

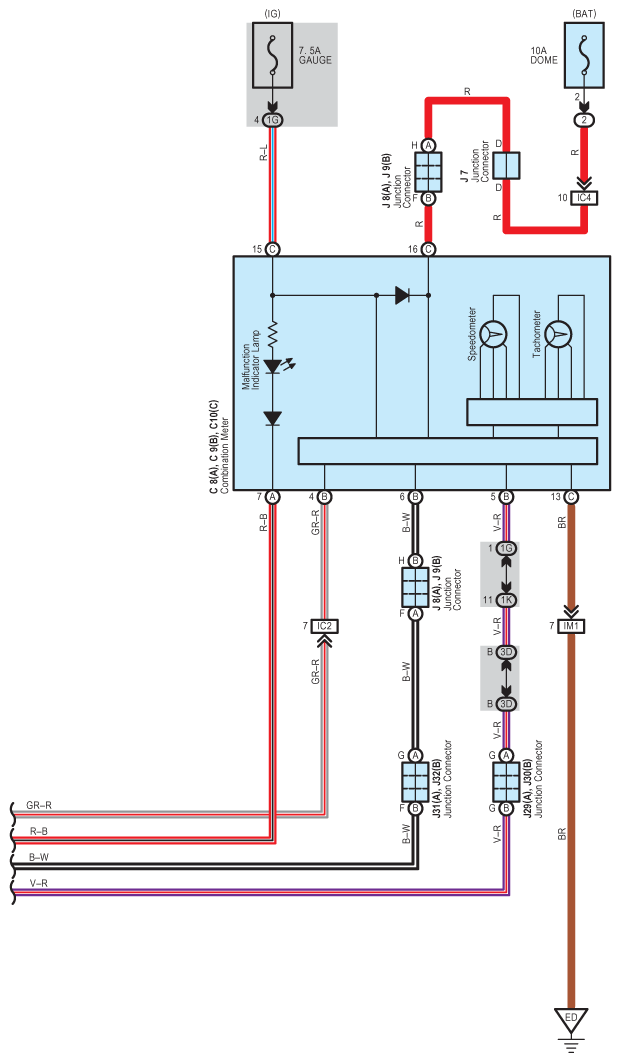

Fig 10: Engine Control For 2UZ-FE System Wiring Diagram (10 Of 10)
G08865261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
