Engine Control for 1GR-FE: Notes

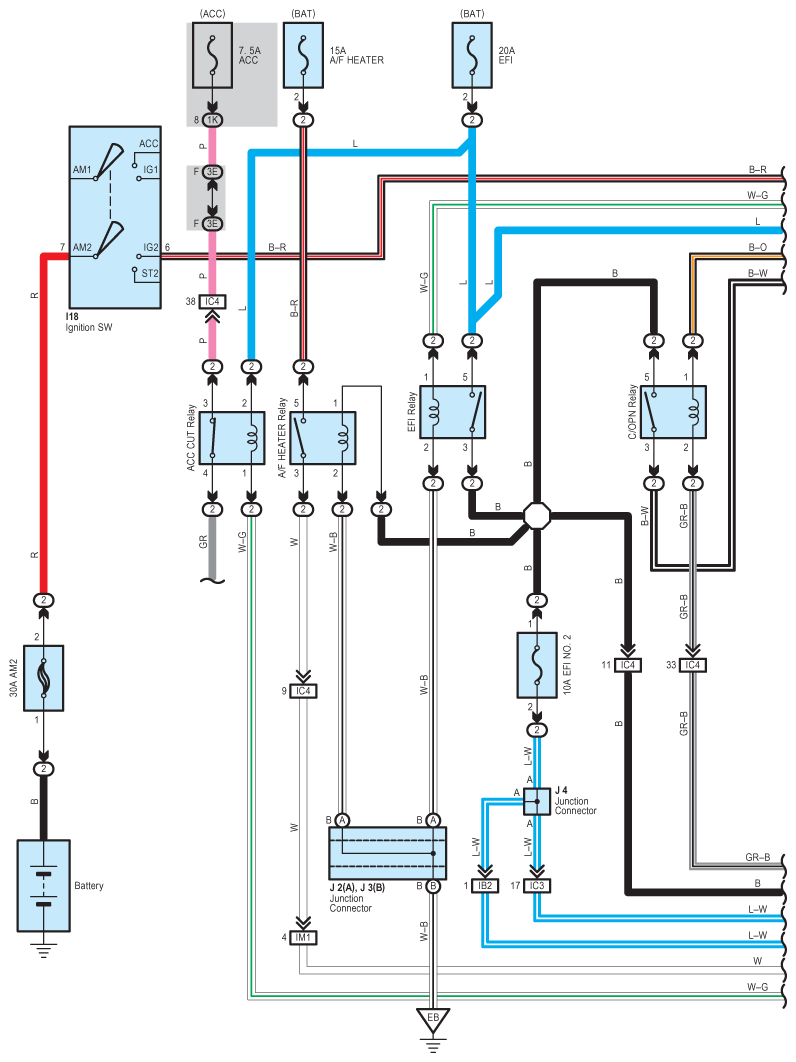

Fig 1: Engine Control For 1GR-FE System Wiring Diagram (1 Of 10)
G08865262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

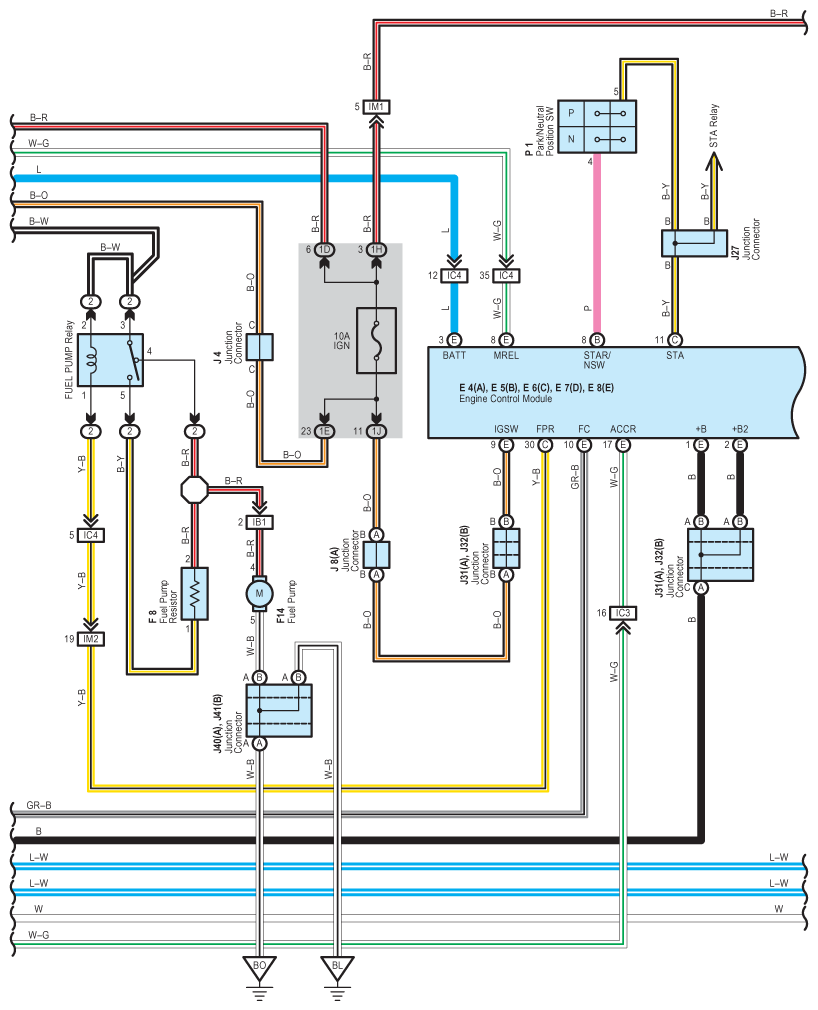

Fig 2: Engine Control For 1GR-FE System Wiring Diagram (2 Of 10)
G08865263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

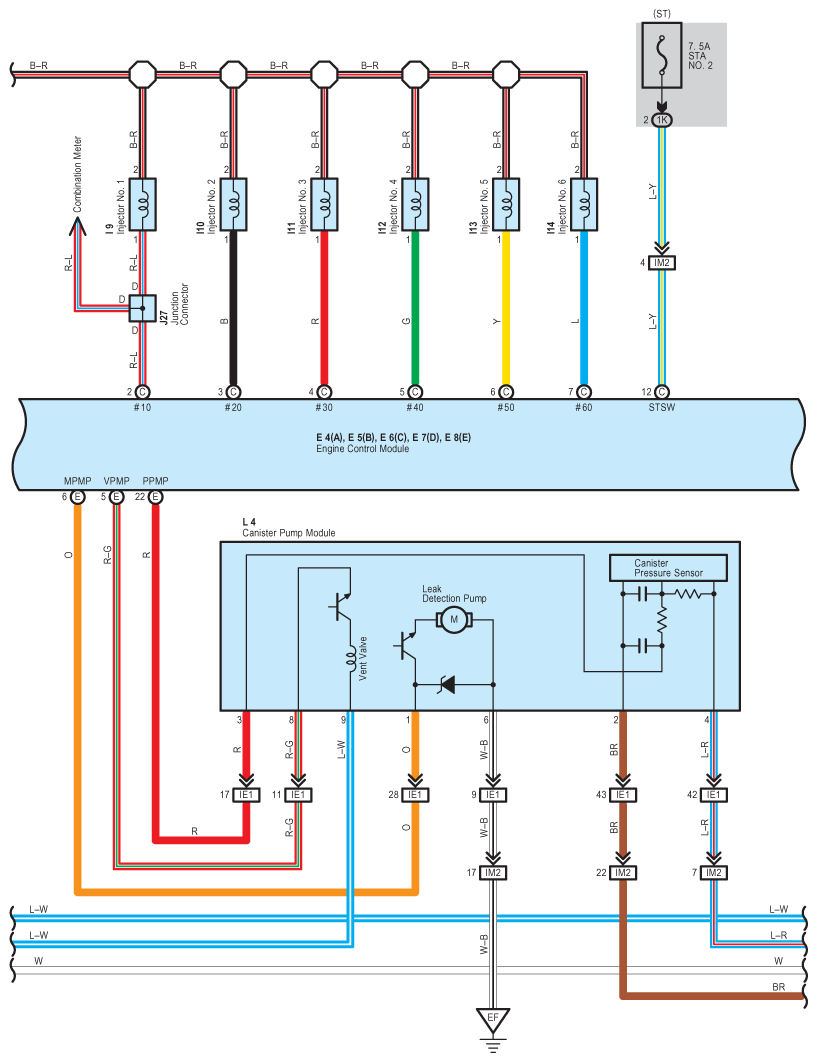

Fig 3: Engine Control For 1GR-FE System Wiring Diagram (3 Of 10)
G08865264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

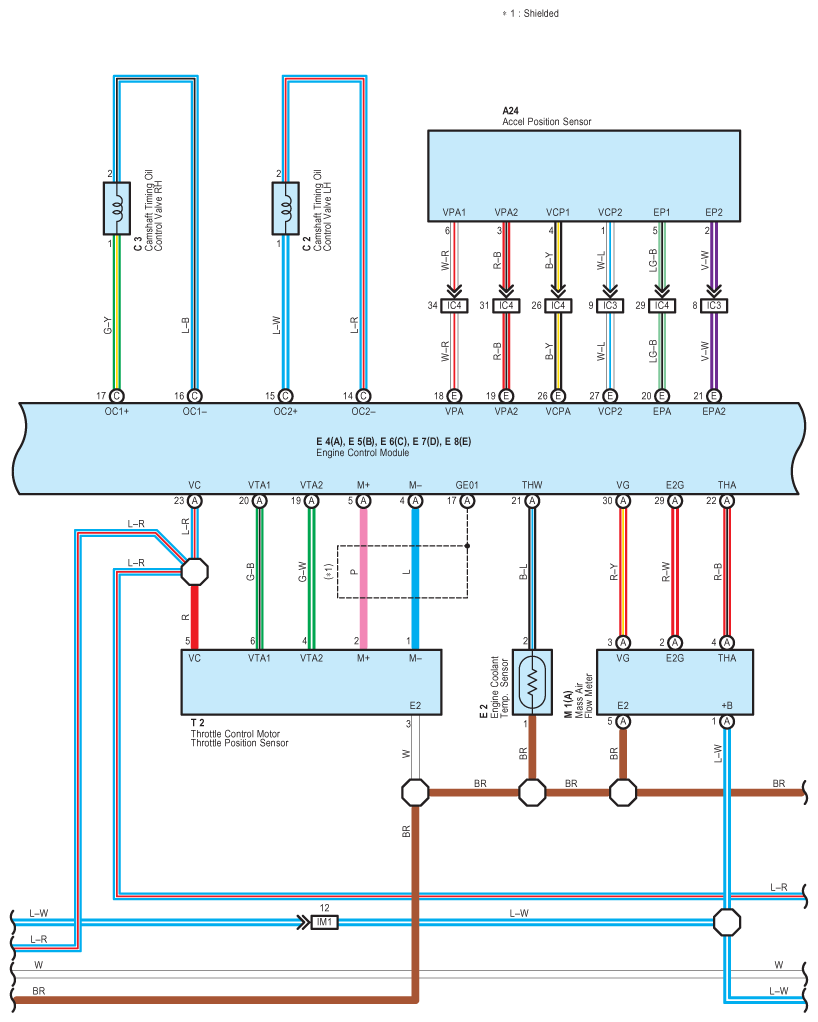

Fig 4: Engine Control For 1GR-FE System Wiring Diagram (4 Of 10)
G08865265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

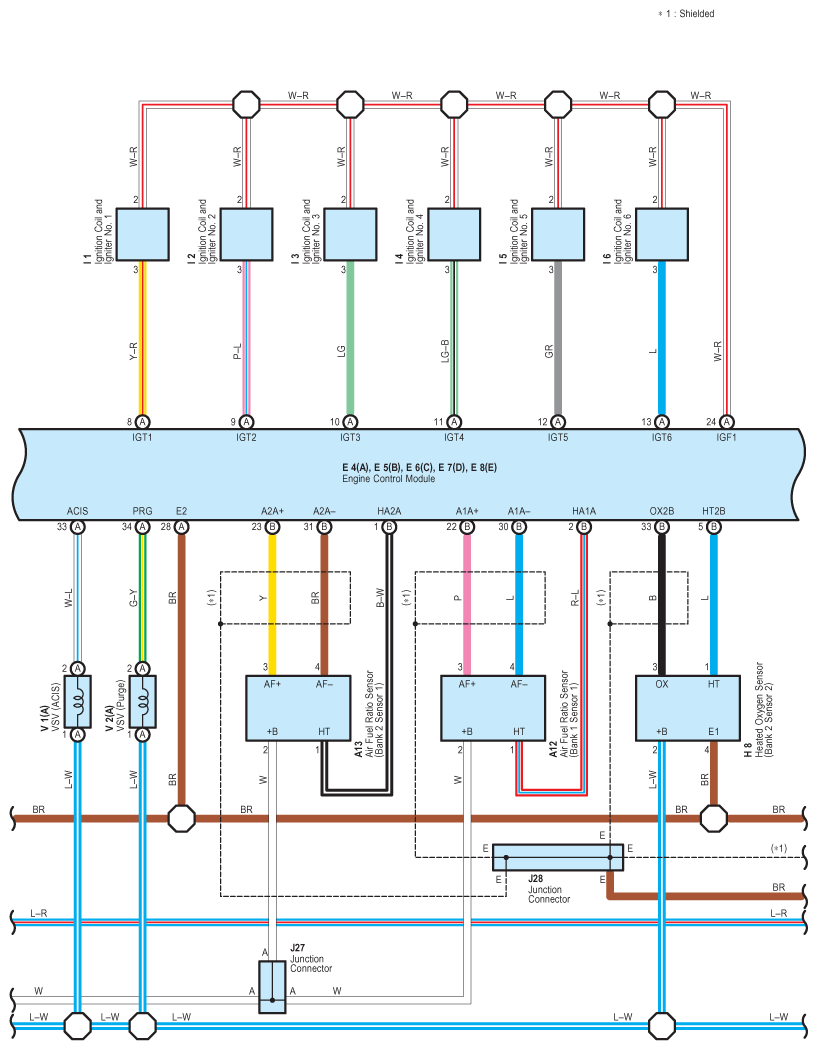

Fig 5: Engine Control For 1GR-FE System Wiring Diagram (5 Of 10)
G08865266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

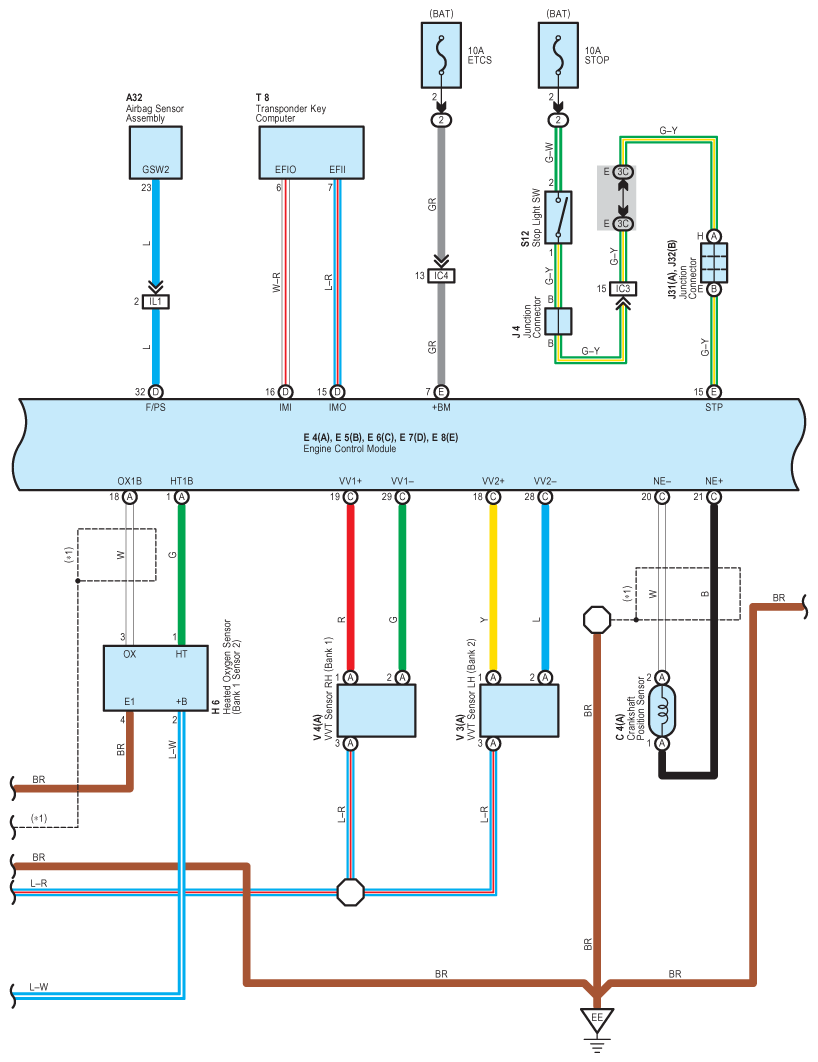

Fig 6: Engine Control For 1GR-FE System Wiring Diagram (6 Of 10)
G08865267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

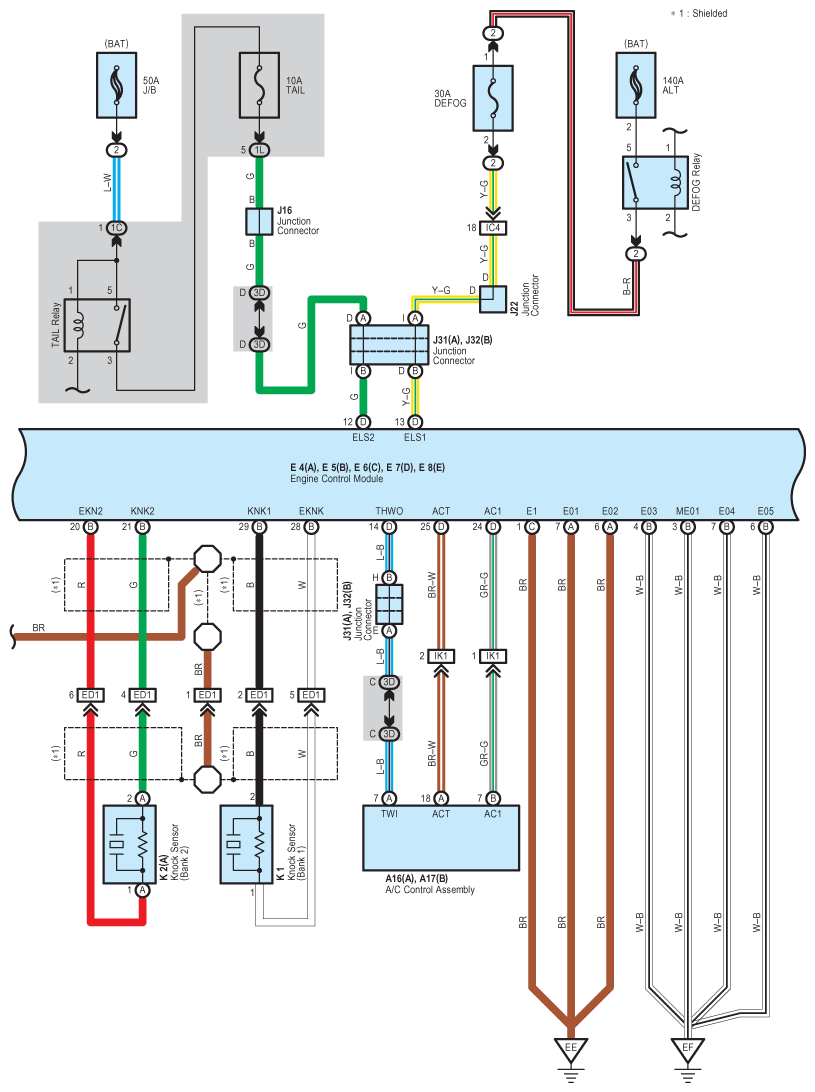

Fig 7: Engine Control For 1GR-FE System Wiring Diagram (7 Of 10)
G08865268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

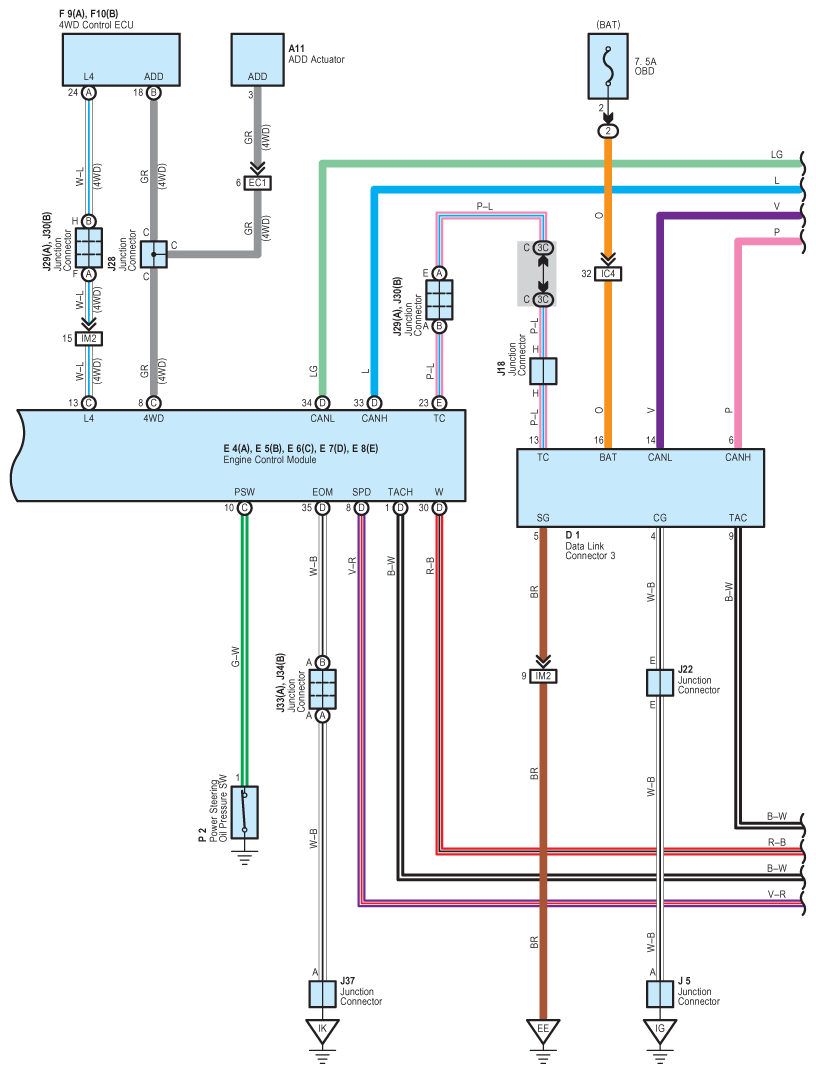

Fig 8: Engine Control For 1GR-FE System Wiring Diagram (8 Of 10)
G08865269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

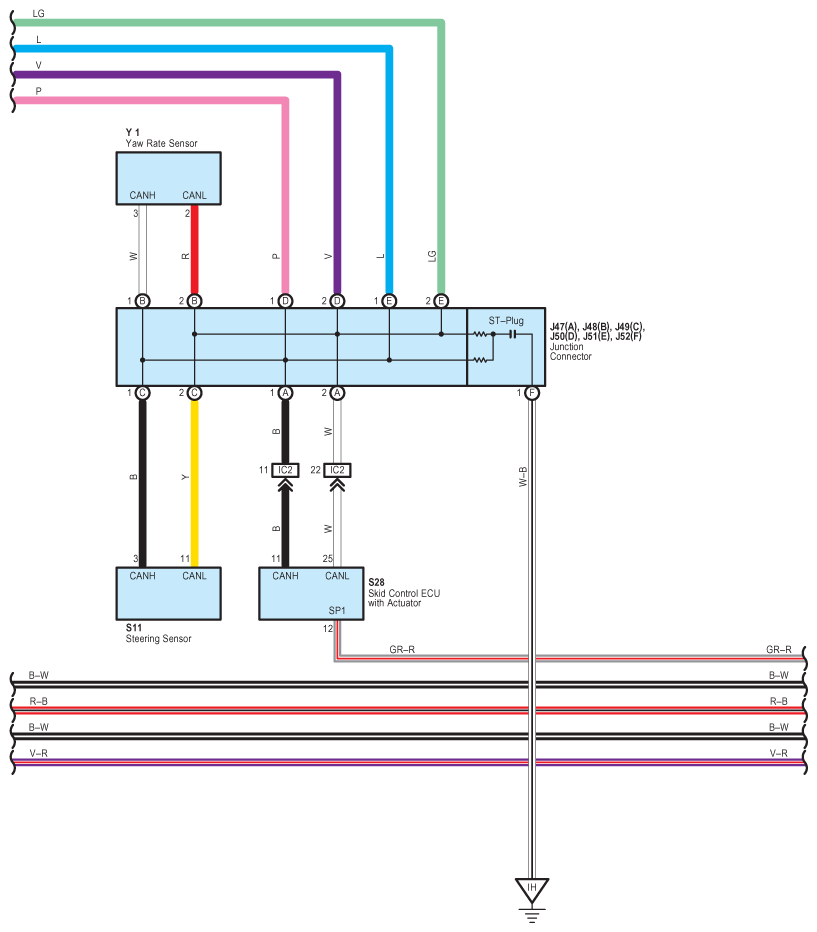

Fig 9: Engine Control For 1GR-FE System Wiring Diagram (9 Of 10)
G08865270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

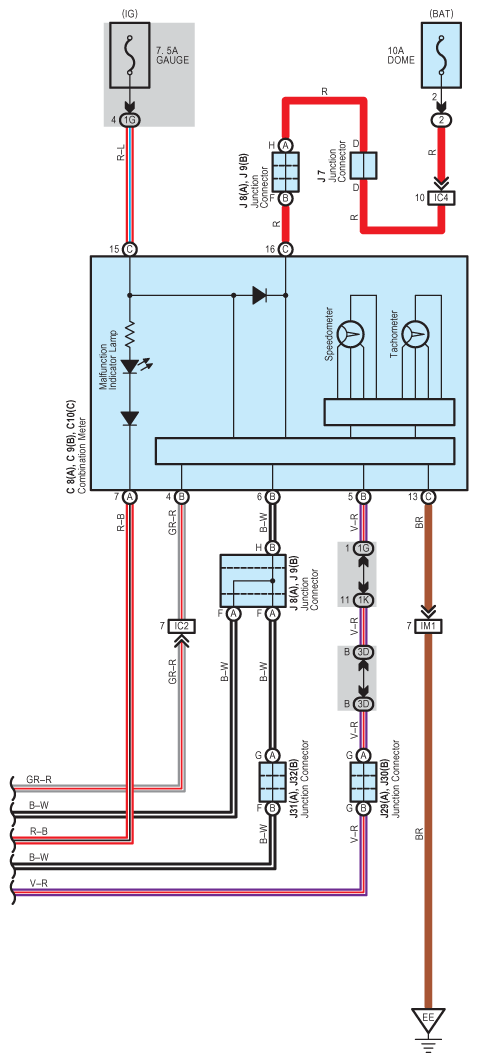

Fig 10: Engine Control For 1GR-FE System Wiring Diagram (10 Of 10)
G08865271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
