Cruise Control for 1GR-FE: Notes

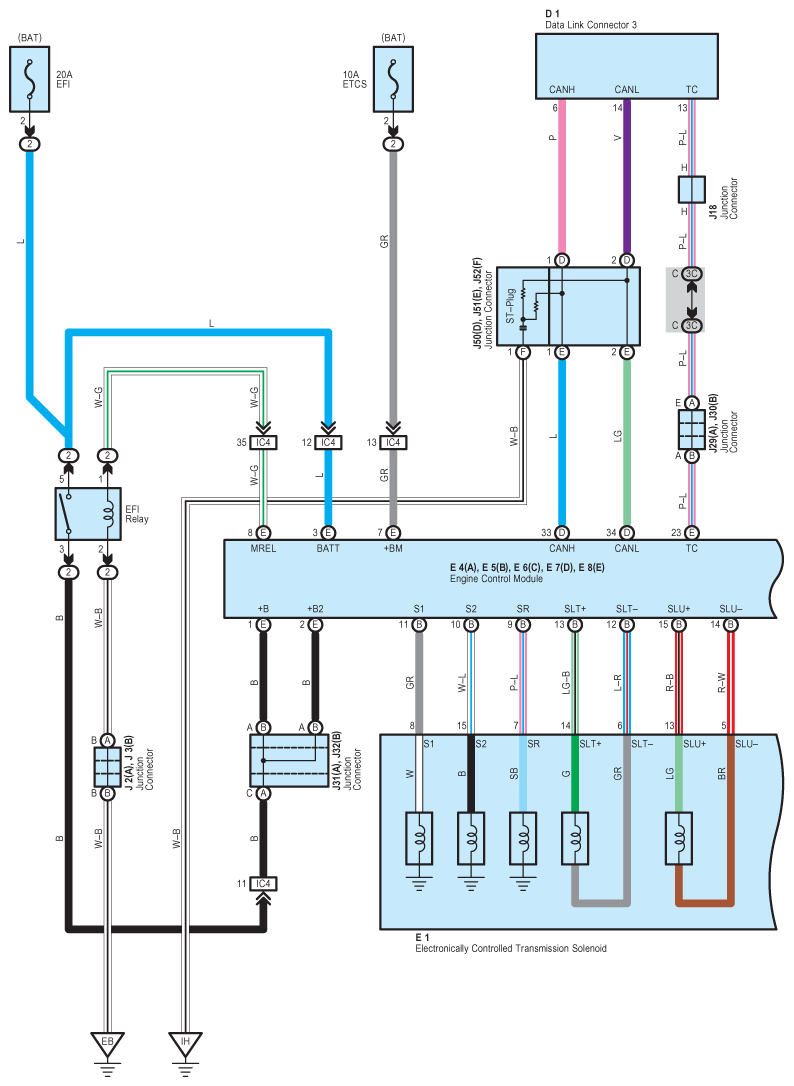

Fig 1: Cruise Control For 1GR-FE System Wiring Diagram (1 Of 4)
G08865374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

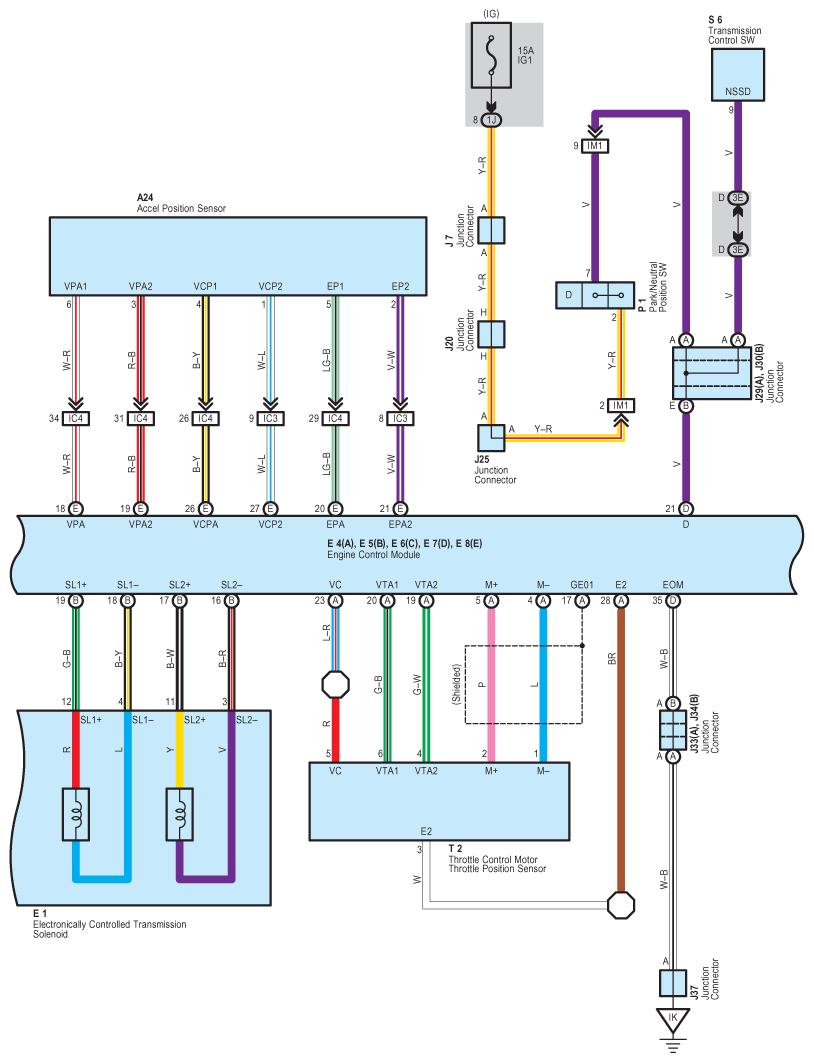

Fig 2: Cruise Control For 1GR-FE System Wiring Diagram (2 Of 4)
G08865375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

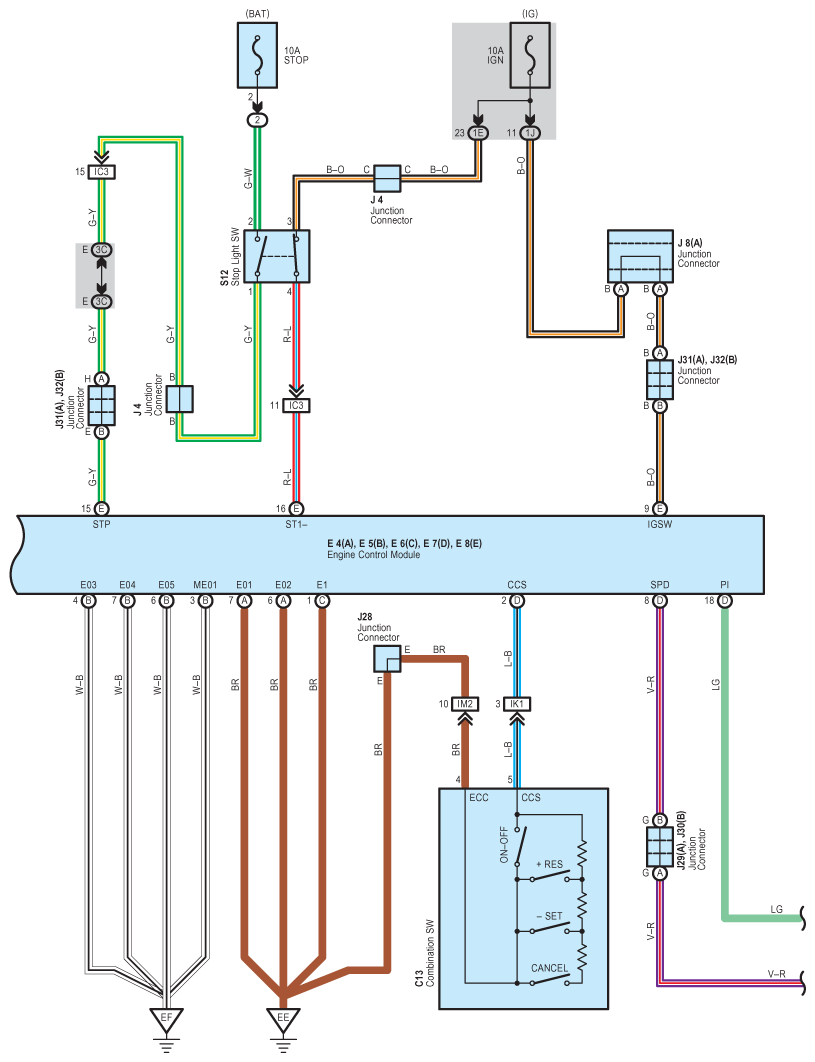

Fig 3: Cruise Control For 1GR-FE System Wiring Diagram (3 Of 4)
G08865376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

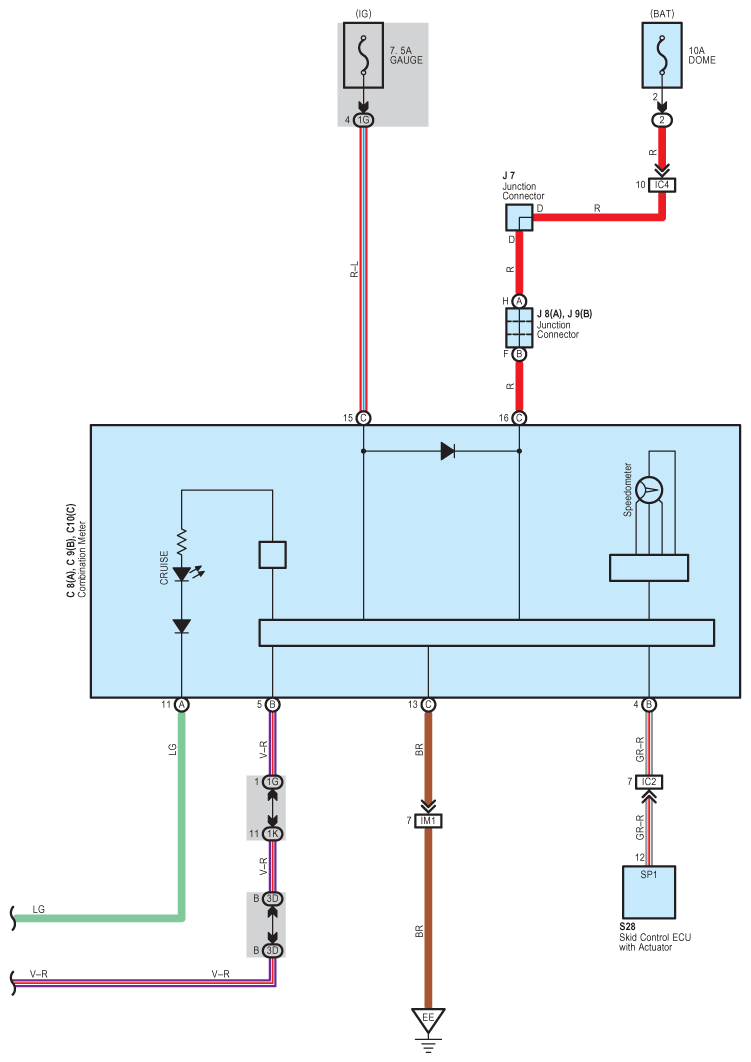

Fig 4: Cruise Control For 1GR-FE System Wiring Diagram (4 Of 4)
G08865377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
