Automatic Light Control: Notes

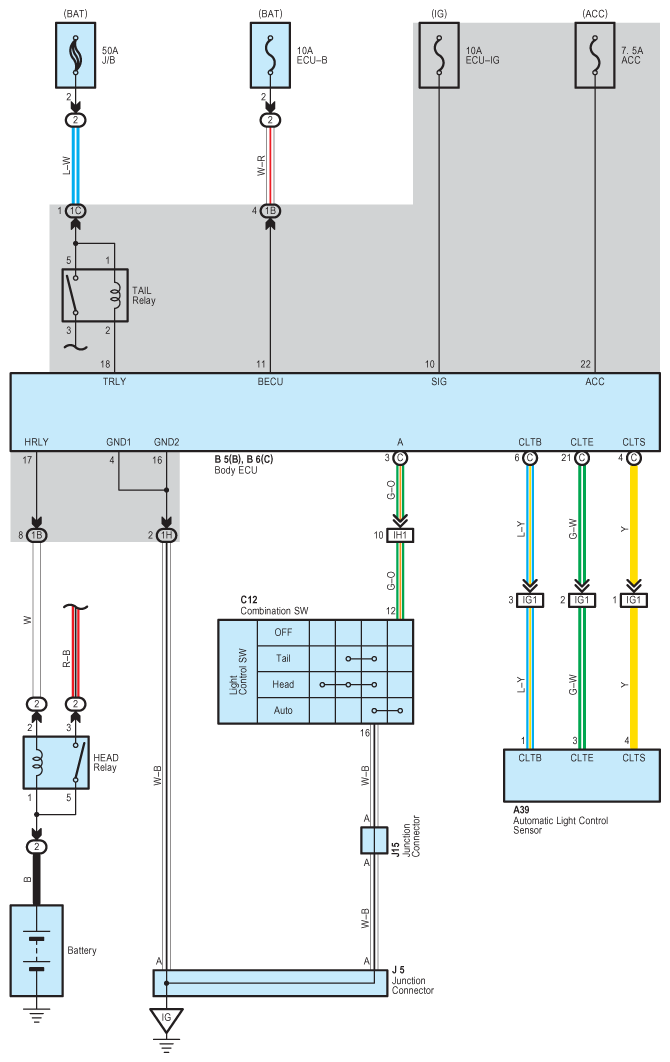

Fig 1: System Wiring Diagram System Wiring Diagram

G08865303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
