Windshield Glass: Components

Fig 1: Identifying Windshield Glass Components (1 Of 2)
G04967147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

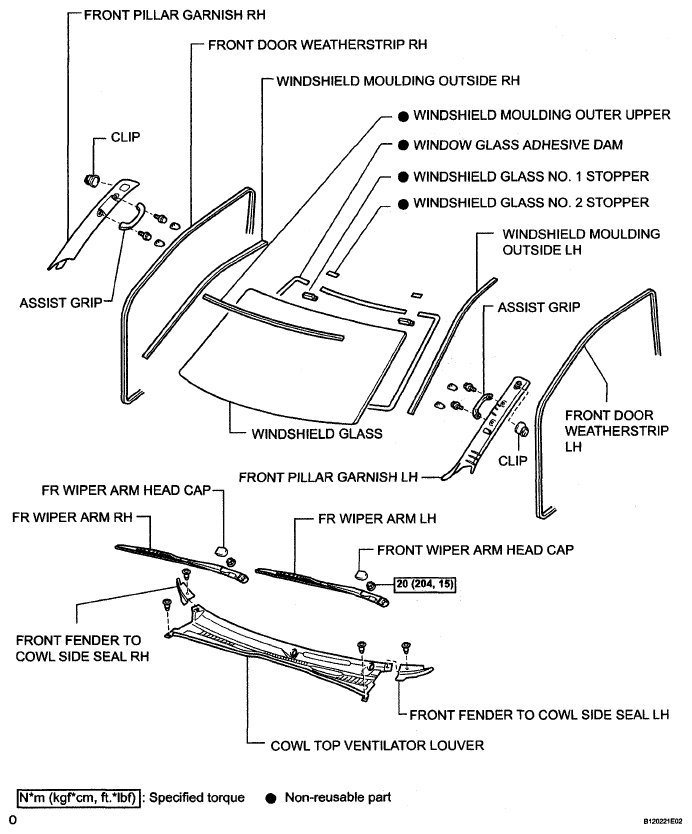

Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 2)
G04967148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
