Home >> Toyota >> 2007 >> 4Runner Limited, 4.7 T, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/Window Glass >> Window Defogger System >> Parts Location

Parts Location

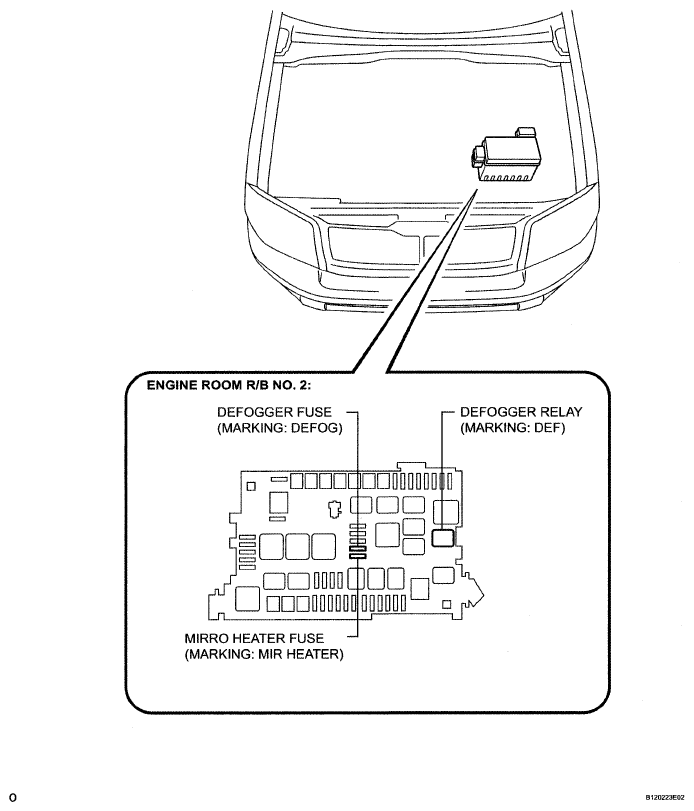

Fig 1: Identifying Window Defogger System Parts Location (1 Of 2)
G04967164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

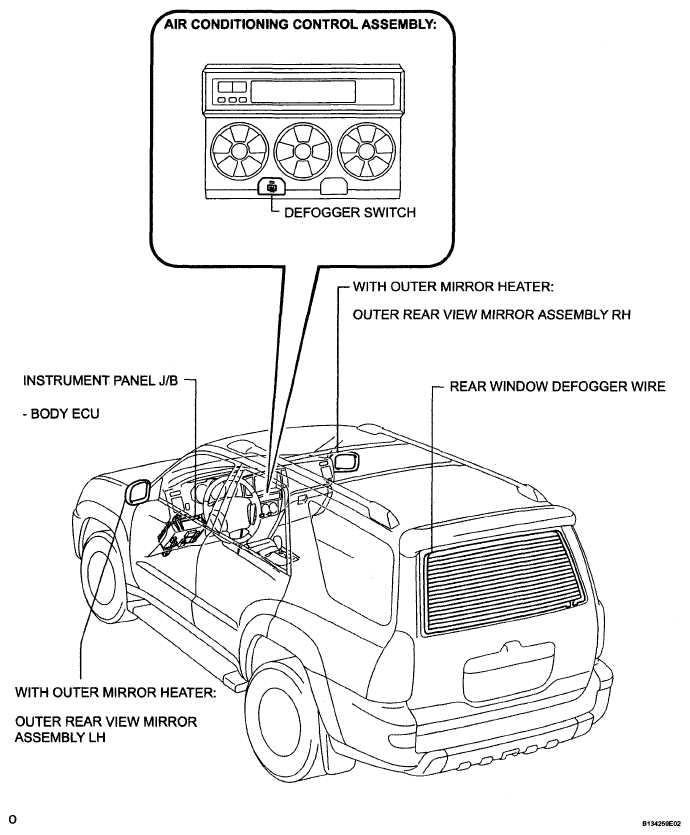

Fig 2: Identifying Window Defogger System Parts Location (2 Of 2)
G04967165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
