Remote Up / Down Function does not Operate: Wiring Diagram

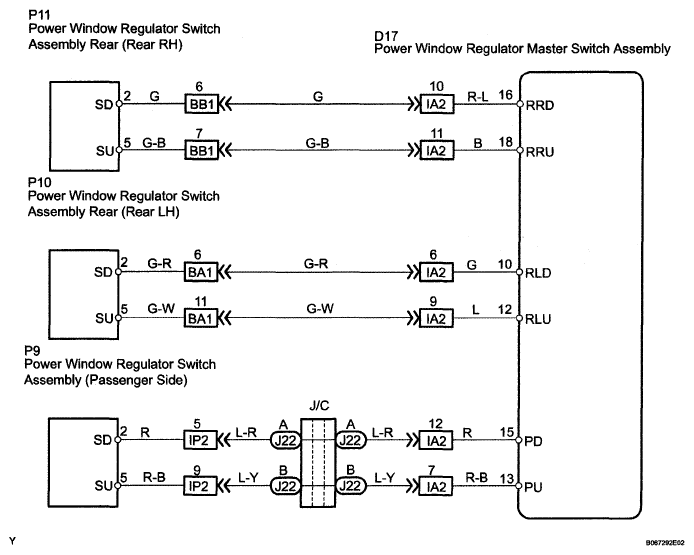

Fig 1: Power Window Regulator Switch Assembly Rear Wiring Diagram

G04967117

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
