Parts Location

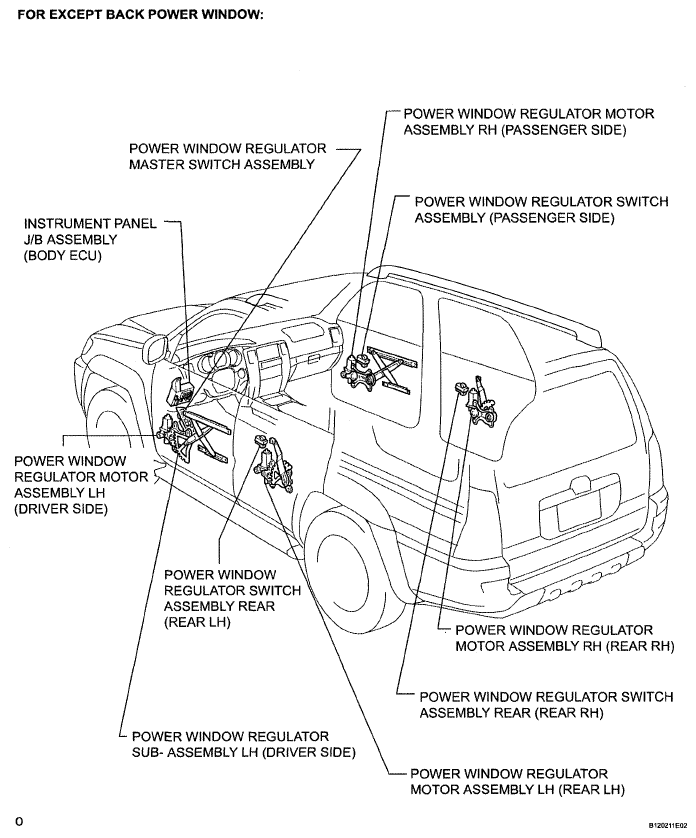

Fig 1: Identifying Power Window Control System Parts Location (1 Of 3)
G04967102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

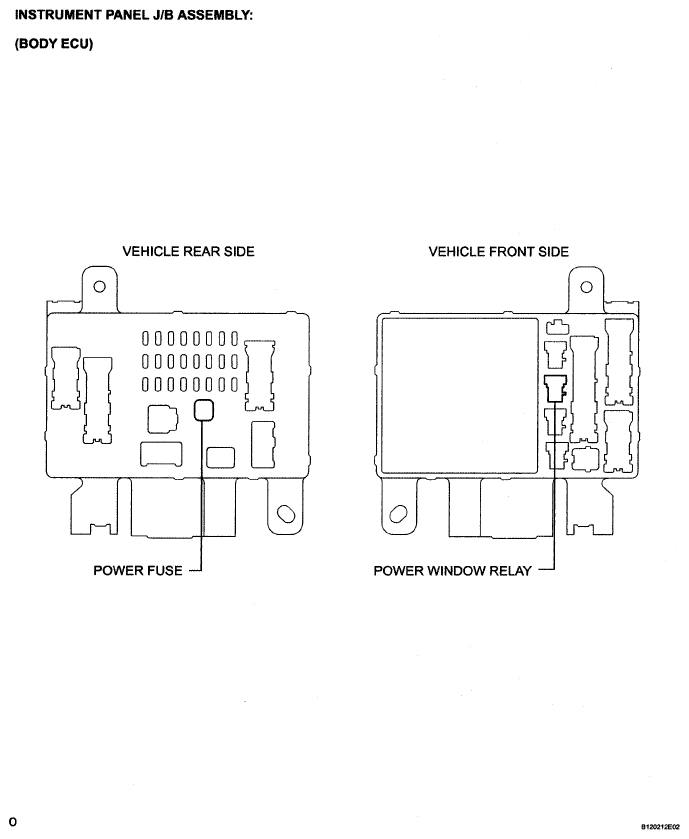

Fig 2: Identifying Power Window Control System Parts Location (2 Of 3)
G04967103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

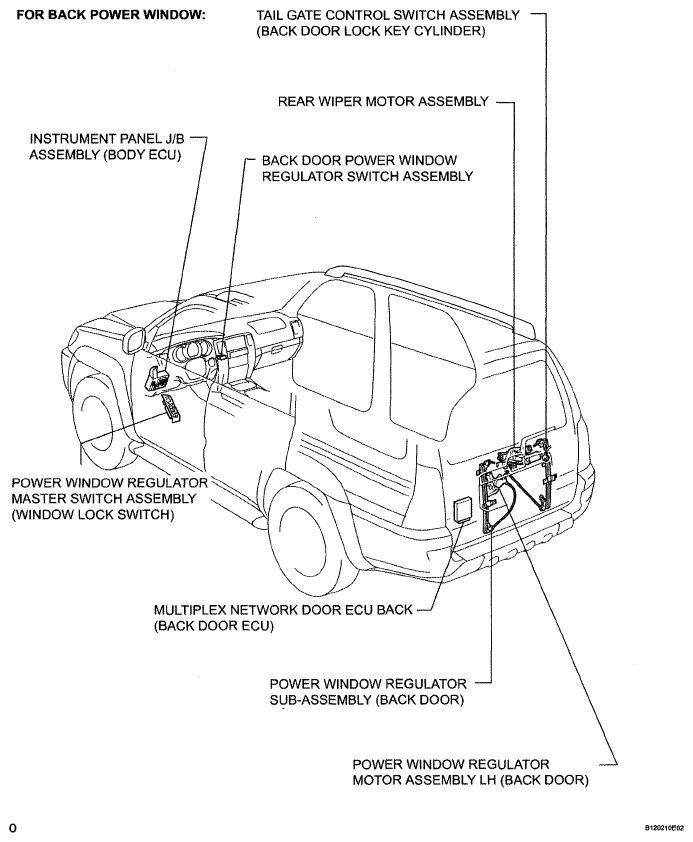

Fig 3: Identifying Power Window Control System Parts Location (3 Of 3)
G04967104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
