Home
>>
Toyota
>>
2007
>>
4Runner Limited, 4.0 U, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System (1GR-FE)
>>
Throttle Body
>>
Components
Throttle Body: Components

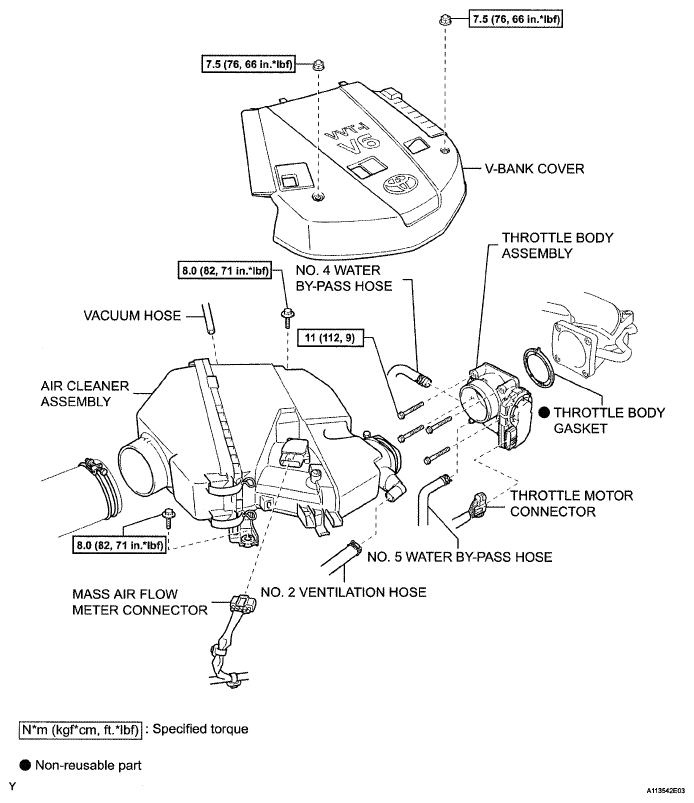

Fig 1: Throttle Body Replacement Components With Torque Specifications
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
