Automatic Transaxle Unit: Components

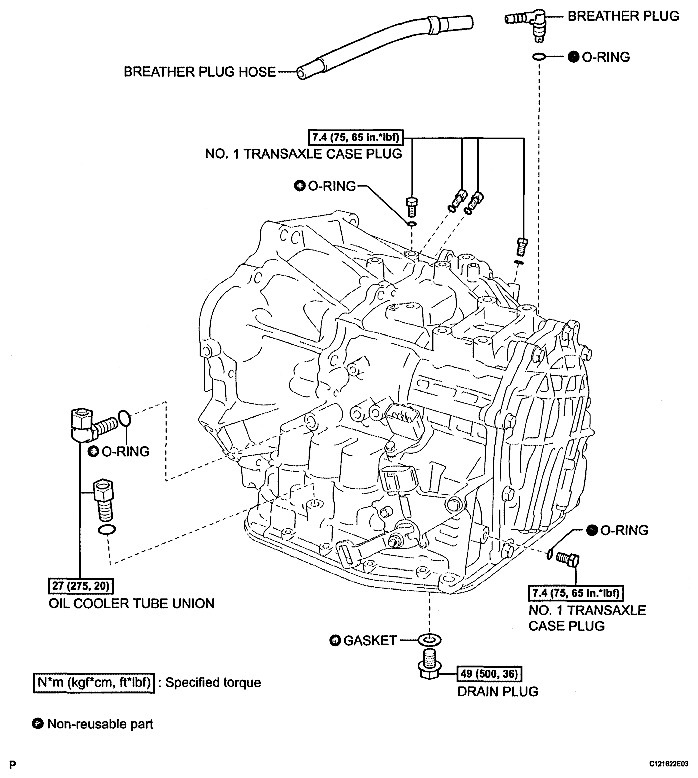

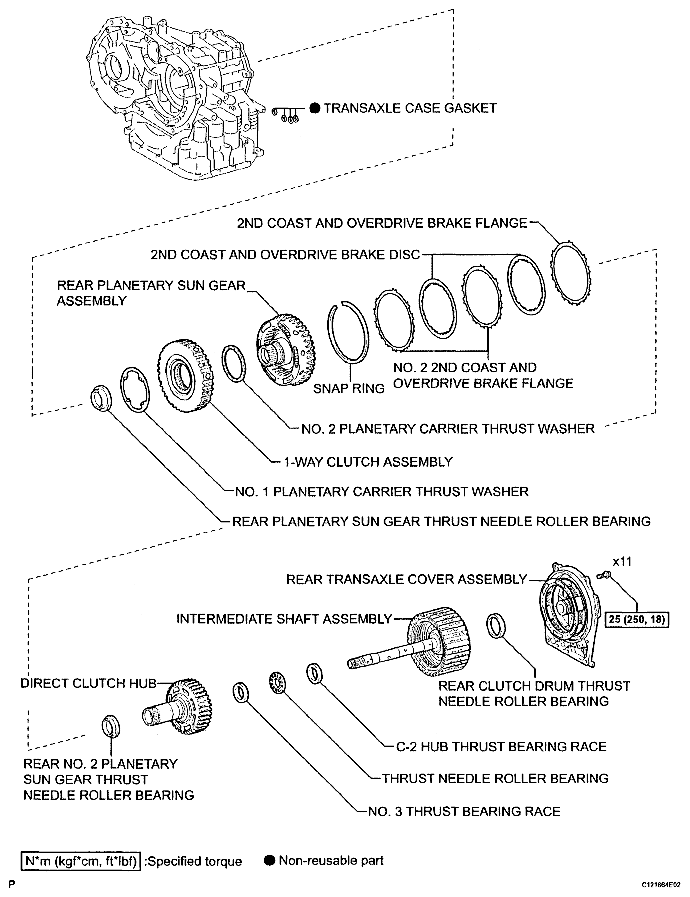

Fig 1: Automatic Transaxle Unit Components (1 Of 10) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

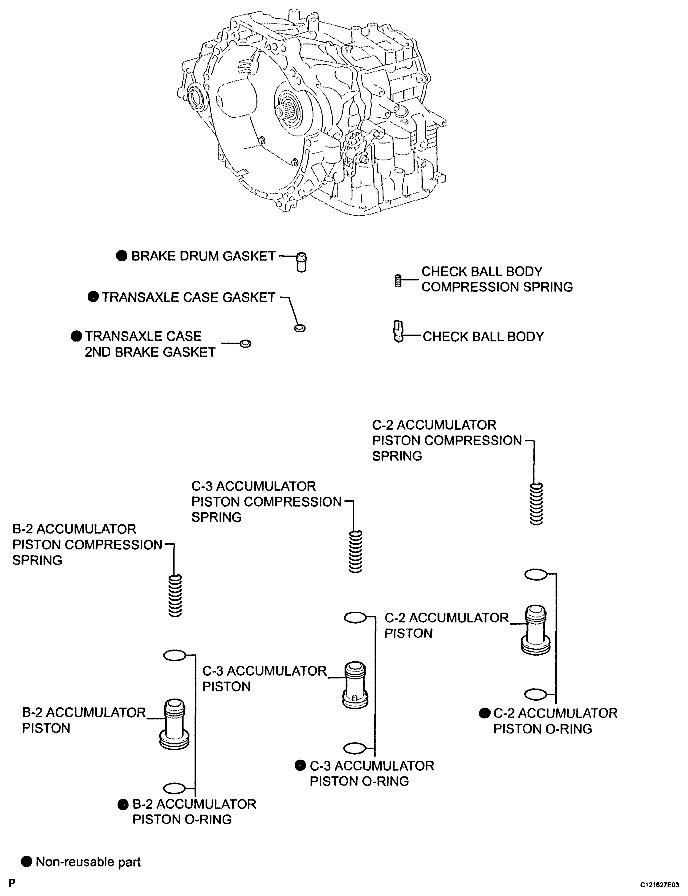

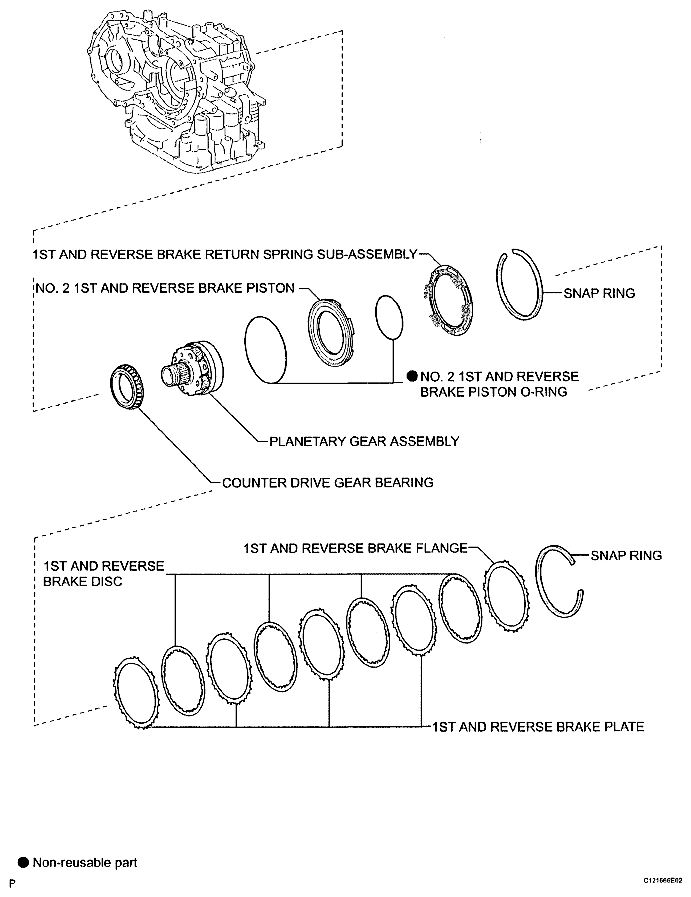

Fig 2: Automatic Transaxle Unit Components (2 Of 10) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

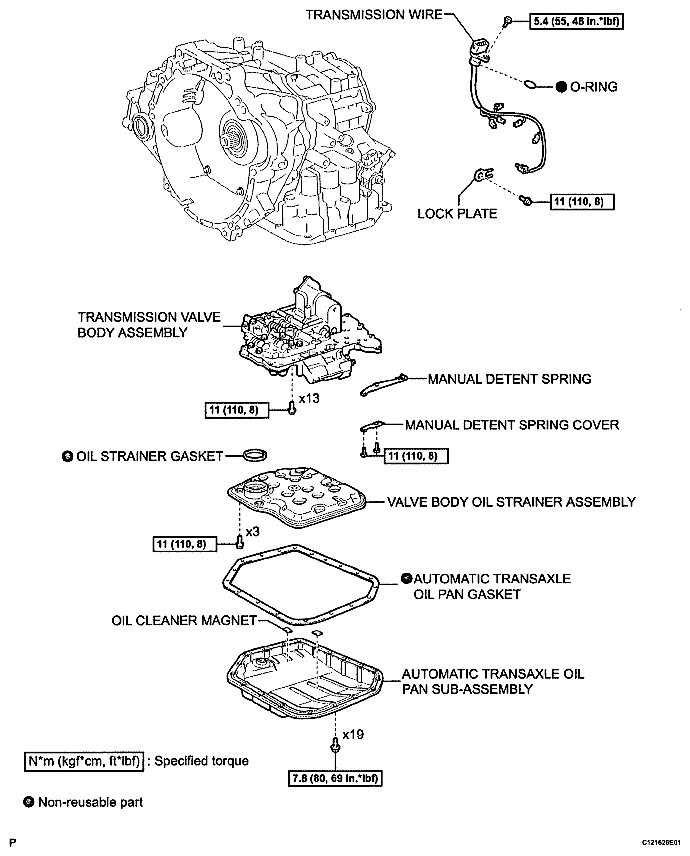

Fig 3: Automatic Transaxle Unit Components (3 Of 10) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

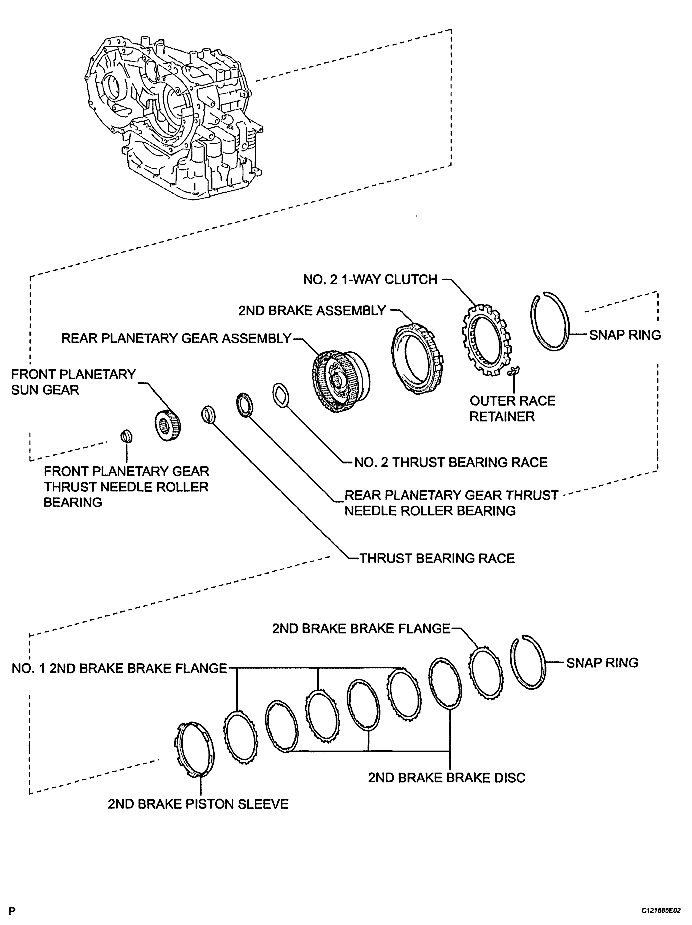

Fig 4: Identifying Automatic Transaxle Unit Components (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

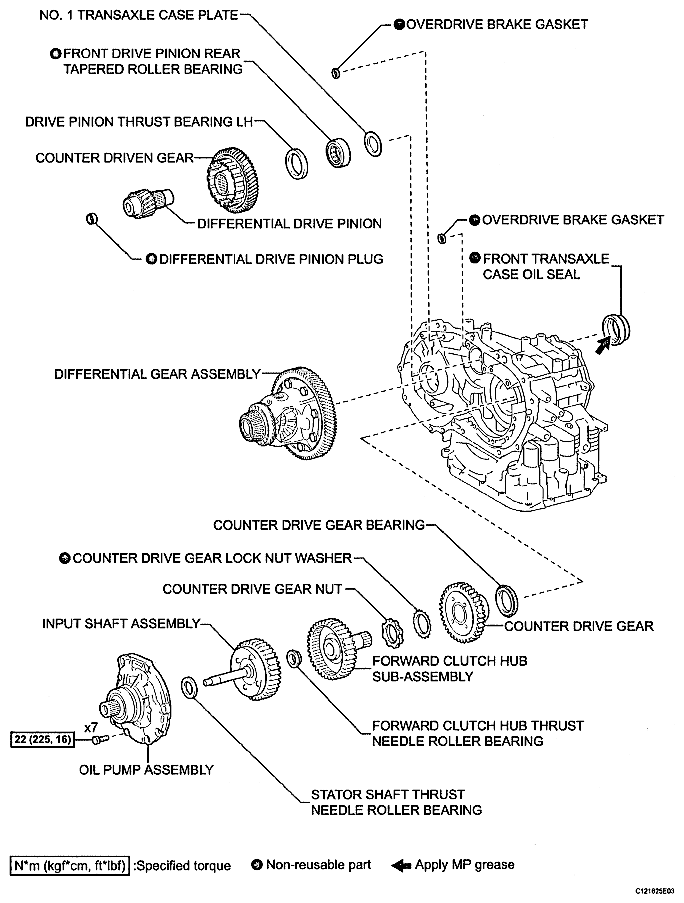

Fig 5: Automatic Transaxle Unit Components (5 Of 10) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

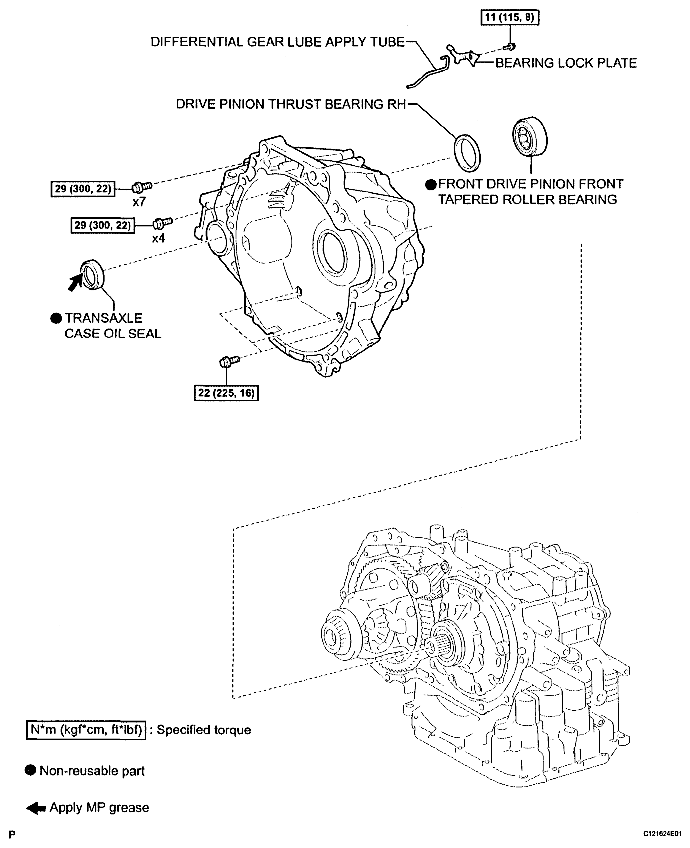

Fig 6: Automatic Transaxle Unit Components (6 Of 10) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

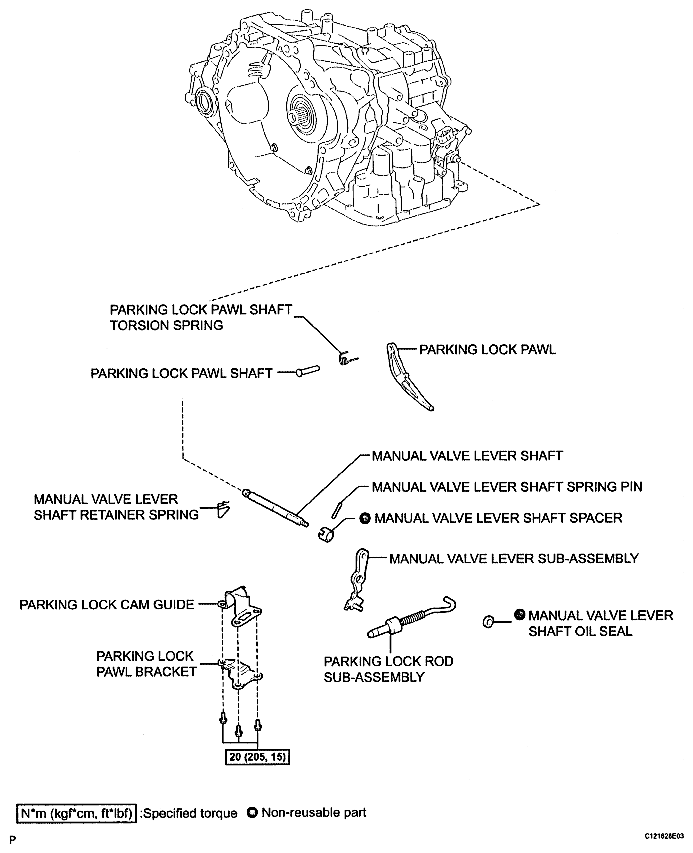

Fig 7: Automatic Transaxle Unit Components (7 Of 10) With Torque Specifications

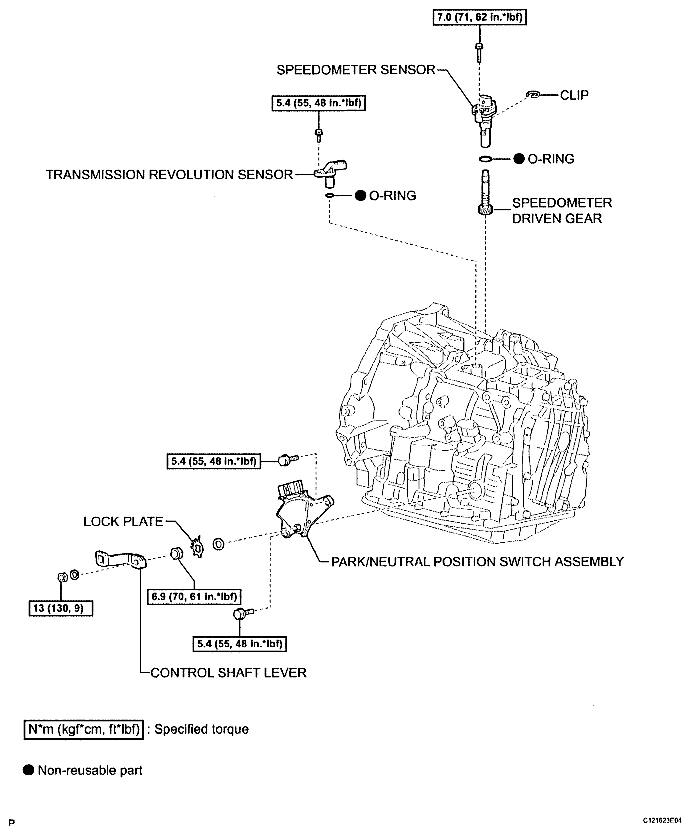

Fig 8: Automatic Transaxle Unit Components (8 Of 10) With Torque Specifications

Fig 9: Identifying Automatic Transaxle Unit Components (9 Of 10)

Fig 10: Identifying Automatic Transaxle Unit Components (10 Of 10)
