Rear Power Window RH does not Operate with Rear Power Window Switch RH: Wiring Diagram

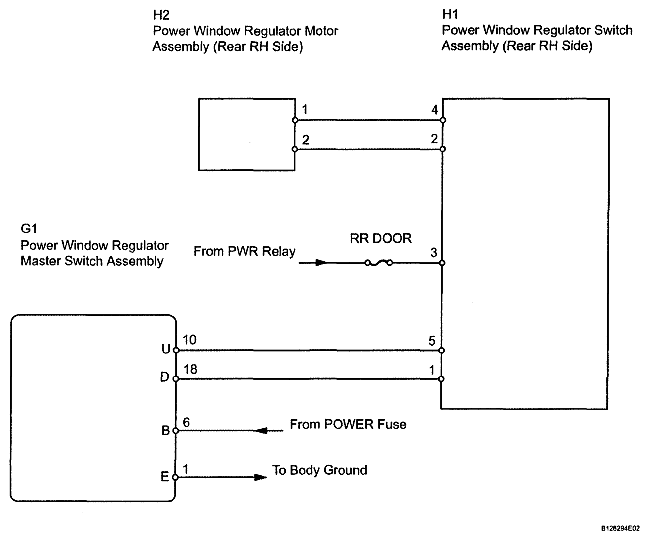

Fig 1: Rear Power Window Switch RH - Wiring Diagram

G04833780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
