Power Steering Gear: Components

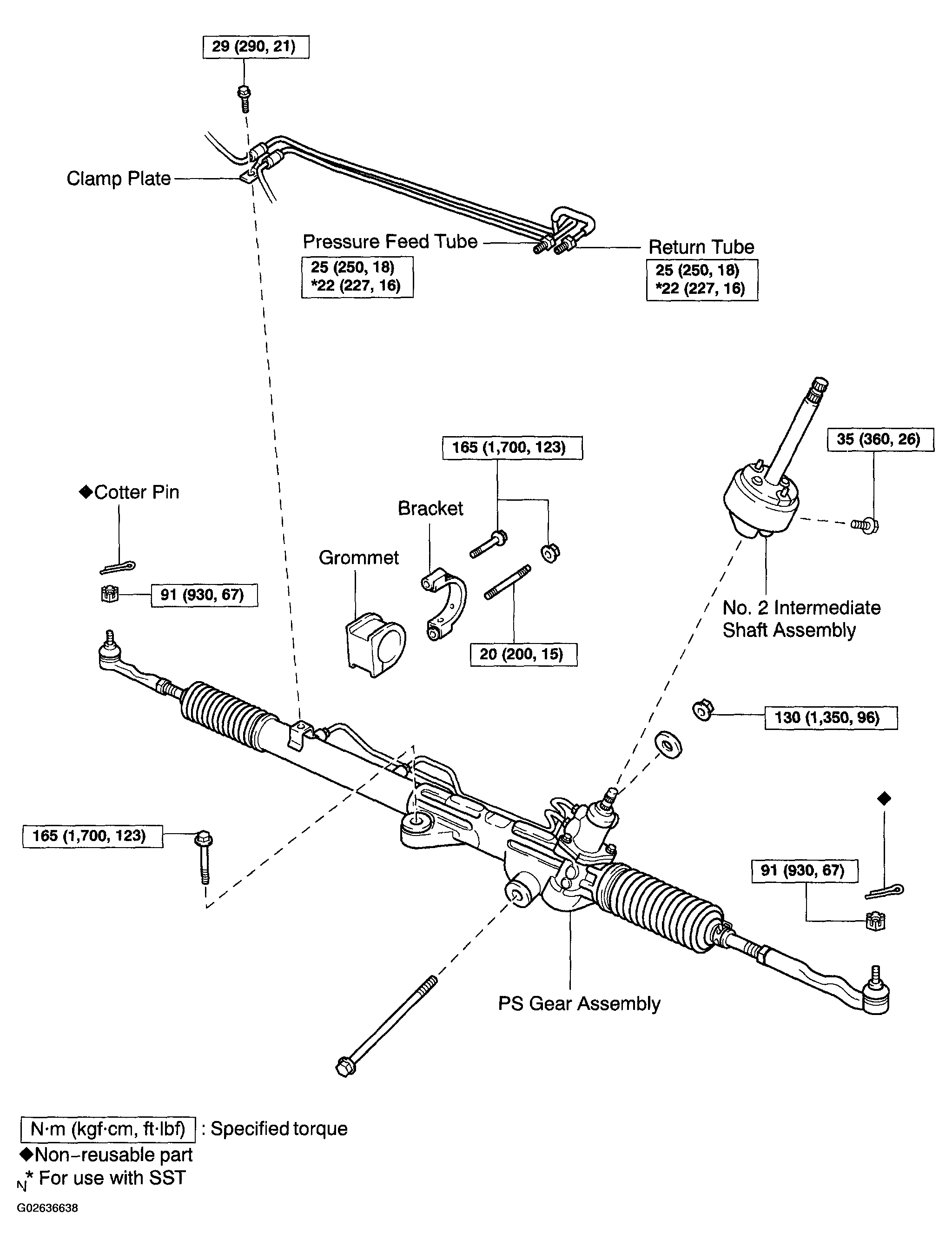

Fig 1: Power Steering Gear Replacement Components With Torque Specifications (1 Of 3)
G02636638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

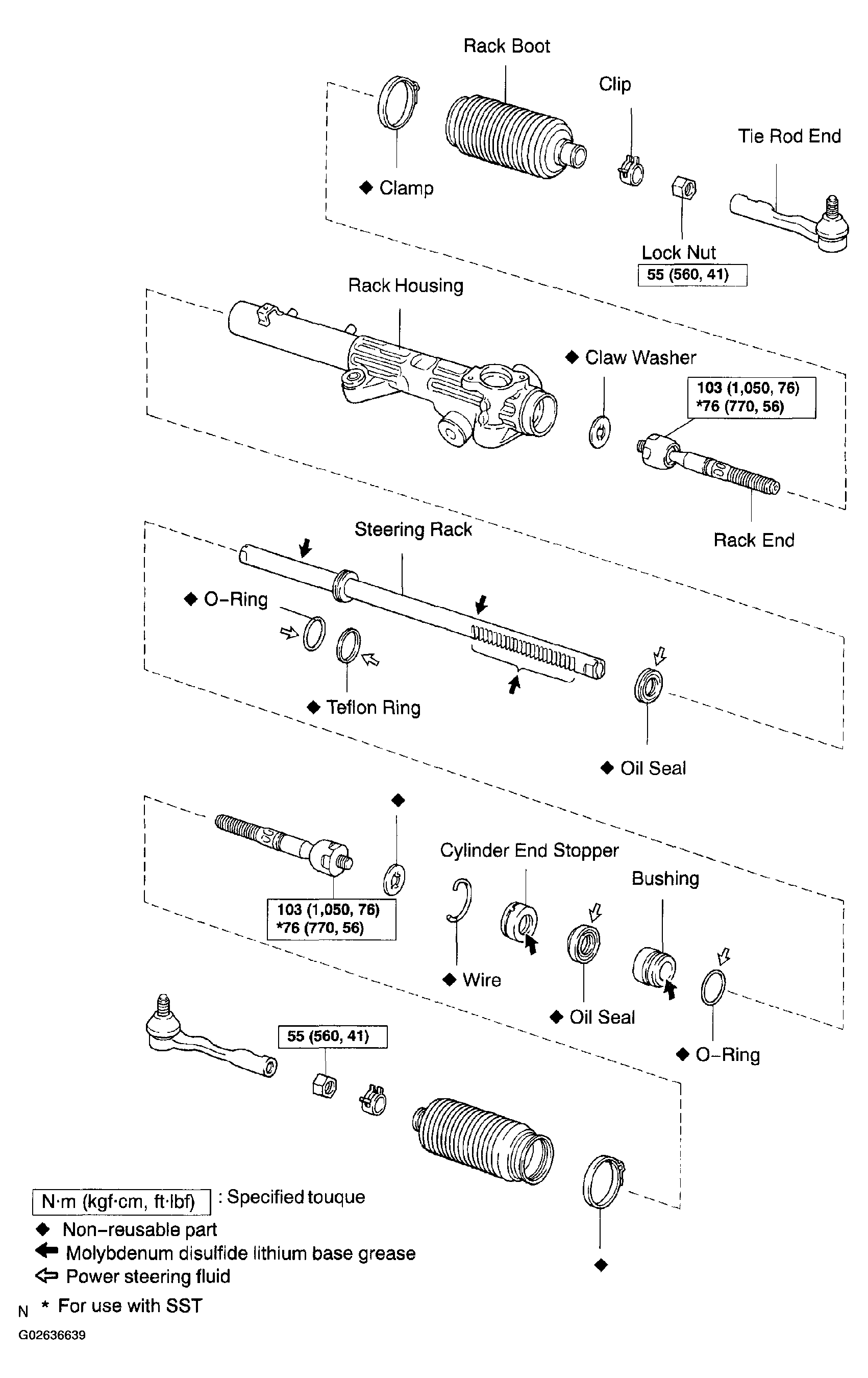

Fig 2: Power Steering Gear Replacement Components With Torque Specifications (2 Of 3)
G02636639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

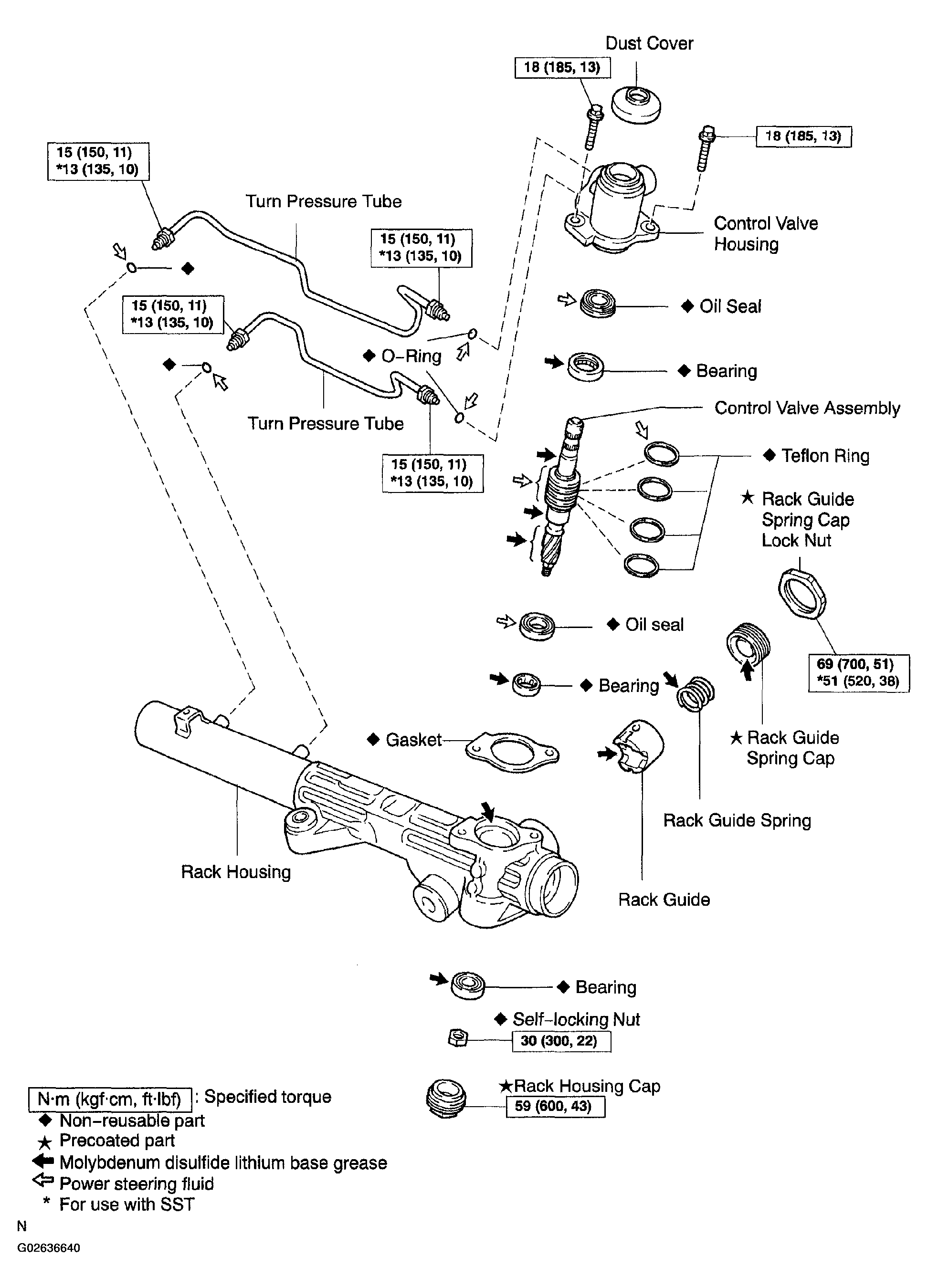

Fig 3: Power Steering Gear Replacement Components With Torque Specifications (3 Of 3)
G02636640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
