Transfer Assembly: Components

WARNING: This page is about a different variant/trim than selected.

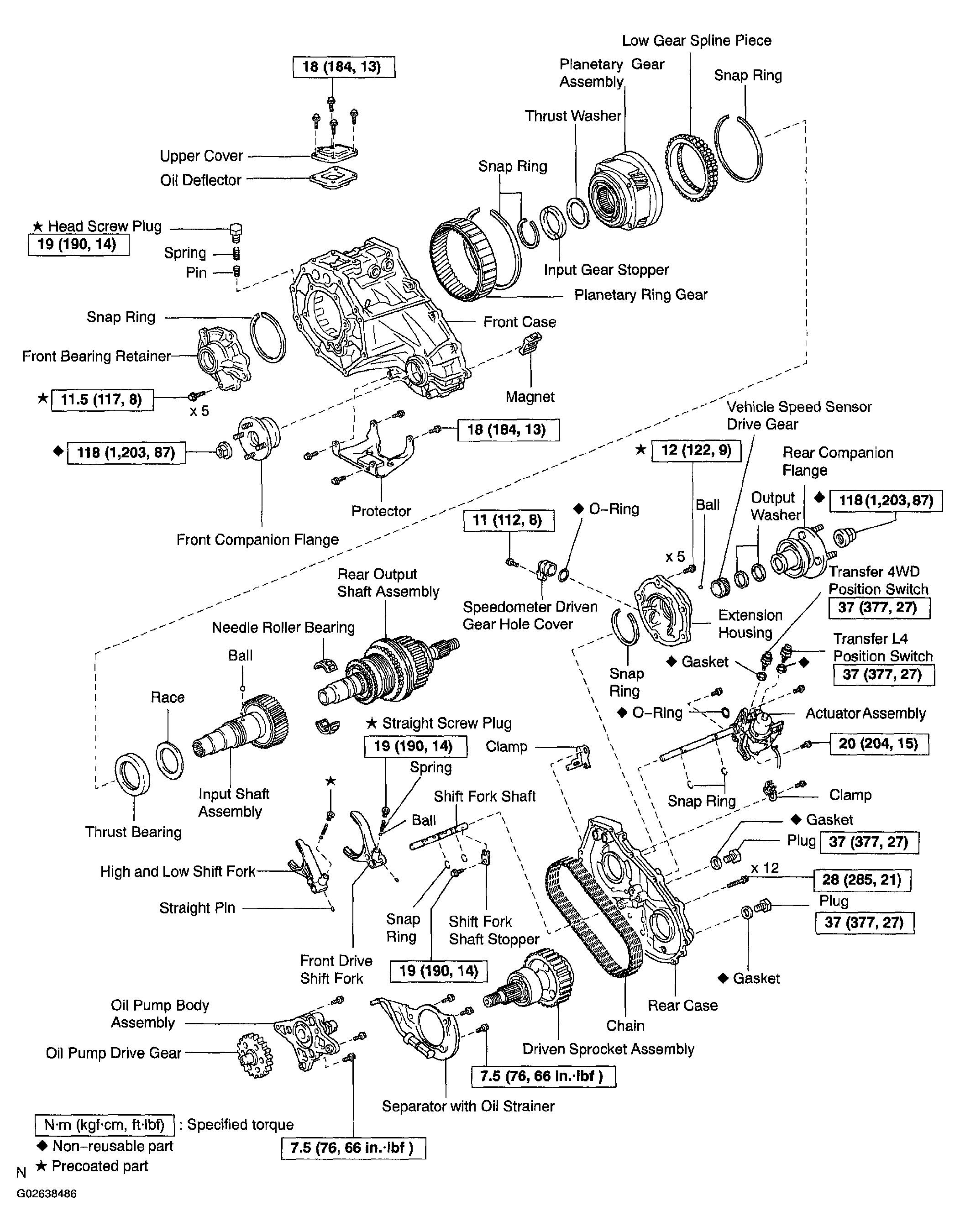

Fig 1: Exploded View Of Transfer Assembly Components And Torque Specifications
G02638486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
