Input Shaft: Inspection

WARNING: This page is about a different variant/trim than selected.

REMOVE OIL SEAL RING
Remove the 2 oil seal rings.
INSPECT INPUT SHAFT
1. Using a micrometer, measure the outer diameter of the input shaft journal surface.
  Minimum diameter: 47.59 mm (1.8736 in.)

  If the outer diameter is less than the minimum, replace the input shaft.

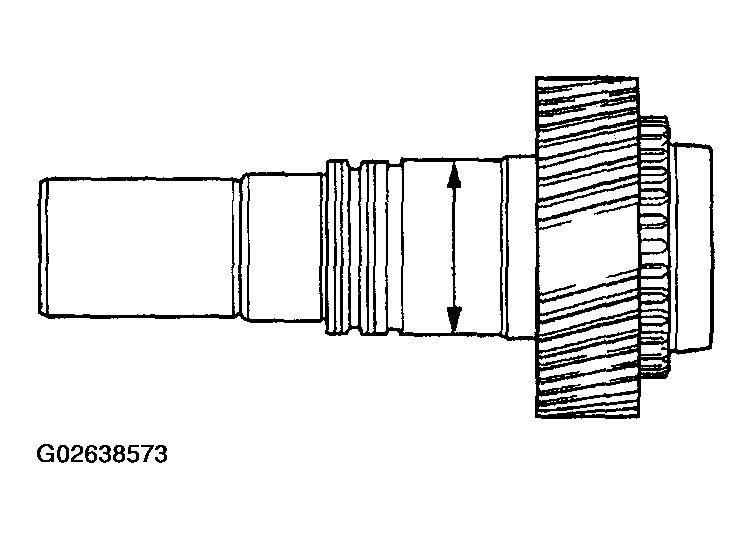

  Fig 1: Identifying Outer Diameter Of Input Shaft Journal Surface
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a dial indicator, measure the inside diameter of the input shaft bushing.
  Maximum inside diameter: 39.14 mm (1.5409 in.)
If the inside diameter exceeds the maximum, replace the input shaft.

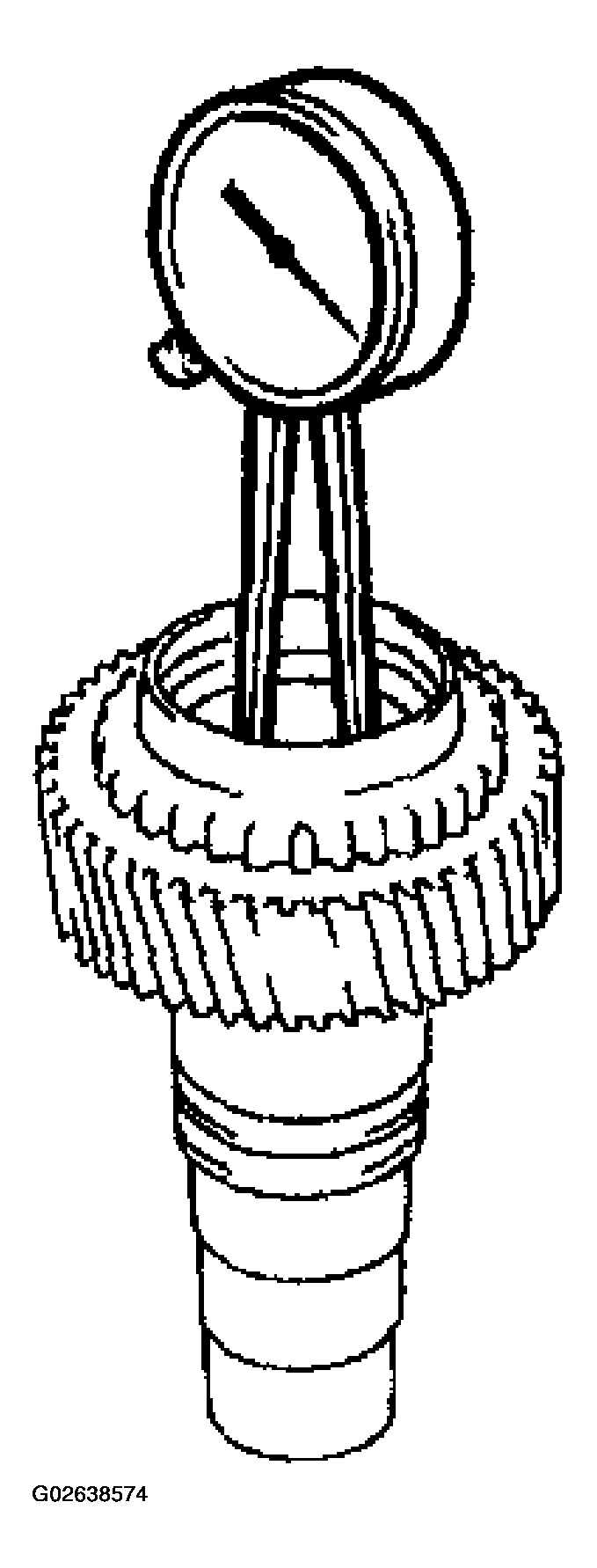

Fig 2: Measuring Inside Diameter Of Input Shaft Bushing Using Dial Indicator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL SEAL RING
Install the 2 oil seal rings.

HINT:
- Apply gear oil to the oil seal ring.
- Engage securely to eliminate clearance as shown in the illustration.

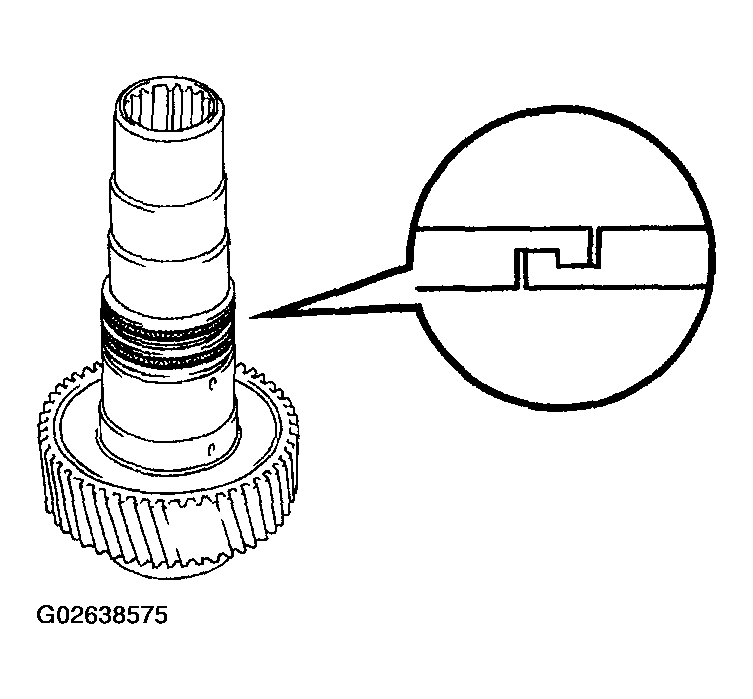

Fig 3: Installing Oil Seal Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
