Driven Sprocket: Replacement

WARNING: This page is about a different variant/trim than selected.

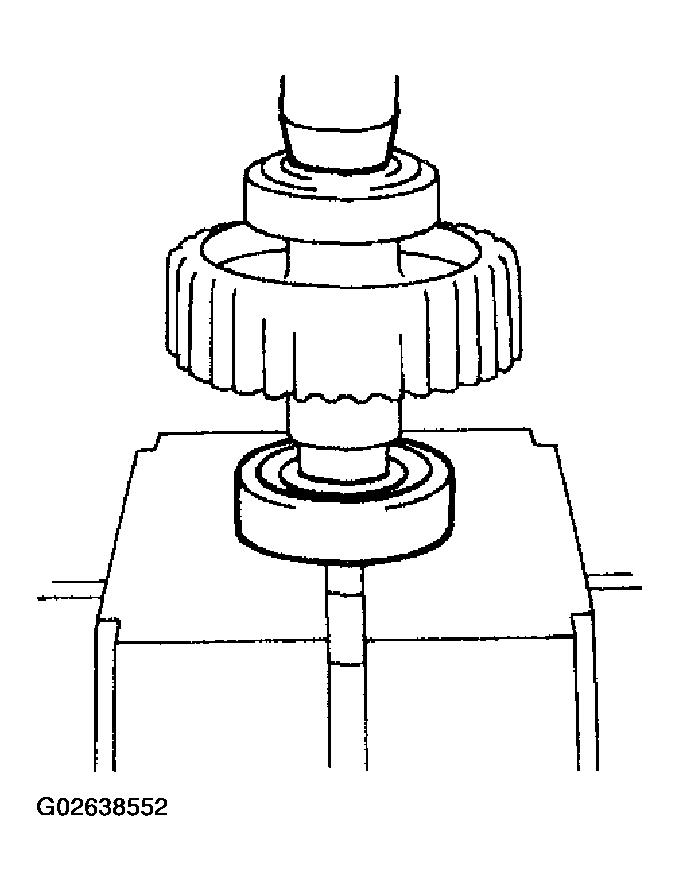

REMOVE FRONT BEARING
Using a press, remove the front bearing.

Fig 1: Removing Front Bearing Using Press
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

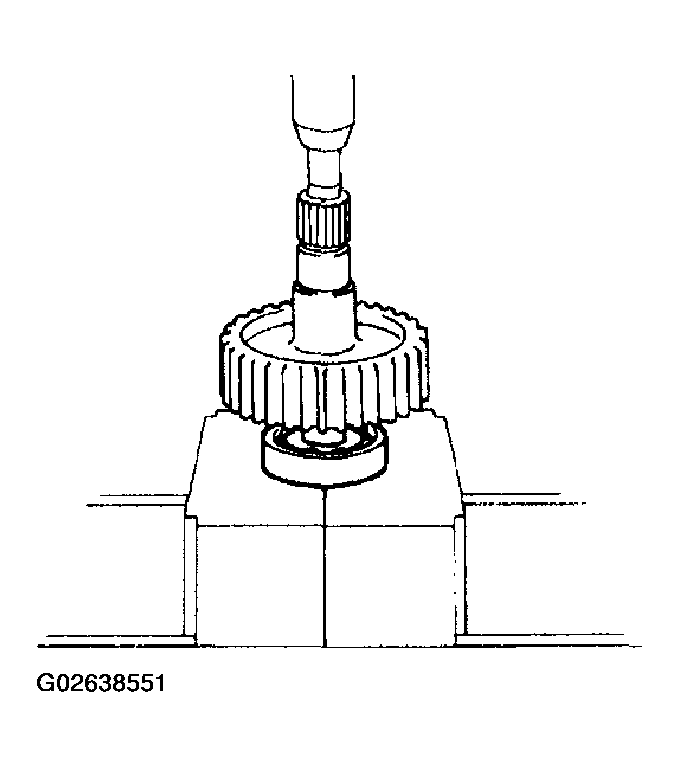

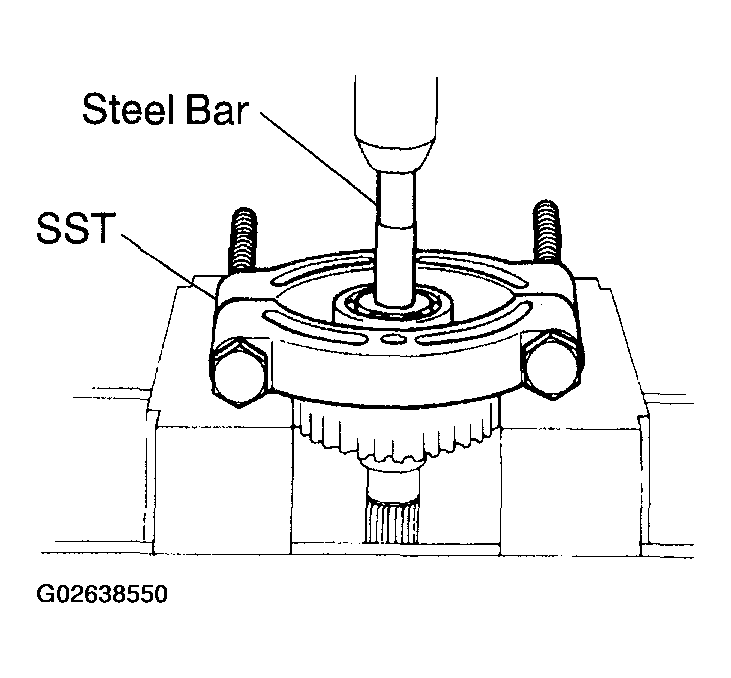

REMOVE REAR BEARING
Using SST, a press and steel bar, remove the rear bearing.

SST 09555-55010

Fig 2: Removing Rear Bearing Using SST, Press And Steel Bar
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BEARING
Using a press, install a new rear bearing.

Fig 3: Installing New Rear Bearing Using Press
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

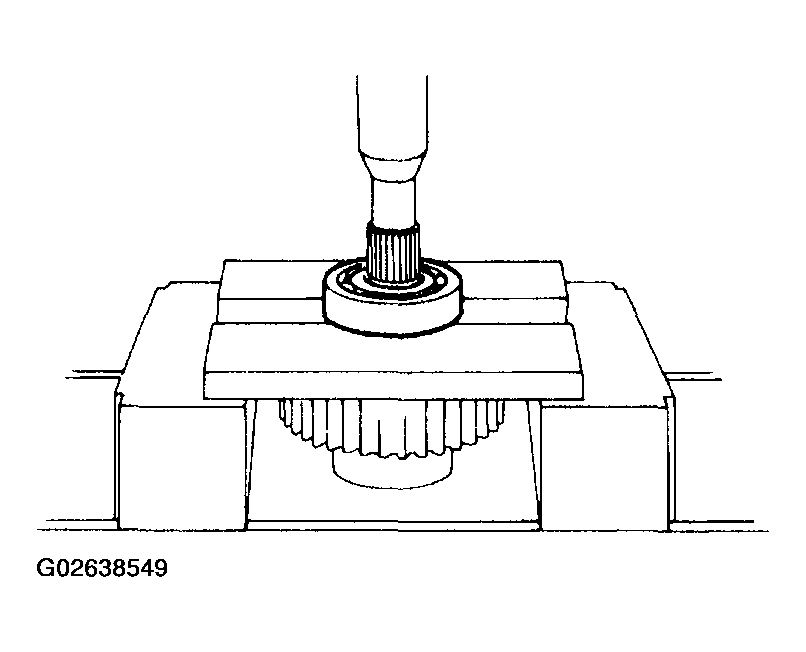

INSTALL FRONT BEARING
Using a press, install a new front bearing.

Fig 4: Installing New Front Bearing Using Press
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
