Waveform 4

1. VVT sensor bank 1
2. VVT sensor bank 2
3. Crankshaft position sensor

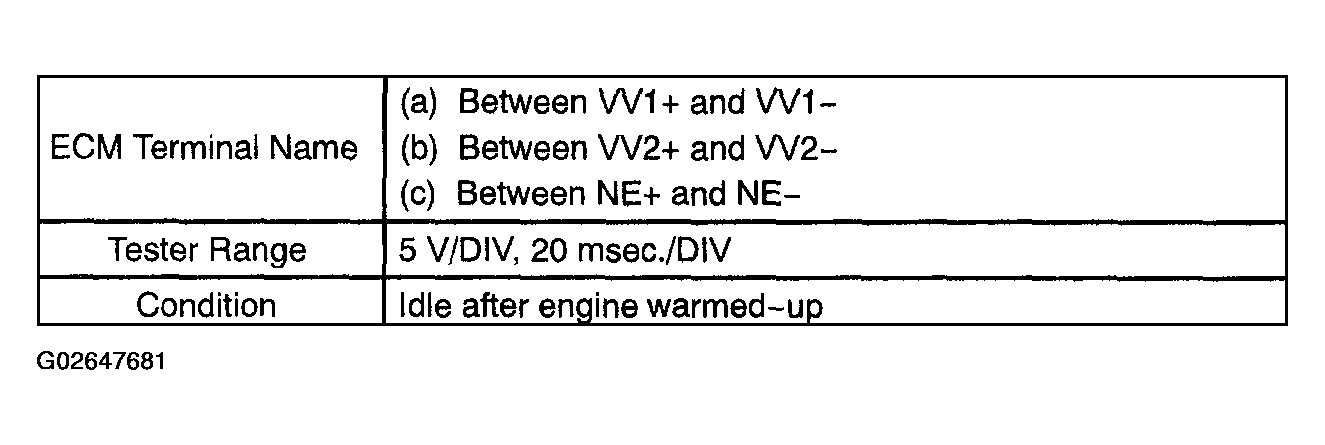

   Fig 1: Waveform 4 Reference

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

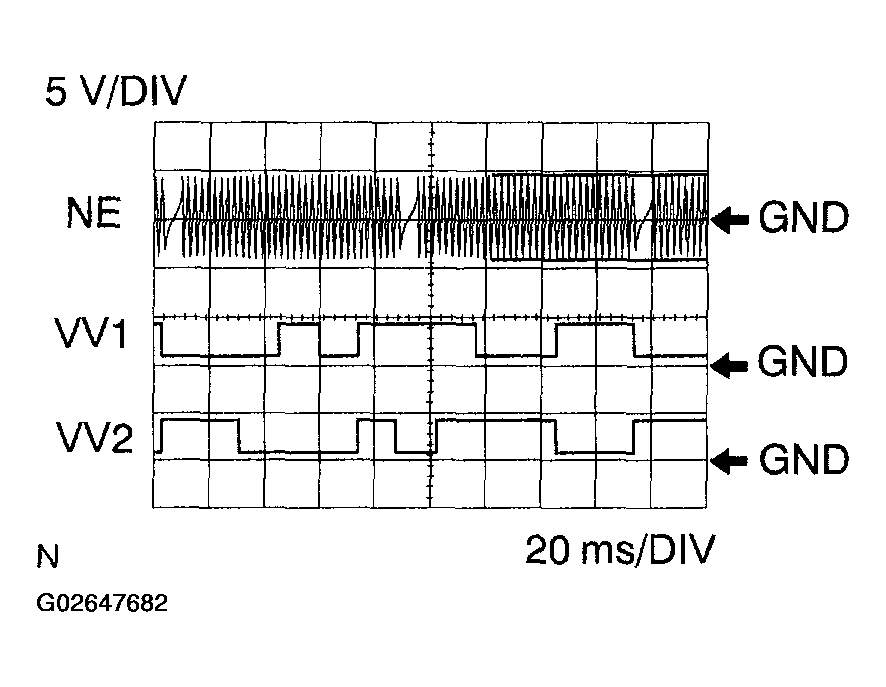

   Fig 2: Identifying Waveform 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as the engine RPM increases.
