Engine (1GR-FE) - Diagnostics: Location

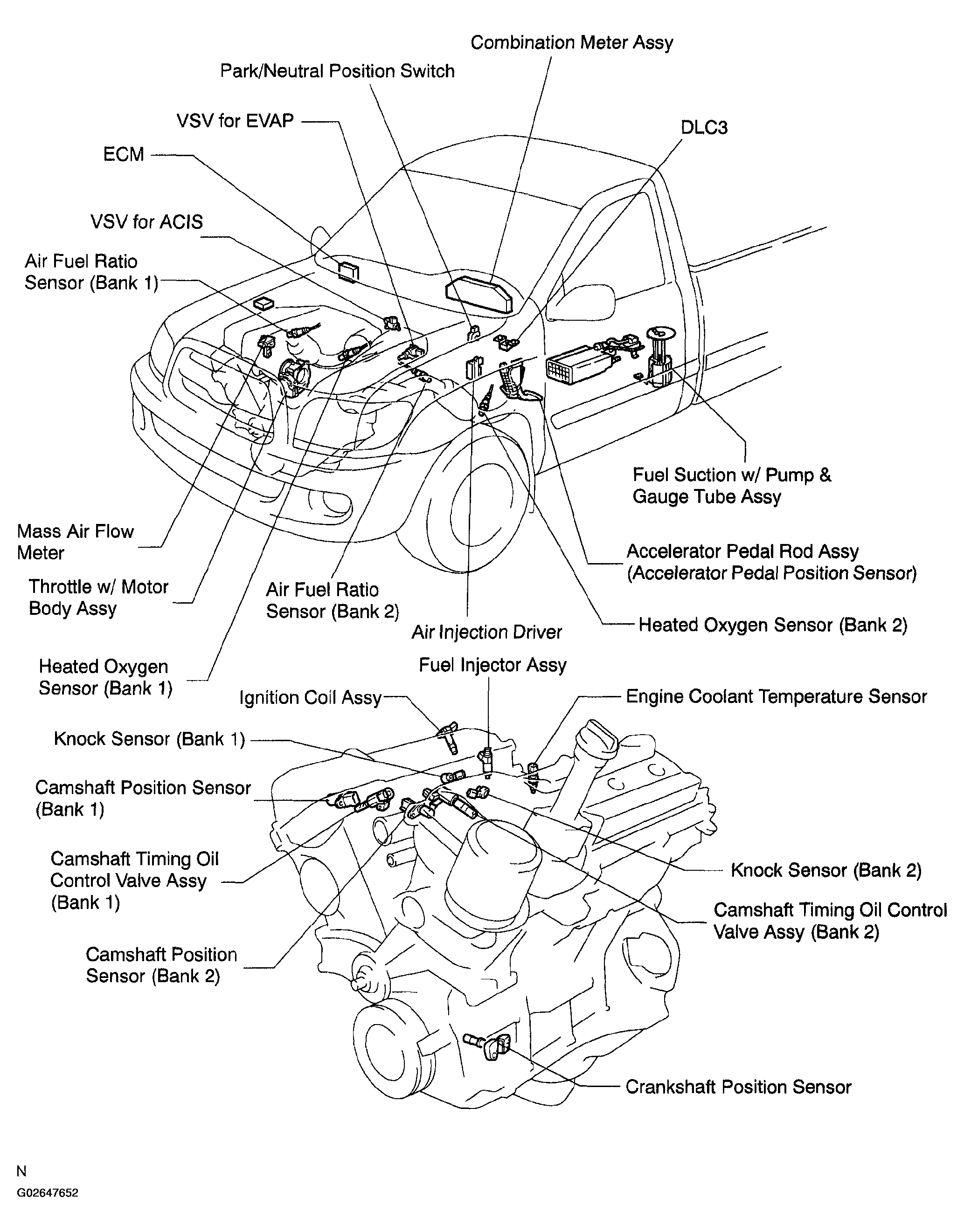

Fig 1: Identifying Engine Components Location (1GR-FE)

G02647652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
