Wireless Door Lock Control (Double Cab): Notes

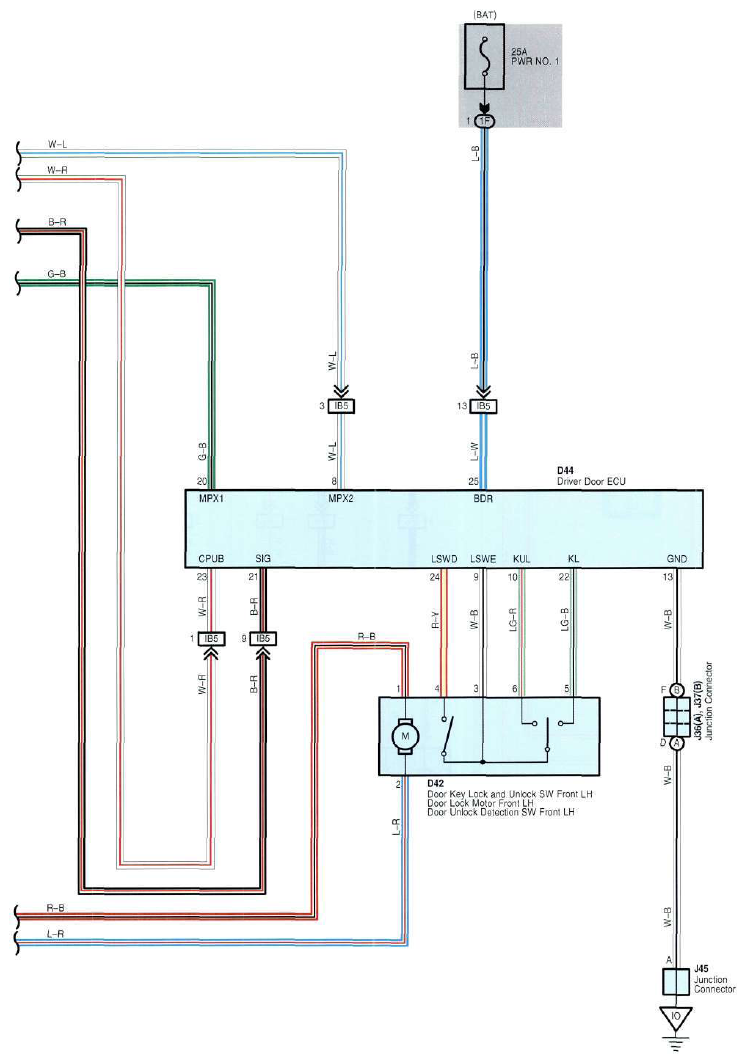

Fig 1: Wireless Door Lock Control System Wiring Diagram (Double Cab; 1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

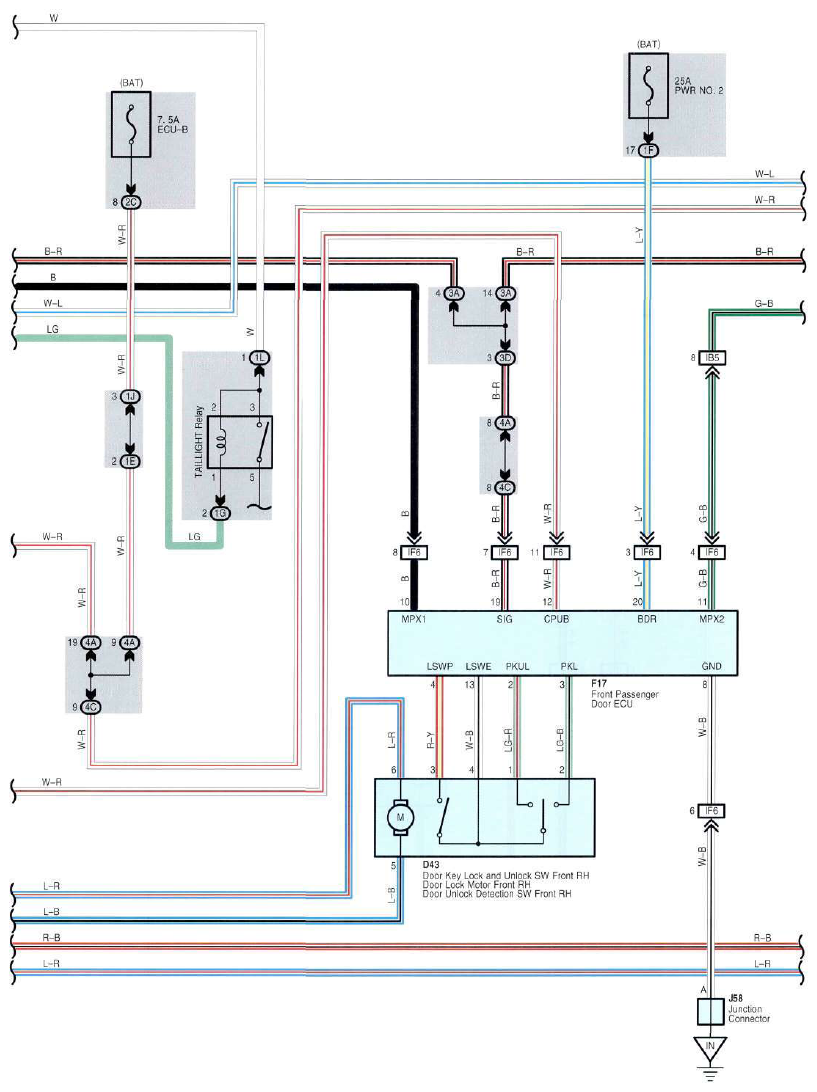

Fig 2: Wireless Door Lock Control System Wiring Diagram (Double Cab; 2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

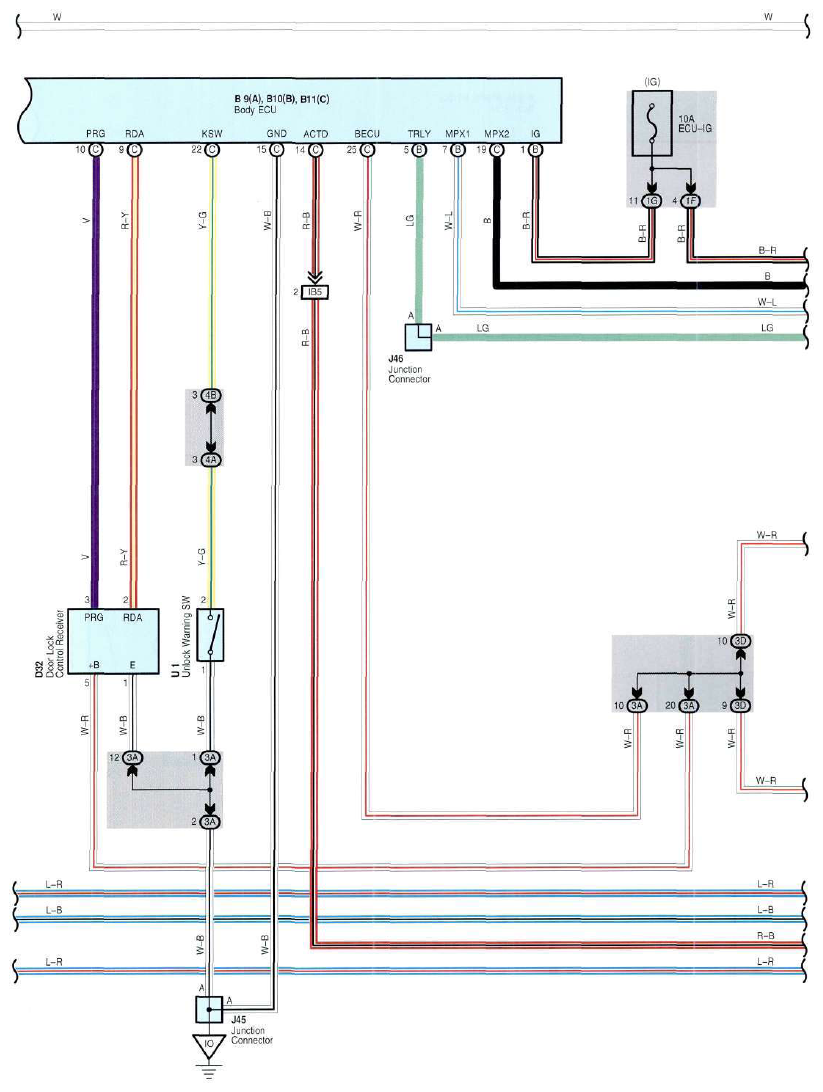

Fig 3: Wireless Door Lock Control System Wiring Diagram (Double Cab; 3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

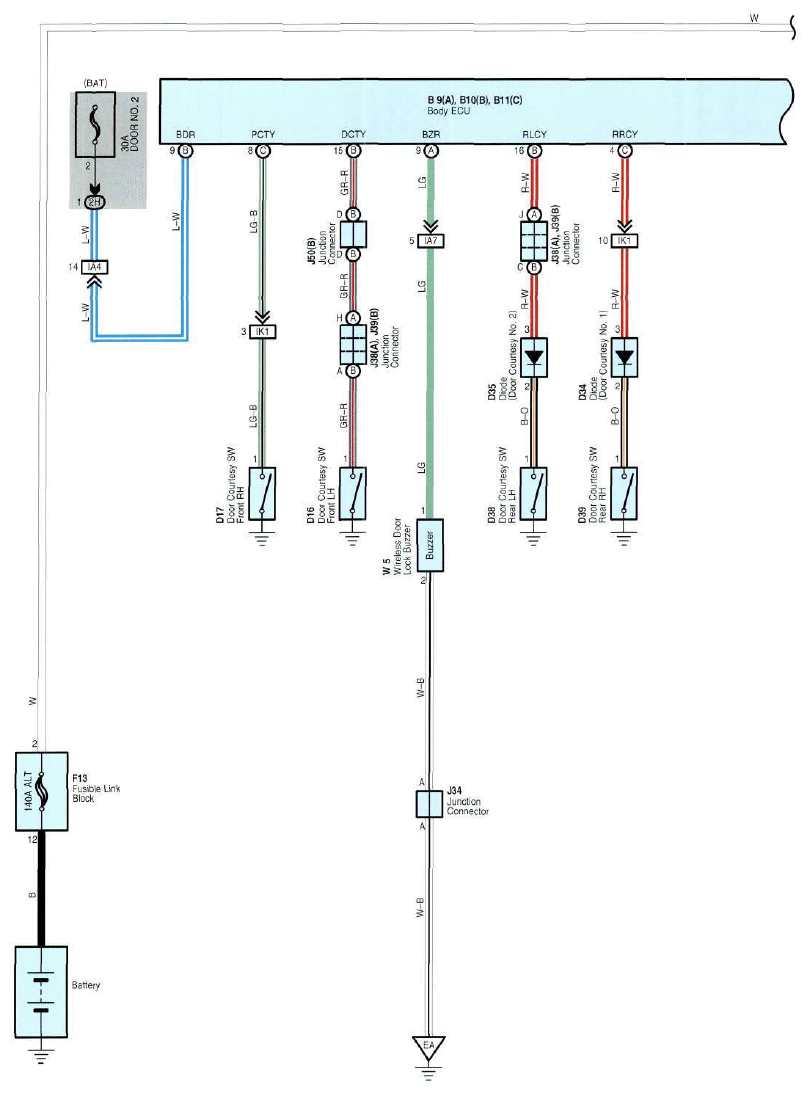

Fig 4: Wireless Door Lock Control System Wiring Diagram (Double Cab; 4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

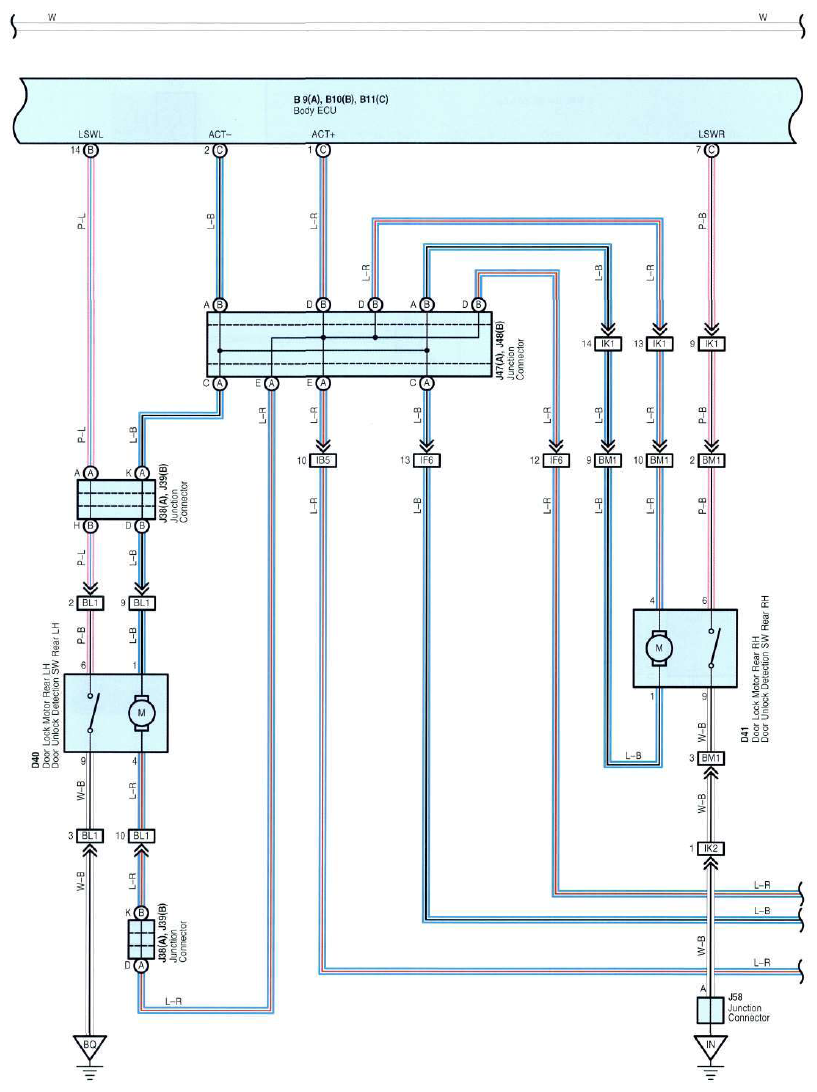

Fig 5: Wireless Door Lock Control System Wiring Diagram (Double Cab; 5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
