Tire Pressure Warning System (Double Cab): Notes

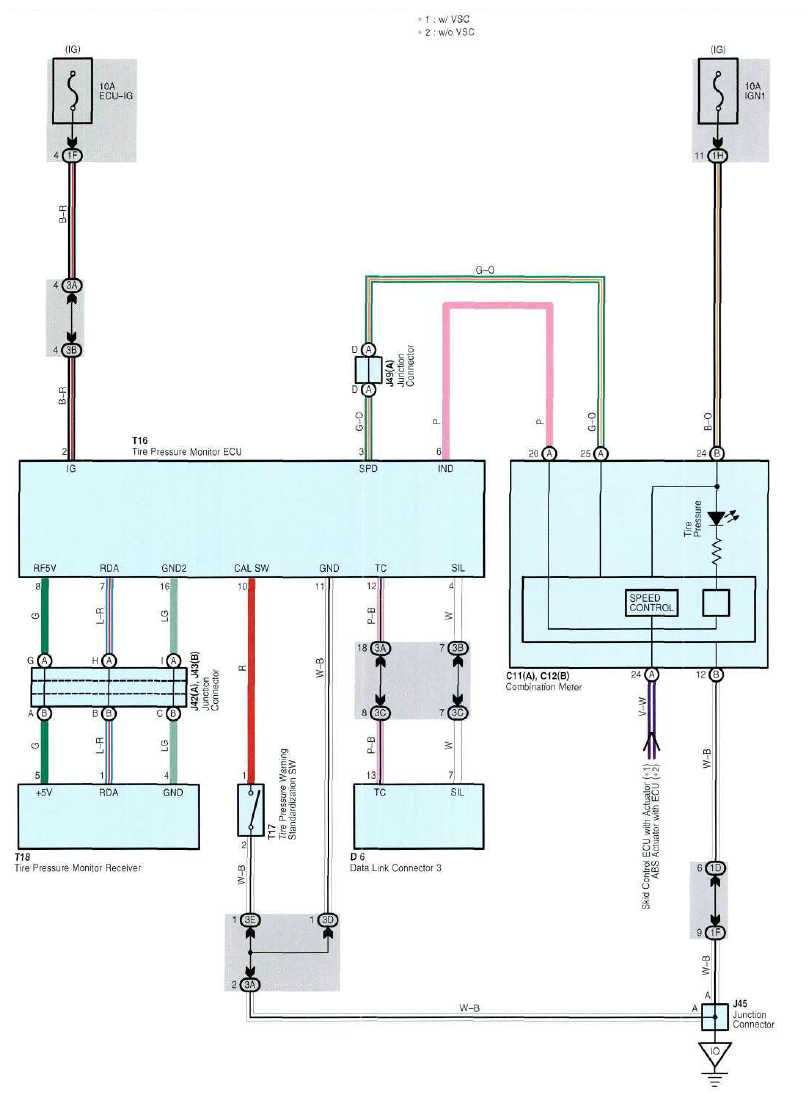

Fig 1: Tire Pressure Warning System Wiring Diagram (Double Cab)

G08864524

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
