Tire Pressure Warning System (Access/Standard Cab): Notes

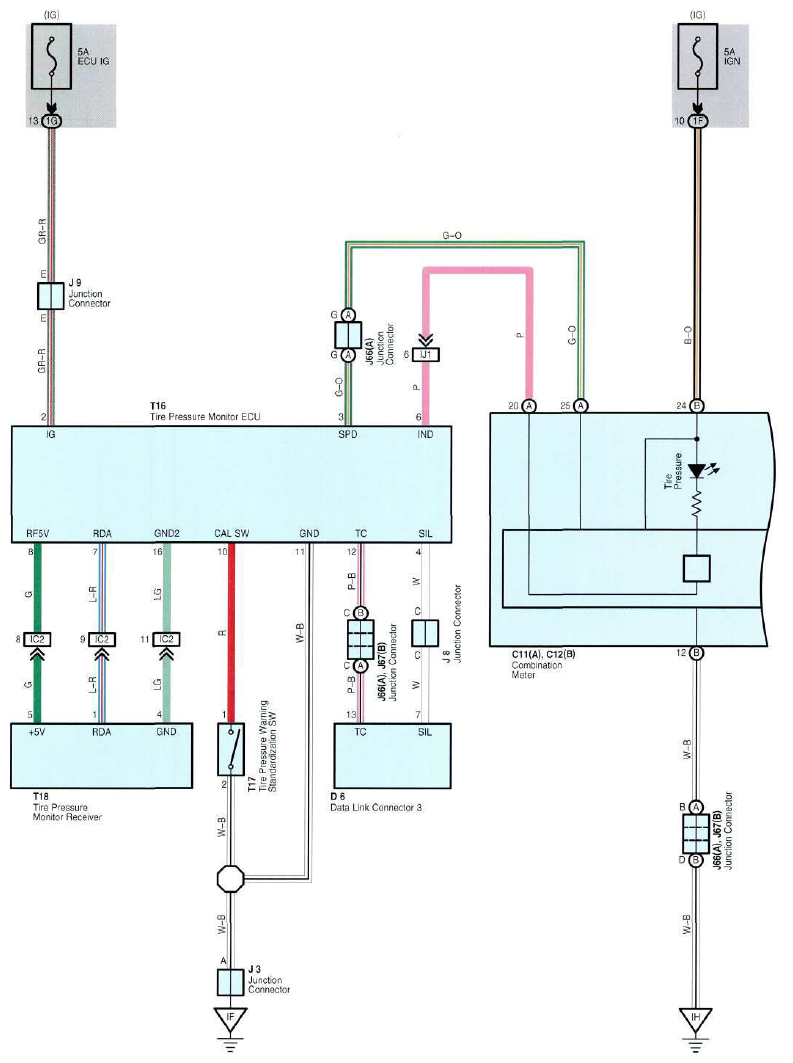

Fig 1: Tire Pressure Warning System Wiring Diagram (Access/Standard Cab; 1 Of 2)
G08864383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

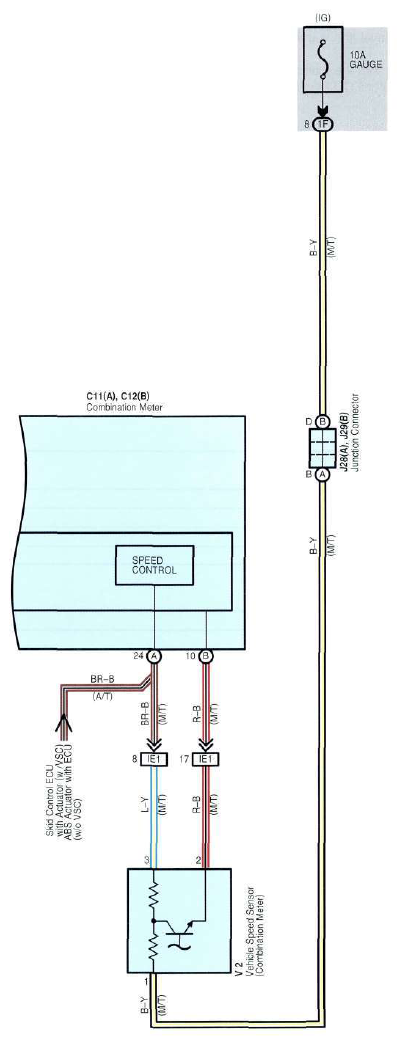

Fig 2: Tire Pressure Warning System Wiring Diagram (Access/Standard Cab; 2 Of 2)
G08864384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
