Taillight (Access/Standard Cab): Notes

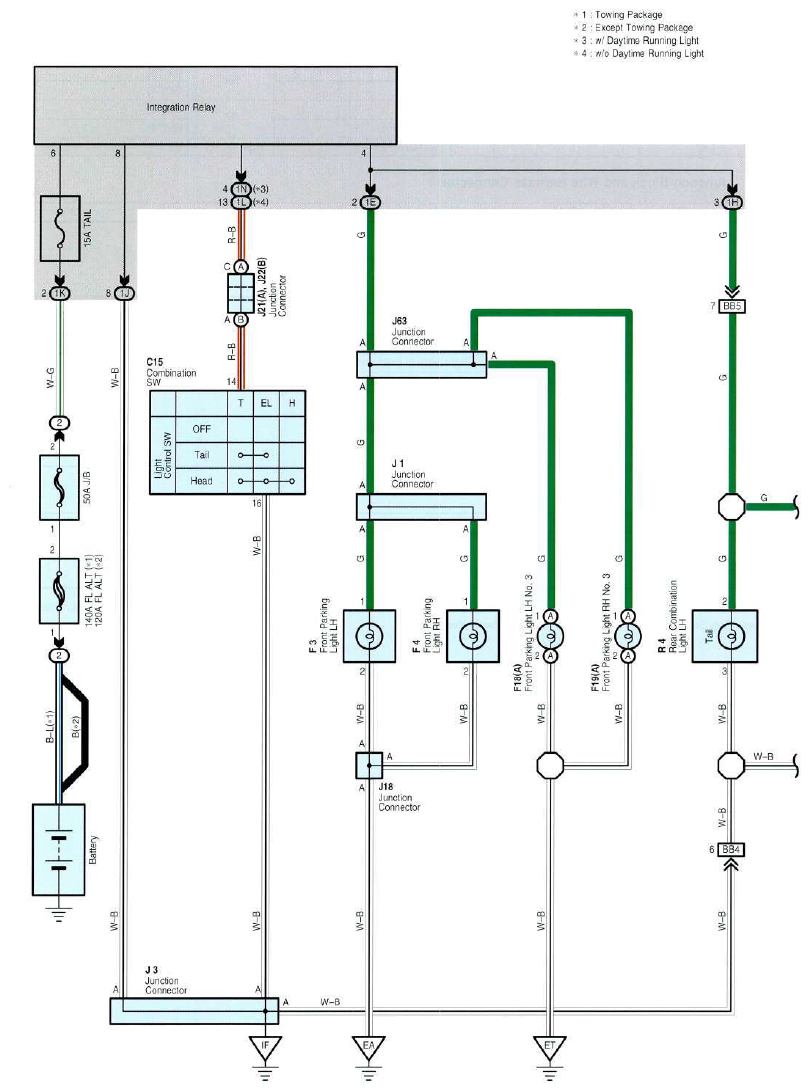

Fig 1: Taillight System Wiring Diagram (Access/Standard Cab; 1 Of 2)
G08864353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

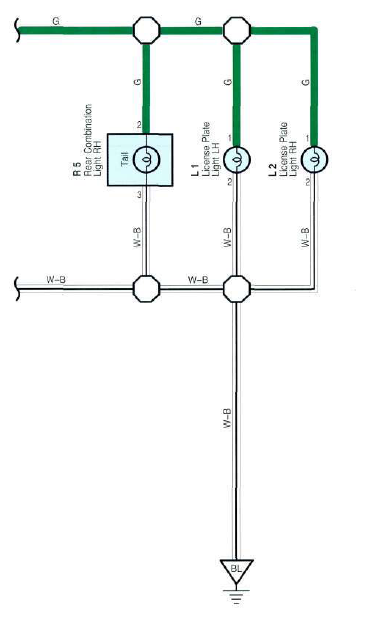

Fig 2: Taillight System Wiring Diagram (Access/Standard Cab; 2 Of 2)
G08864354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
