Stop Light (Double Cap): Notes

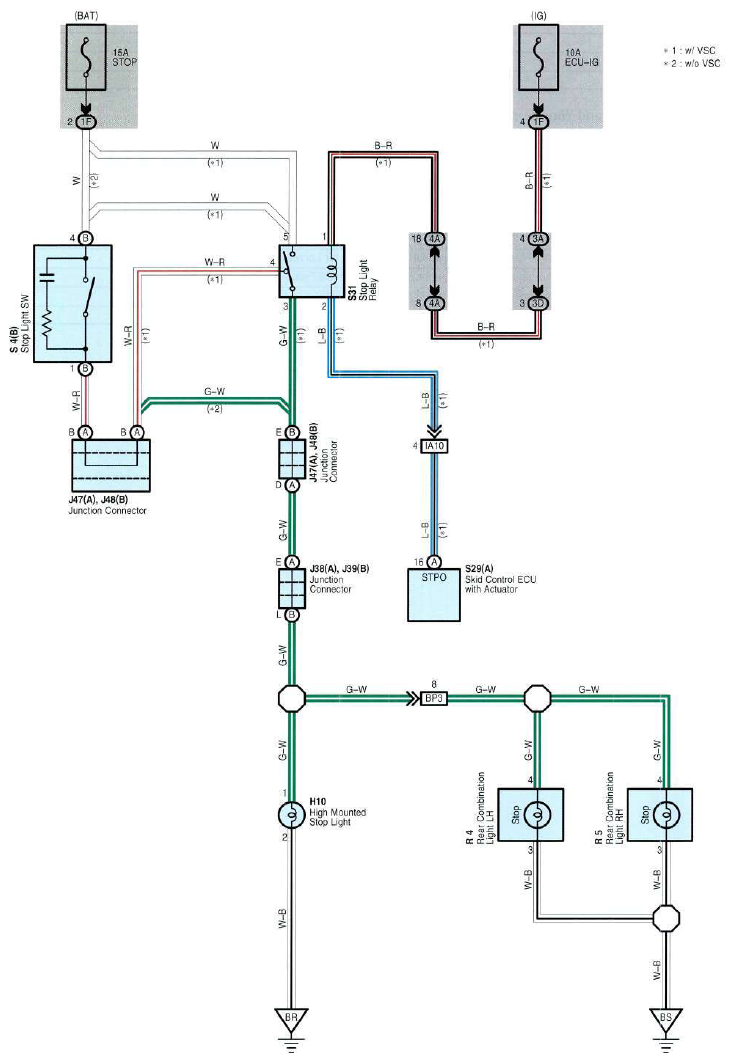

Fig 1: Stop Light System Wiring Diagram (Double Cap)

G08864468

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
