Starting (Double Cab): Notes

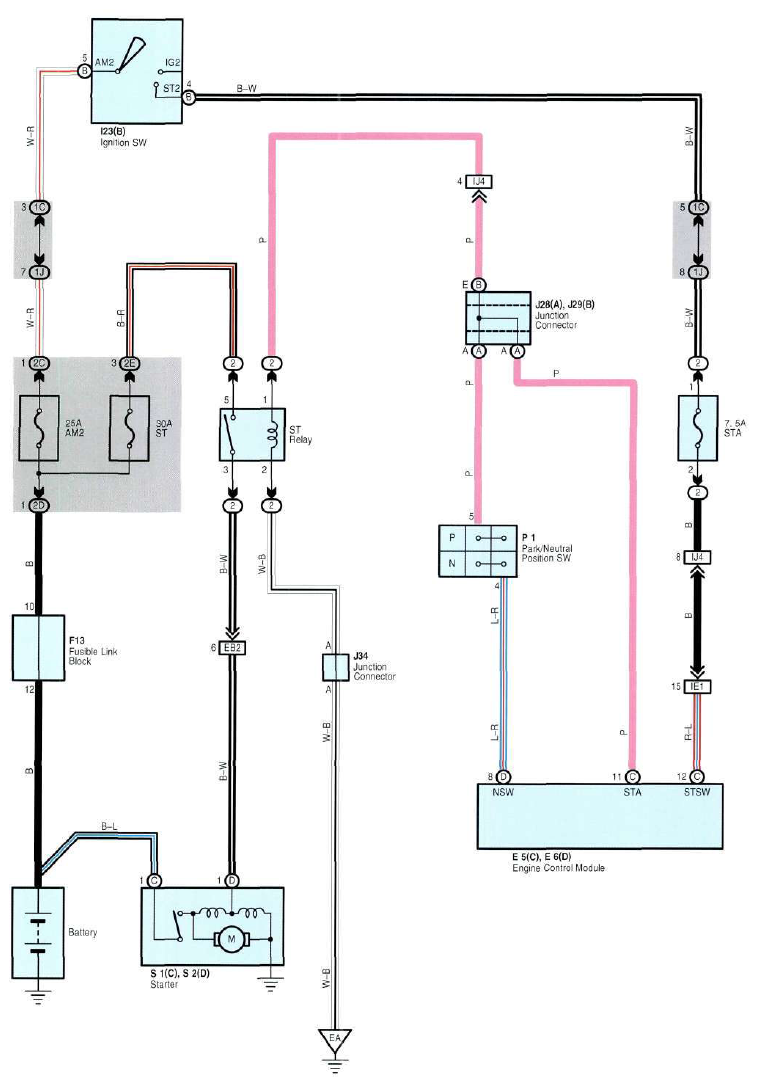

Fig 1: Starting System Wiring Diagram (Double Cab)

G08864438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
