Starting (Access/Standard Cab): Notes

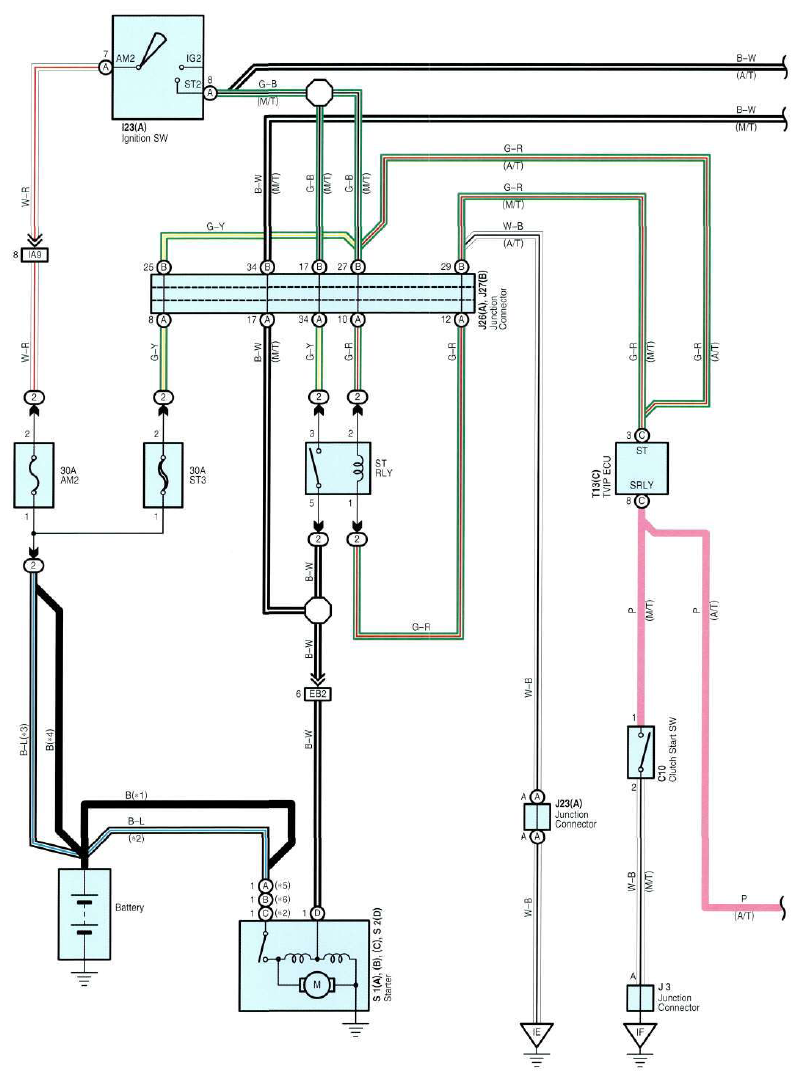

Fig 1: Starting System Wiring Diagram (Access/Standard Cab; 1 Of 2)
G08864319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

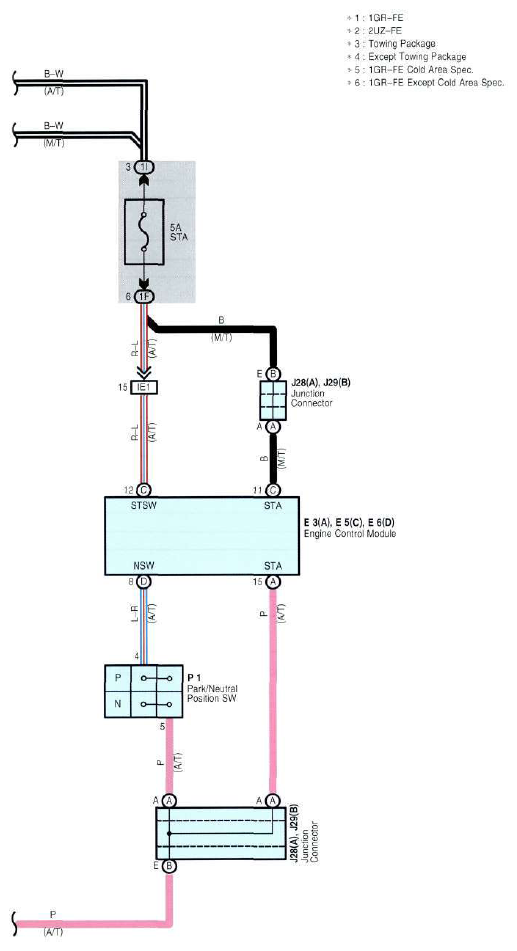

Fig 2: Starting System Wiring Diagram (Access/Standard Cab; 2 Of 2)
G08864320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
