Remote Control Mirror (Double Cab): Notes

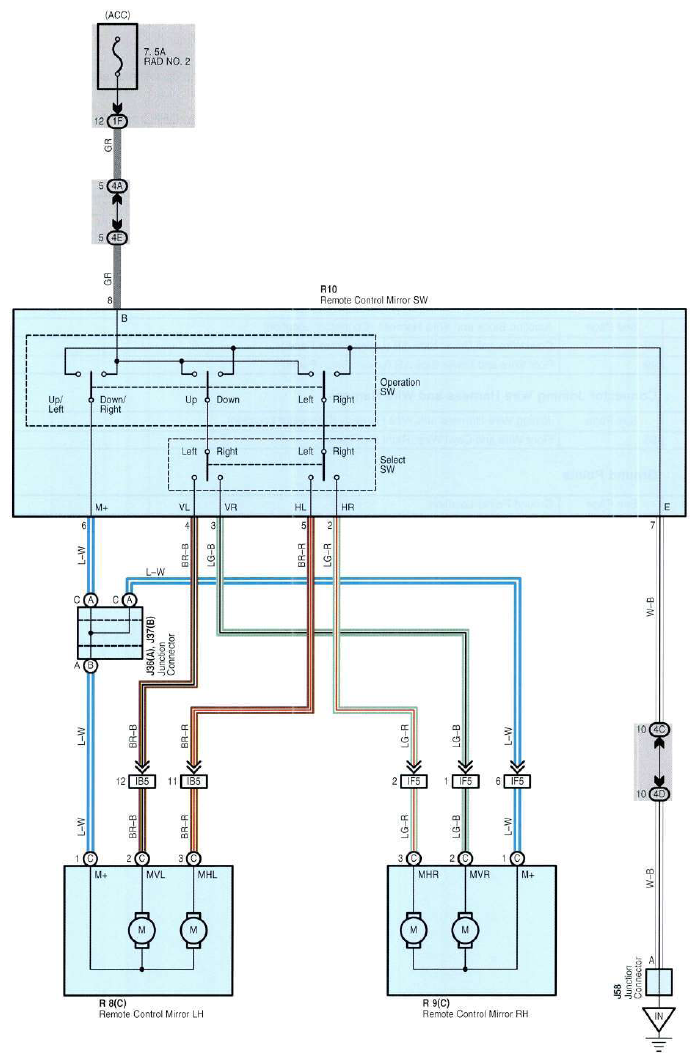

Fig 1: Remote Control Mirror System Wiring Diagram (Double Cab)

G08864540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
