Power Window (Double Cab): Notes

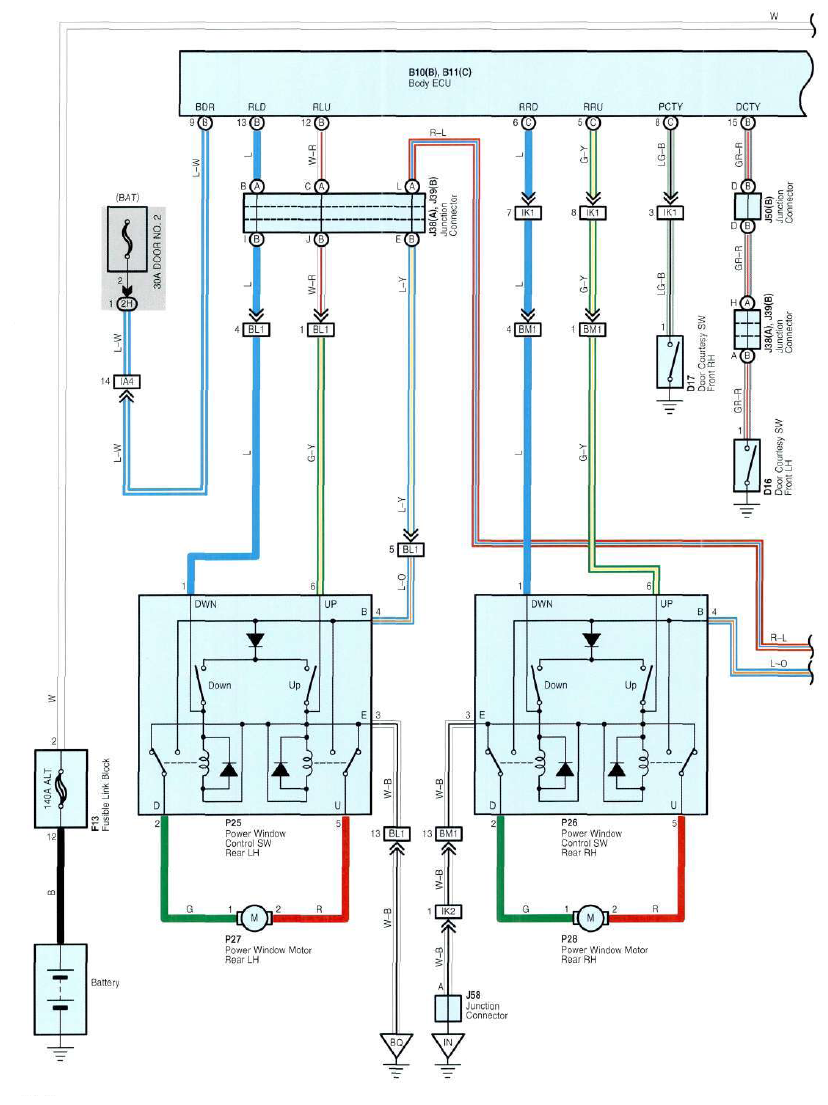

Fig 1: Power Window System Wiring Diagram (Double Cab; 1 Of 4)
G08864497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

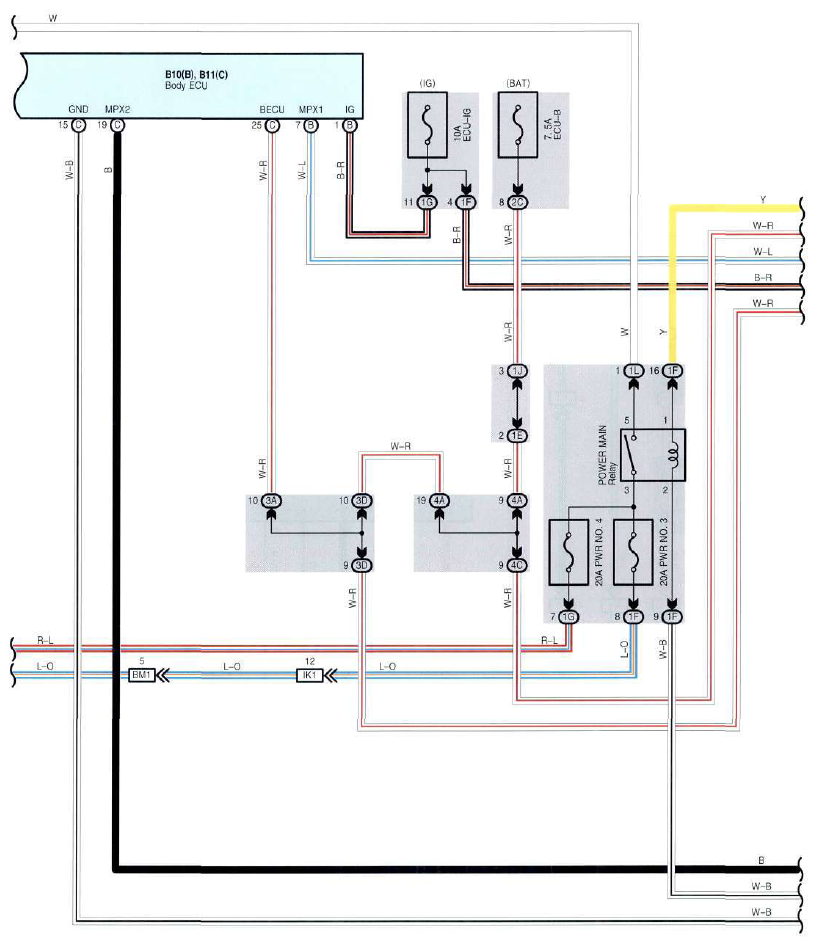

Fig 2: Power Window System Wiring Diagram (Double Cab; 2 Of 4)
G08864498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

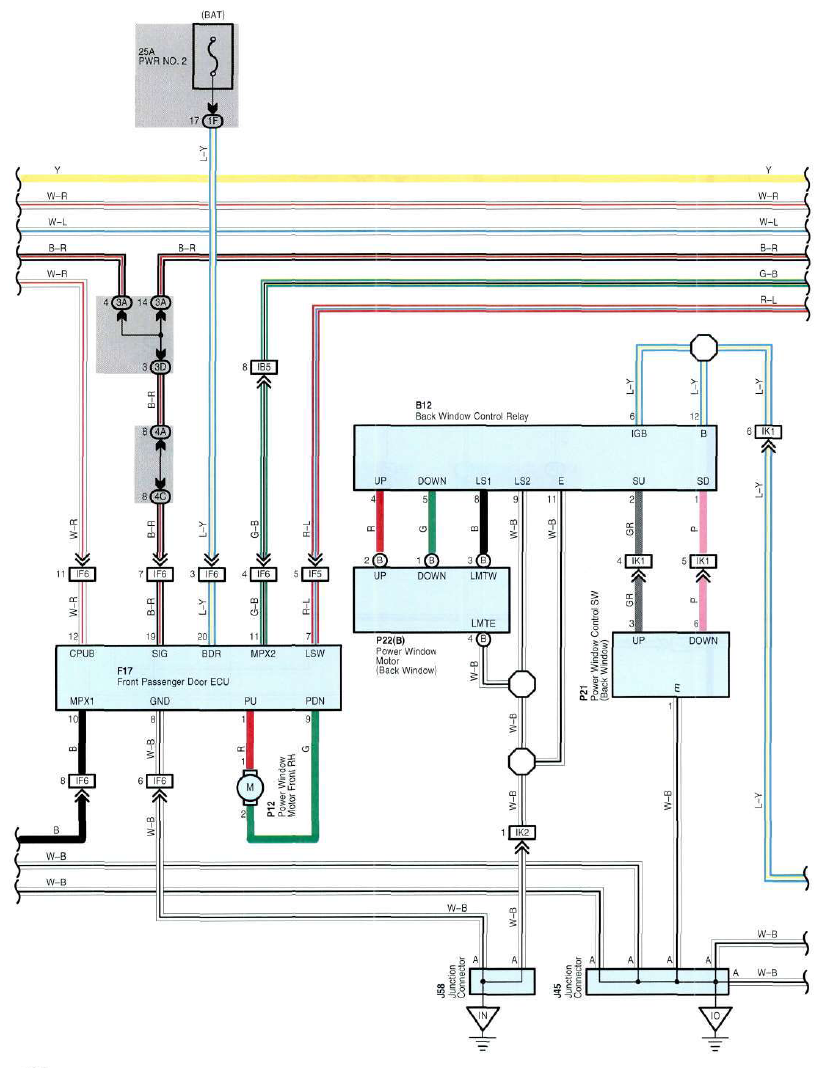

Fig 3: Power Window System Wiring Diagram (Double Cab; 3 Of 4)
G08864499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

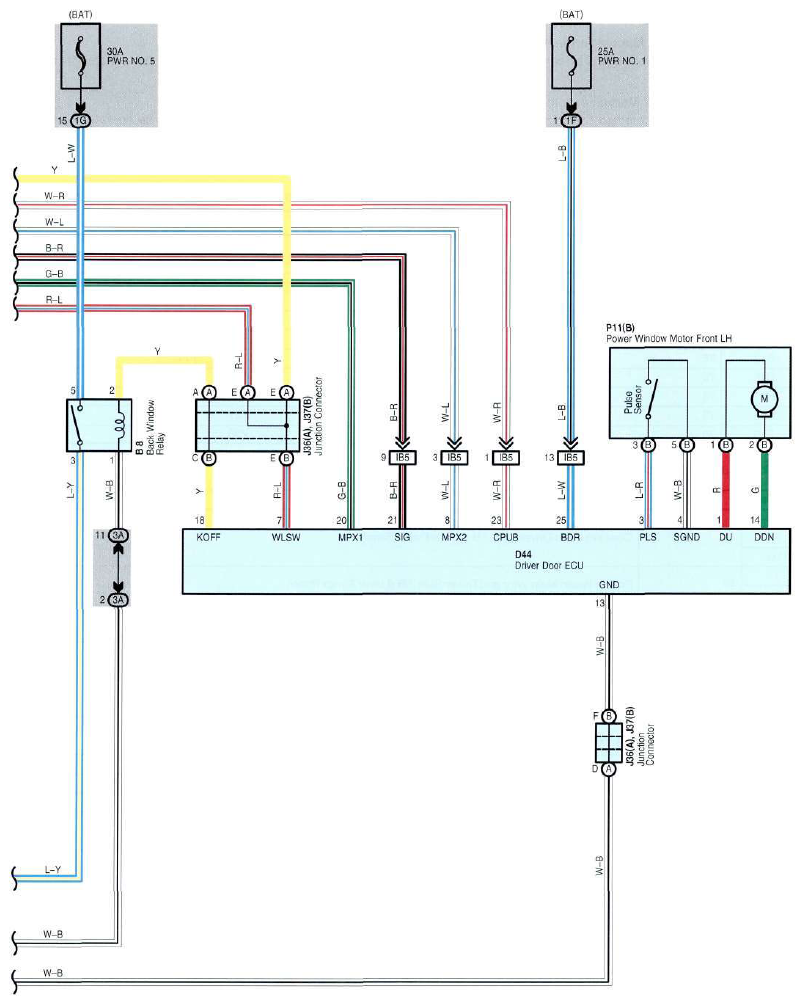

Fig 4: Power Window System Wiring Diagram (Double Cab; 4 Of 4)
G08864500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
