Power Window (Access/Standard Cab): Notes

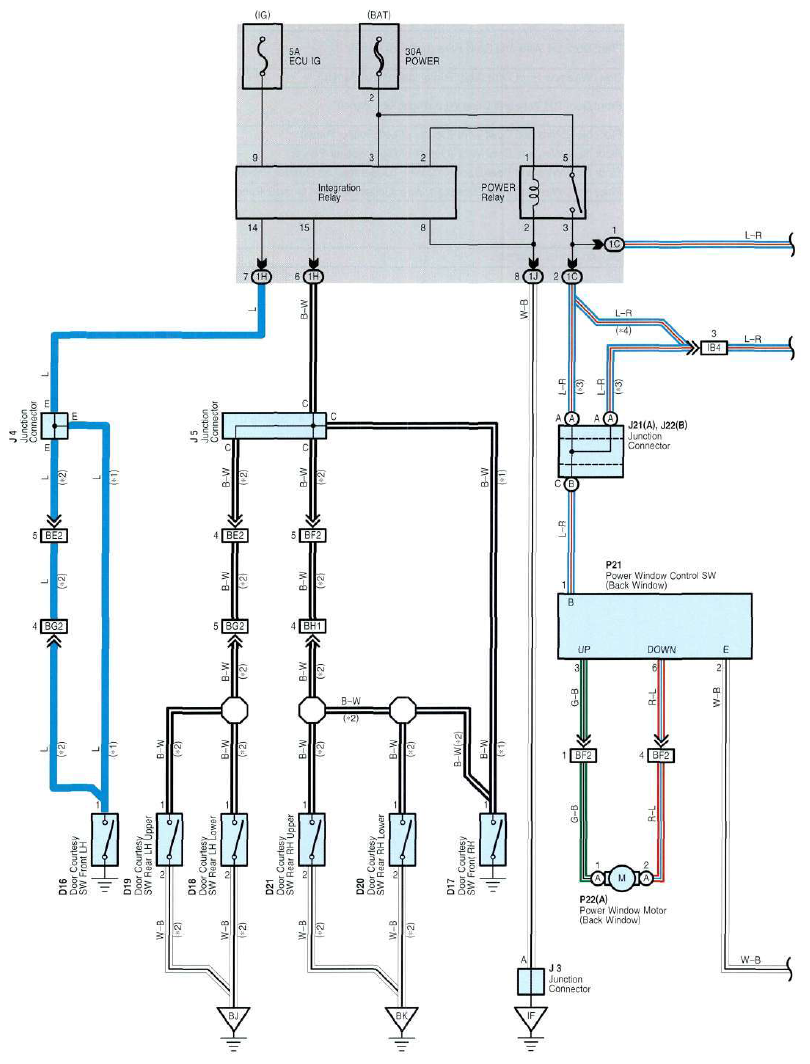

Fig 1: Power Window System Wiring Diagram (Access/Standard Cab; 1 Of 2)
G08864410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

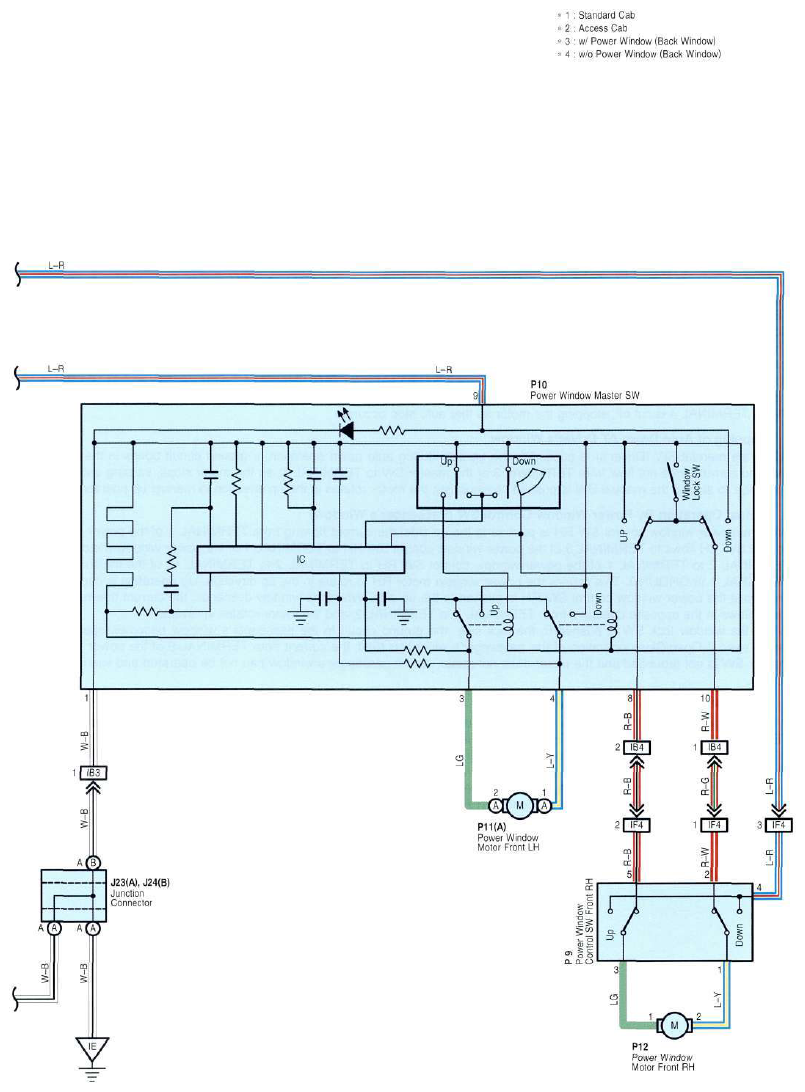

Fig 2: Power Window System Wiring Diagram (Access/Standard Cab; 2 Of 2)
G08864411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
